6
LeeBoy Model 8616 Conveyor Paver 6-23
Operation
6. Lower screed to deck.
7. Shut down engine.
8. Secure paver to transport as directed by
regulations.

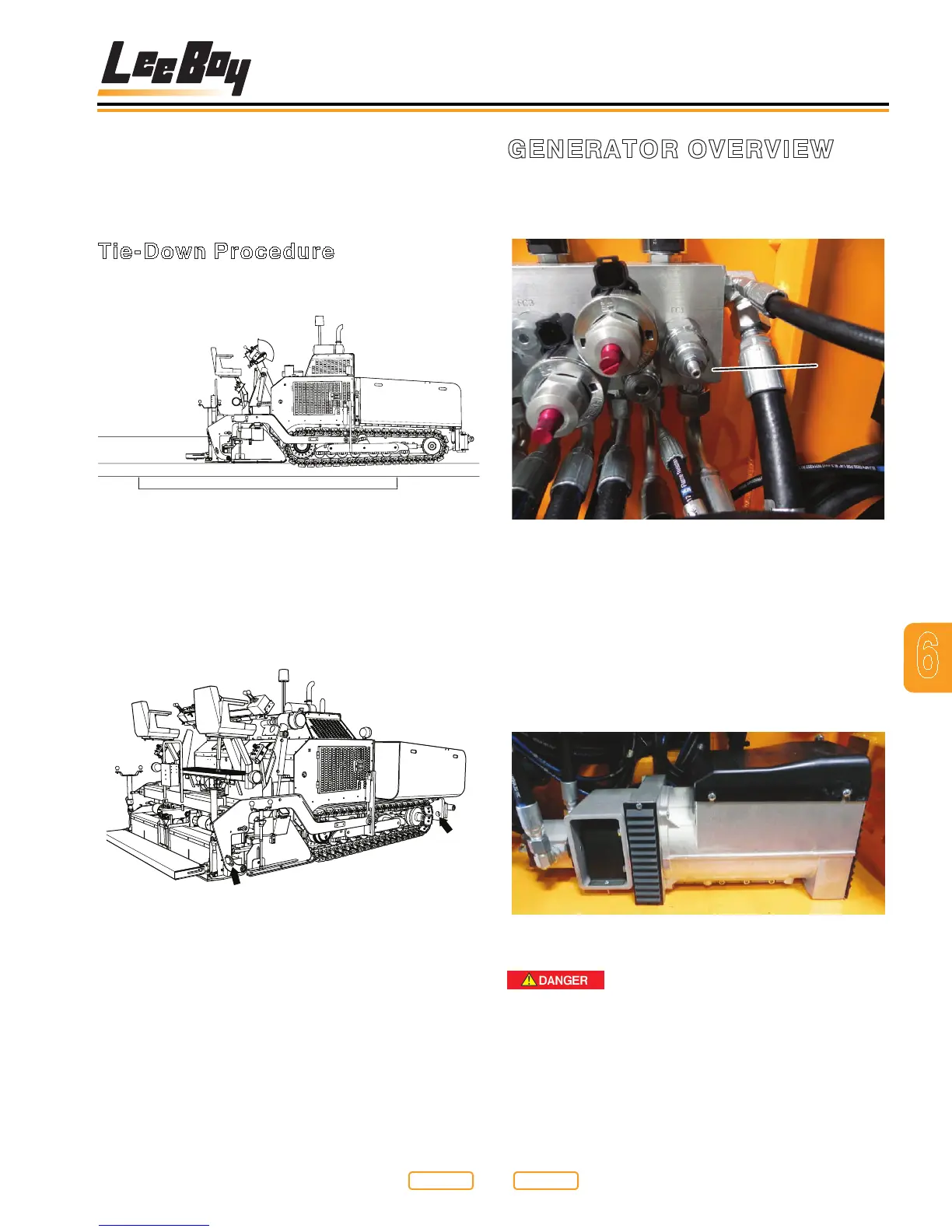

Tie-Down Procedure
1. Position paver on trailer centered from side to side
(Figure 6-24).
Paver On Transport
Figure 6-24
2. Attach tie down chains to the screed end of paver at
the D-rings (Figure 6-25).
3. Place chocks at wheels or tracks.
4. Make sure all chains are tight before moving.
Tie-Down Points
Figure 6-25
Generator Overview
Thenetunespeedadjustment(Figure 6-26,1) is on
the top of the manifold. The generator is provided oil for
operation by a loadsense on the paver engine.
1
Generator Detail
Figure 6-26
1 - Fine Tune Speed Adjust (Dealer Only)
The entire generator is shown here (Figure 6-27). The
power cable to the generator is the cable that runs to
the rear of your paver that supplies power to the screed.
The power cable should be inspected regularly to
ensure that no damage has occurred to the cable during
normal operation.
Generator
Figure 6-27
Electrocution Hazard! Do not operate
a LeeBoy Model 8616 Conveyor Paver that has a
damaged power cable. A damaged power cable
could cause an electrical shock that could result
in serious injury or death. Inspect the power cable
to ensure that no damage has occurred to it before
operating the LeeBoy Model 8616 Conveyor Paver.
