LeeBoy 8616 - Screed Operator Control Box

5-16 LeeBoy Model 8616 Conveyor Paver
Component Location
Screed Operator Control Box
E-STOP
RIGHT
TOW
RIGHT
AUGER
RIGHT
EXTENSION
1007346
RIGHT
SLOPE
NOTE:
IN AUTO DIAL CONTROLS PILE HEIGHT
IN MANUAL DIAL CONTROLS SPEED
AUTO
MANUAL
OFF
0
1
2
3
4
10
9
8
7
6
5
E-STOP
LEFT
TOW
LEFT
AUGER
LEFT
SLOPE
LEFT
EXTENSION
AUTO
MANUAL
OFF
1007345
NOTE:
IN AUTO DIAL CONTROLS PILE HEIGHT
IN MANUAL DIAL CONTROLS SPEED
0
1
2
3
4
10
9
8
7
6
5
5
4
6
4
5
3
1
7
2
13
11
12
10
8
9
14

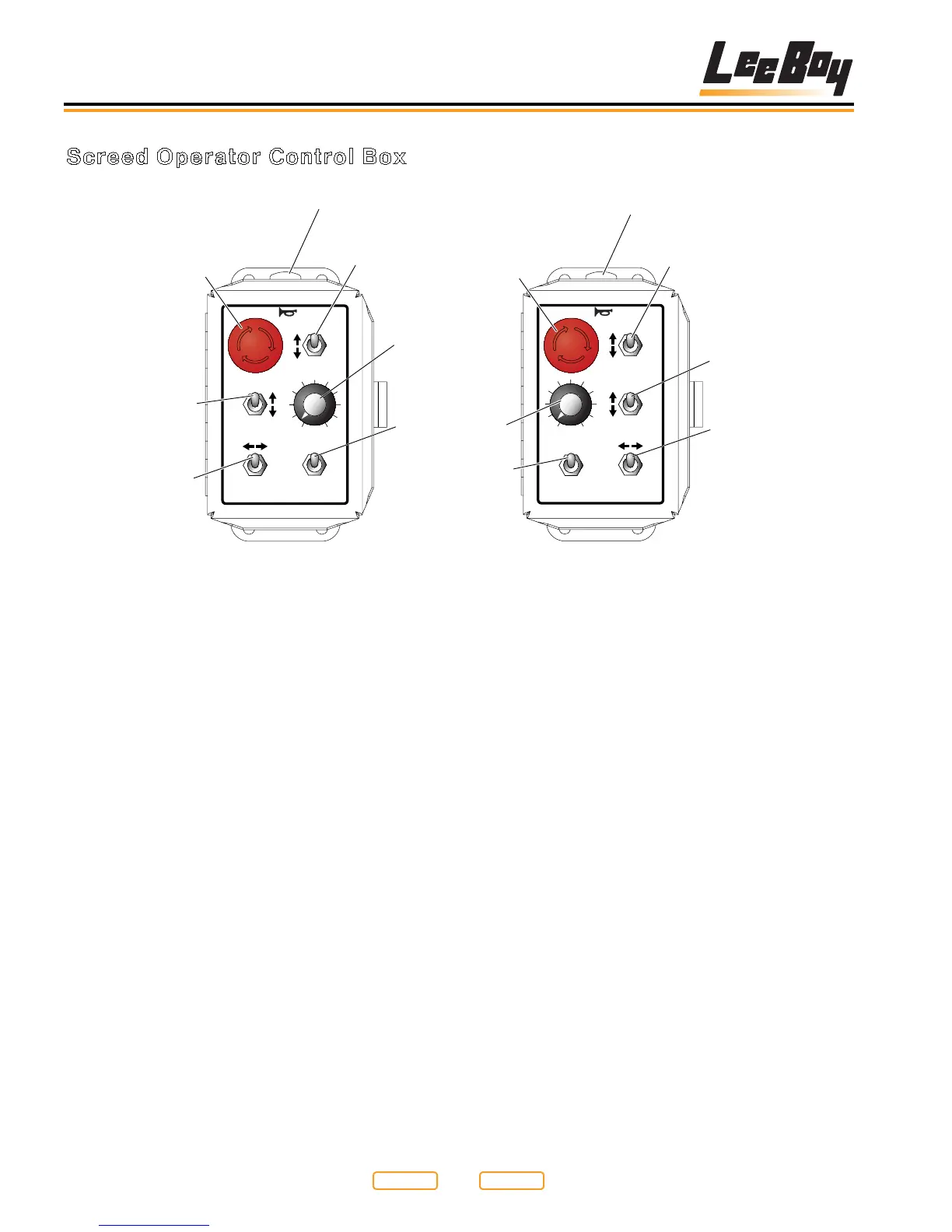

Left and Right Screed Operator Control Boxes
Figure 5-6
1 - Left Slope Raise/Lower
2 – Left Auger Dial
3 – Left Auger Auto/Off/Manual Switch
4 - Left Extension In/Out
5 – Left Tow Up/Down
6 – Left E-Stop Button
7 - Horn (Located in Front)
8 - Right Slope Raise/Lower
9 – Right Tow Up/Down
10 - Right Extension In/Out
11 - Right Auger Auto/Off/Manual Switch
12 - Right Auger Dial
13 - Right E-Stop Button
14 - Horn (Located in Front)
