7
LeeBoy Model 8616 Conveyor Paver 7-31
Maintenance
Replacing Screed Extension
Wear Plates
Removal
1. Run extension out fully.
2. Remove endgate by disconnecting tilt screw and
loosen the 7/8” jam nut.
3. Remove nut.
4. Remove two 3/8” bolts from endgate bracket.
5. Slide endgate off of stud.

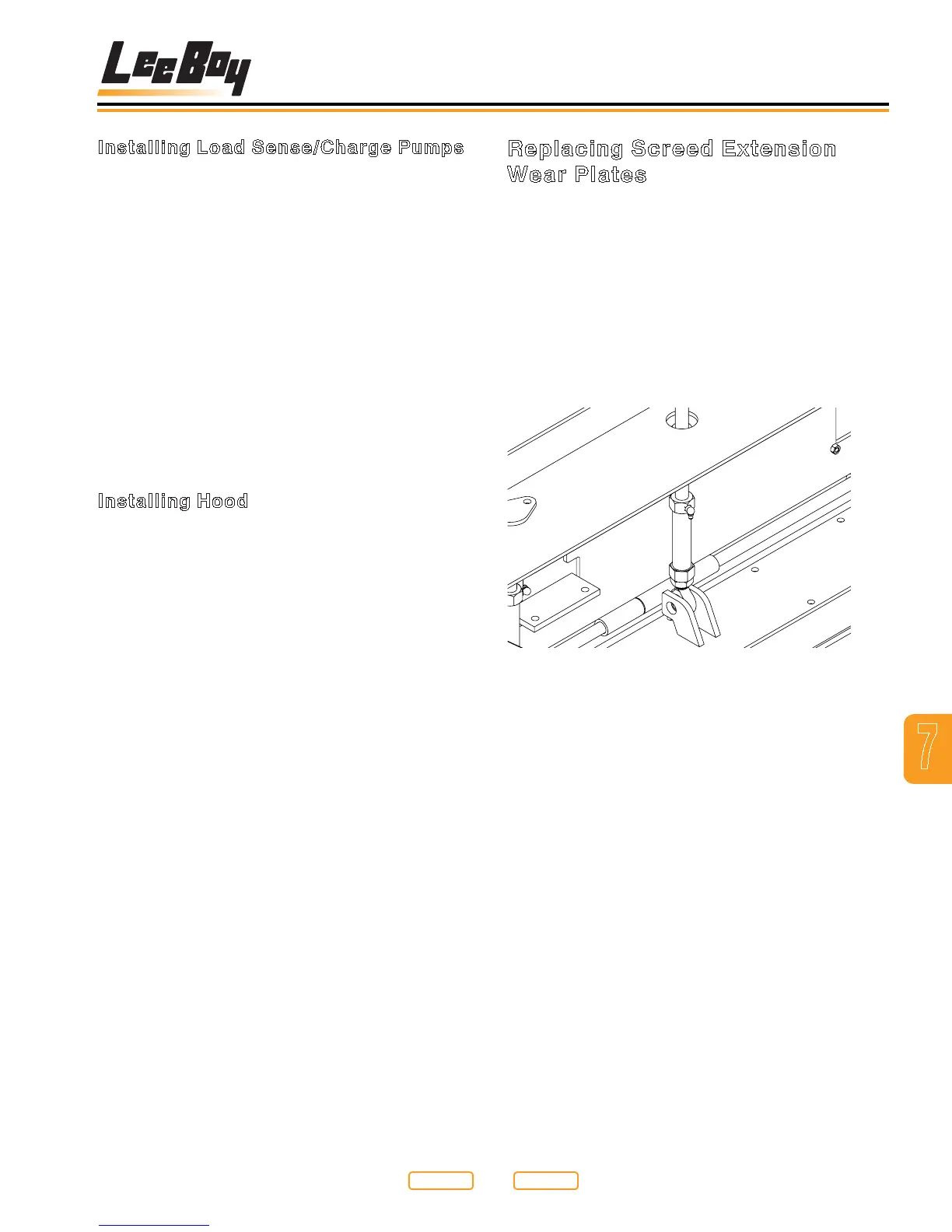

Wear Plate Anchor Bolts
Figure 7-20
6. Remove bolt out of angle of attack adjuster on top of
wear plate (Figure 7-20).
Installing Load Sense/Charge Pumps
1. Check O-rings and place charge pump into main
pumps.
2. Torque bolts to specication in manual.
3. Connect all wires to proper locations as
marked.
4. Be sure hoses and ttings are clean then
reconnect all hoses.
5. When all hoses are connected, turn all valves
back on.
NOTE: Before starting engine and checking for leaks,
drive and conveyor pumps must be charged with
oil to prevent damage from dry startup.
6. Fill oil tank through the charge lter ll port. This
will charge pumps back with oil.
Installing Hood
1. Lift hood into position then bolt hood back onto
paver.
2. Connect lights and beacon wires.
3. Connect air breather to turbo and tighten.
4. Start engine and let run for about 10 minutes before
moving the paver. This will prevent damage to the
new pump due to a dry start.
5. After completing installation, check hydraulic oil
level.
