LeeBoy LB Performance CB95 - Machine Overview

MACHINE OVERVIEW
1
2
3
4
5
6
7
9
8

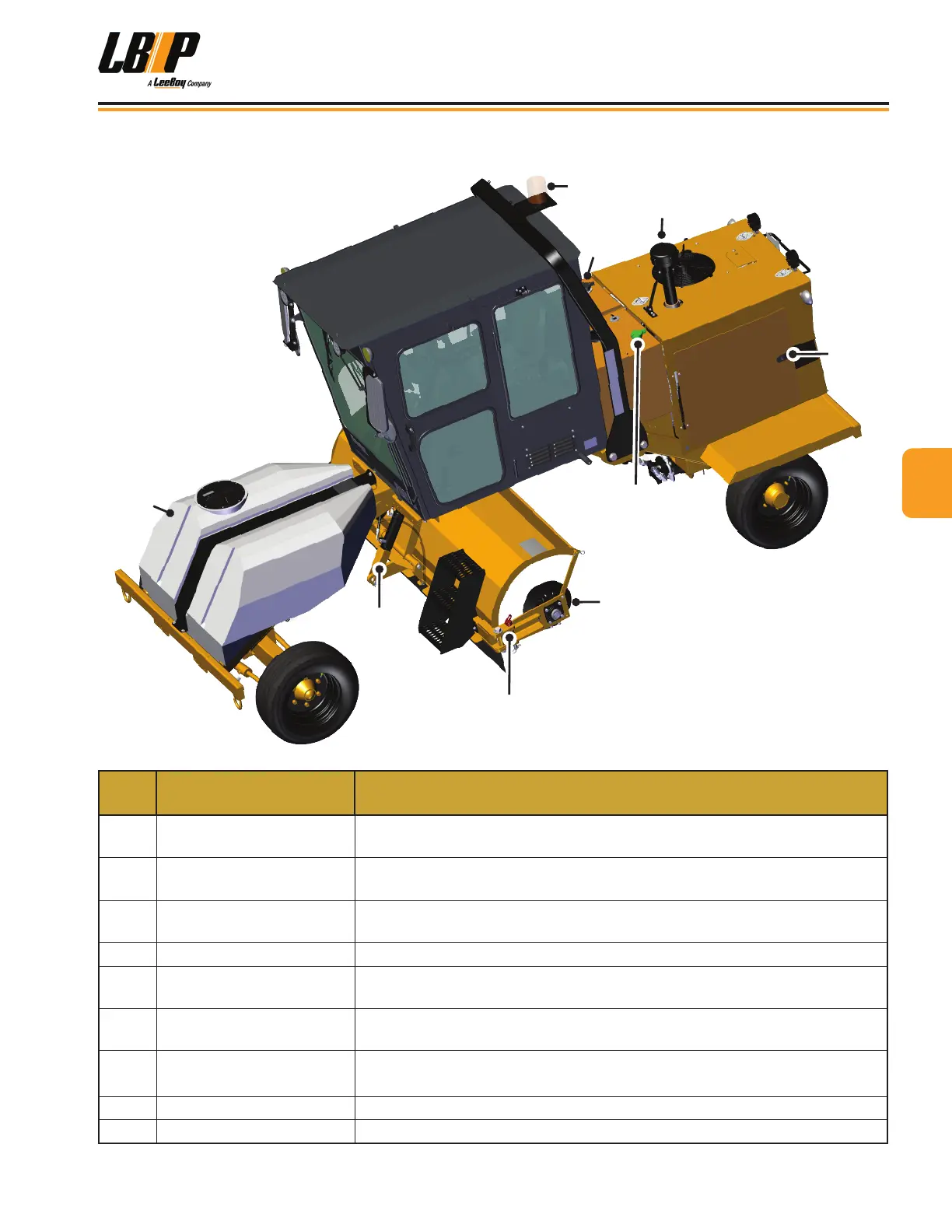

Figure 3-1. Machine Overview
ITEM
NO.
COMPONENT NAME FUNCTION
1 Water Tank (Option)
Water tank mounted on front of machine if equipped with optional Dust Sup-
pression System. Holds 150 gallons.
2 Beacon Light
Flashing beacon light for added safety to alert trafc of broom operation. The
beacon light is removable.
3 Hydraulic Oil Filler Cap
Hydraulic oil ller cap contains strainer to prevent debris from entering
system when lling hydraulic tank.
4 Air Intake Stack Rotary pre-cleaner.
5 Brush Lock Arm
Manual lock arm for locking brush into place (position shown) during travel
and transport.
6 Brush Core Lock/Release
Lock pin releases and locks brush core into place when changing brush. No
tools are required to change brush.
7 Brush
Angles 45 degrees right or left. 32-inch steel brush tube with many different
bristle options.
8 Fuel Filler Cap Fill using only ULSD (Ultra-Low Sulfur Diesel) fuel.
9 Engine Access Panel Locking panel to access engine (on each side of the machine).
33
Component Location
LB Performance CB95 Broom 3-5
