DUST SUPPRESSION SYSTEM
(OPTION)
Clean the water system strainer after each use. Simply
unscrew the strainer from its mount under the water tank
at the rear of the vehicle, clean, and reinsert. Remove
the drain plug to drain the water tank. (Figure 5-24)
Strainer
Drain
Plug

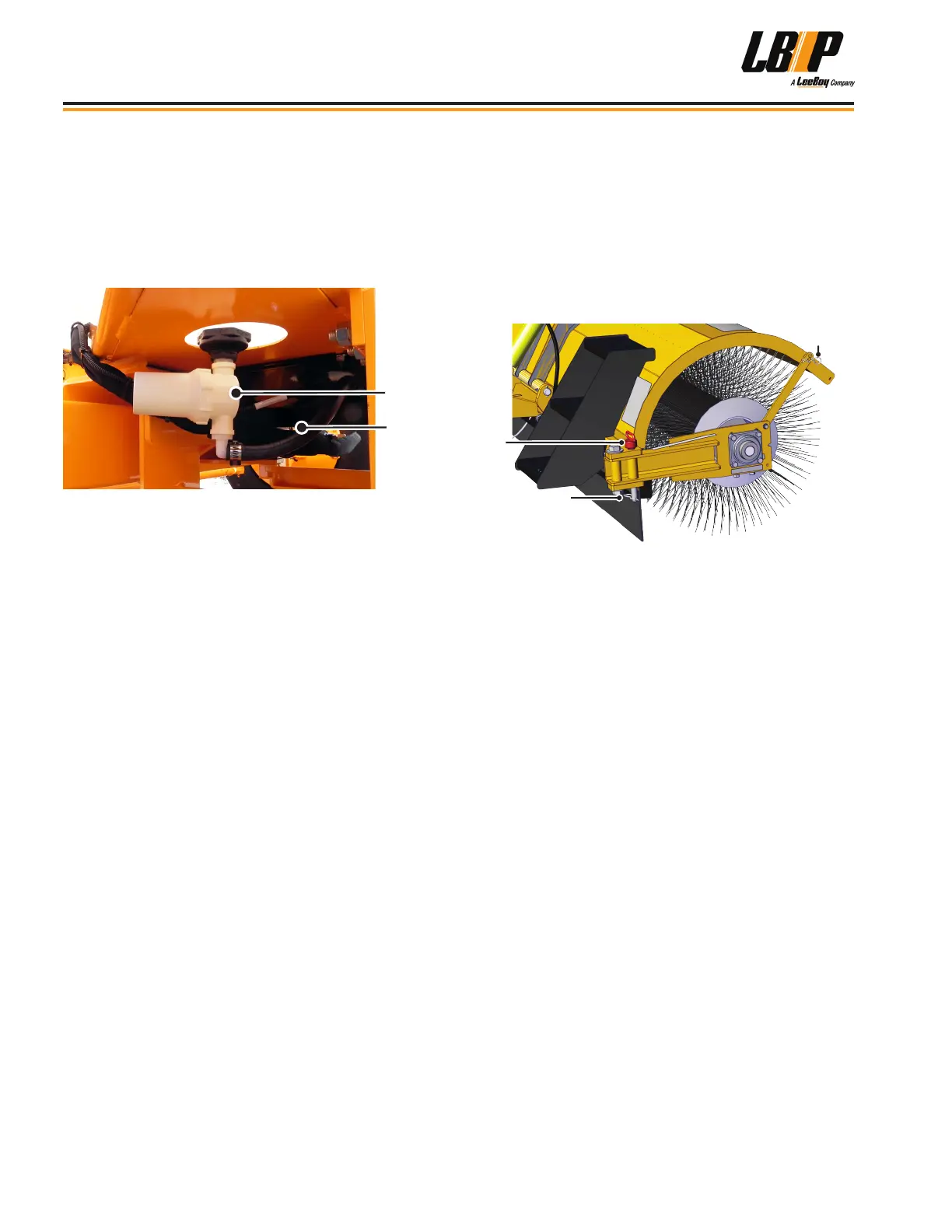

Figure 5-24. Water Strainer and Drain Plug
Inspect the brush water nozzles daily to ensure they
are free from clogs and operating properly. If a nozzle
becomes clogged:
1. Remove the nozzle by unscrewing it from the spray
bar.
2. Clean the nozzle slots, being careful not to damage
the nozzle opening as the spray pattern will be
adversely affected.
3. Reinsert or replace the nozzle if needed.
4. If the nozzle is still clogged or not spraying properly,
contact your authorized LB Performance dealer for
a replacement nozzle(s).
• Flush the spray bar line and nozzles at the end
of each operating season (or more often for
extended use).
• Ensure the water tank, strainer, pump and all lines
are completely drained to prevent damage from
freezing if storing broom in temperatures below
freezing.
COMPONENT REPLACEMENT
Change Brush CoreChange Brush Core
1. Park broom on at surface, place machine in neutral,
turn off the engine and set park brake.
2. Remove both cotter pins from brush cover. (Figure
5-25)
Swing
Arm
Pin
Cotter Pin
Cotter
Pin
Figure 5-25. Brush Core Pins
3. Remove the swing arm pin.
4. Pull the brush core away from the drive hub and
slide out. Set aside.
5. Check hub on both sides for damage. (Consult your
authorized dealer if any damage is noted.)
6. Grease the U-Joint on the idle hub.
7. Slide new brush onto the slotted drive hub ensuring
the key stock inside the brush core goes onto the
drive hub side.
8. Align the idle hub with the smooth end of the brush
core and push the swing arm back into position into
the brush core, keeping hands away from pinch
points. Carefully guide the hub by hand if necessary
to start into the core center.
NOTE: Brush carriage may need to be raised
slightly to install a new core if the old brush
core was worn.
9. Once the idle hub is fully engaged, reinsert the
swing arm pin.
10. Reinsert swing arm pin and cotter pins on brush
cover.
