LeeBoy LB Performance CB95 - Hydraulic Pump and Motor; Change Hydraulic Oil Strainer

55
Maintenance
LB Performance CB95 Broom 5-19
5. Unscrew hydraulic oil lter and remove. (Figure
5-16)
Filter
Filter
Head

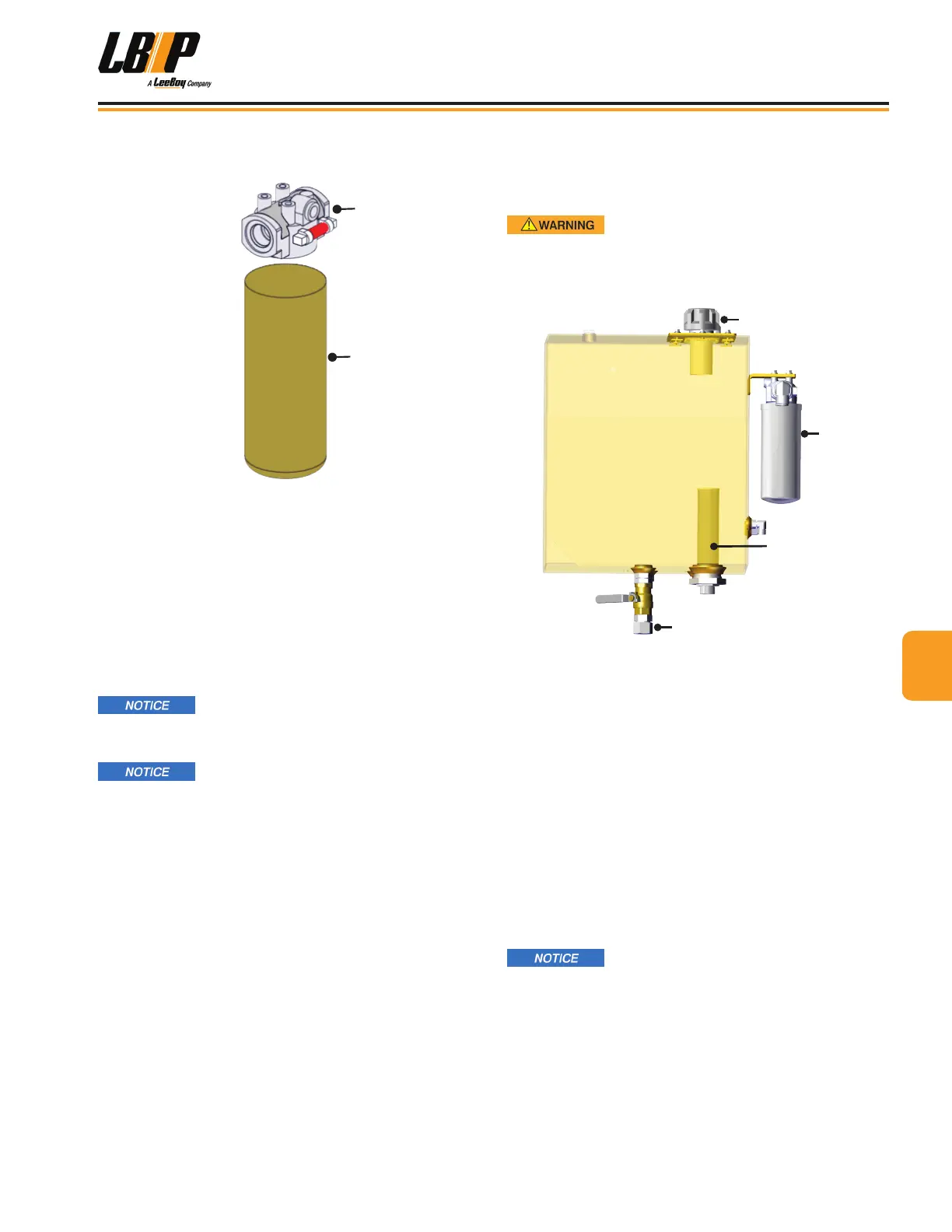

Figure 5-16. Hydraulic Oil Filter Components
6. Discard lter properly in accordance with
government environmental regulations.
7. Reinstall new hydraulic oil lter.
8. Carefully remove the cloth from the hydraulic oil
reservoir ll tube opening.
9. Rell the hydraulic oil reservoir (recommend Citgo
All Weather/All Temperature Multiviscosity hydraulic
oil).
DO NOT ll the hydraulic oil reservoir
with new hydraulic oil until the suction strainer has
been cleaned. (See next section.)
DO NOT overll the hydraulic oil
reservoir with oil.
10. Check the oil level at the sight gauge and add more
if needed.
11. Replace the hydraulic oil ll strainer cap onto the
reservoir ller neck and tighten securely.
12. Start the engine and operate hydraulic controls
several times.
13. Check the hydraulic system for any leaks.
Hydraulic Pump and MotorHydraulic Pump and Motor
The hydraulic pump and motor generally require no
regularly scheduled maintenance. Frequent inspection
for leaks will indicate the need for service of these com-
ponents. See your authorized LB Performance dealer
for service if needed.
Change Hydraulic Oil StrainerChange Hydraulic Oil Strainer
The oil strainer is mounted in the hydraulic oil ller
opening under the ller cap. (Figure 5-17)
DO NOT remove the hydraulic ller
cap from the reservoir when it is hot as this can
cause serious injury. Allow hydraulic oil to cool down
to a warm temperature.
Hydraulic Cap
Filter
Suction
Strainer
Drain Plug
Figure 5-17. Hydraulic Suction Strainer
To change the hydraulic oil strainer:
1. Remove the hydraulic oil ller cap.
2. Remove the six (6) screws securing the strainer,
then remove the strainer and gasket.
3. Install a new gasket, aligning the six screw holes in
the gasket with the mounting holes on the reservoir.
4. Install the new strainer, aligning the holes in the
strainer with the mounting holes of the gasket and
secure the strainer with the six screws.
5. Fill the hydraulic oil reservoir with (recommend
Citgo All Weather/All Temperature Multiviscosity
hydraulic oil).
DO NOT overll the hydraulic oil
reservoir with oil.
6. Check the oil level in the hydraulic oil reservoir. Add
oil if needed.
7. Reinstall the hydraulic oil ller cap and tighten
securely.
