X75HD Installation and Operation Manual 187
Appendix C: Servicing Instructions
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
5. Return the module to its upright position, and then align it with the
installed standoffs on the main board.
There are two standoffs on the back of the main board, and one in
the middle. The standoff in the back left corner is higher than the
others in order to assist with alignment. See Figure C-4 and
Figure C-5 on page 187.

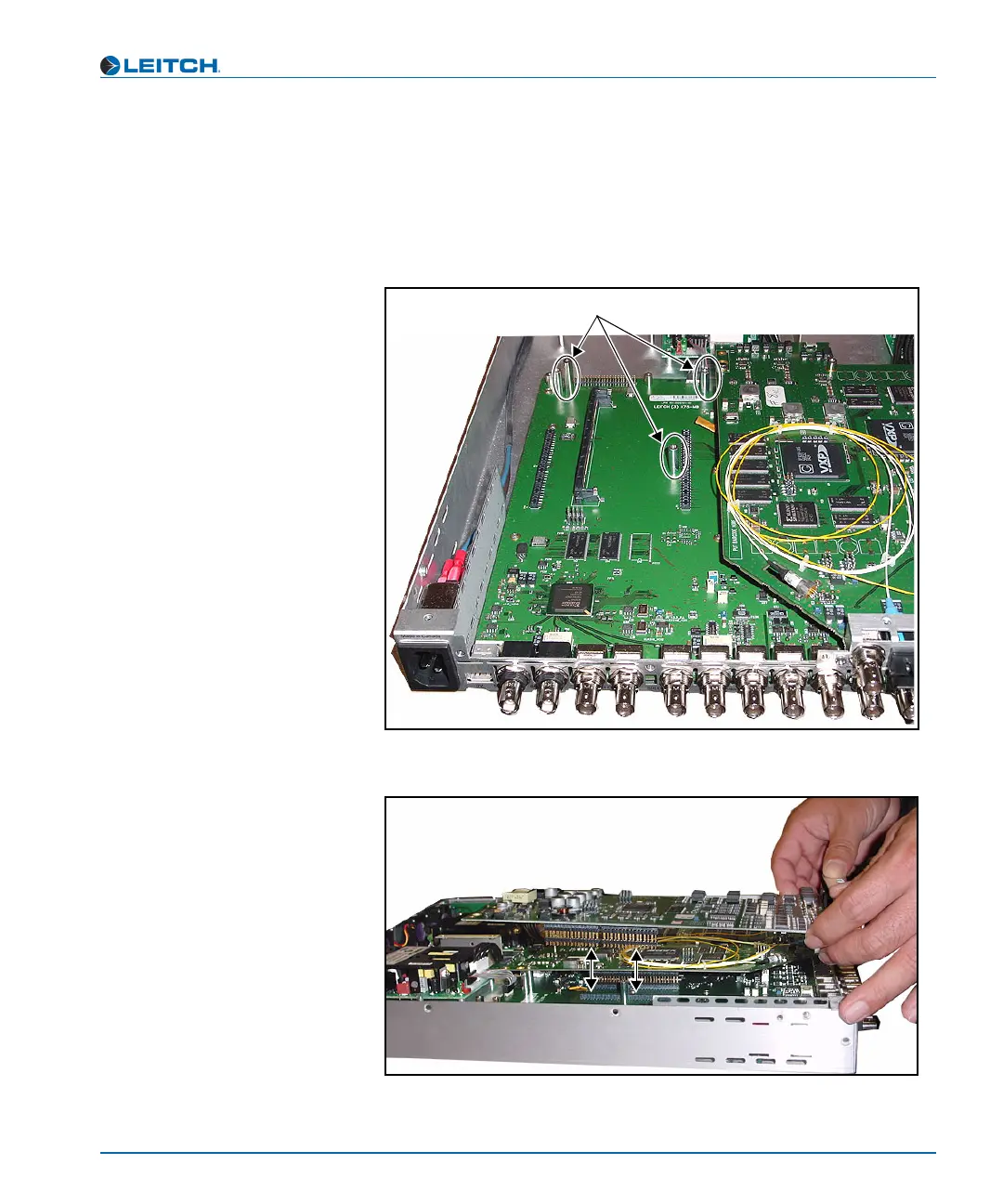

Figure C-4. Locating Main Board Standoffs
Figure C-5. Positioning Module over Standoffs
Locating the standoffs on the main board
Positioning the module over the main board
Align stackers with corresponding connectors
on the main board
