X75HD Installation and Operation Manual 55
Chapter 4: System Installation and Connections
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.

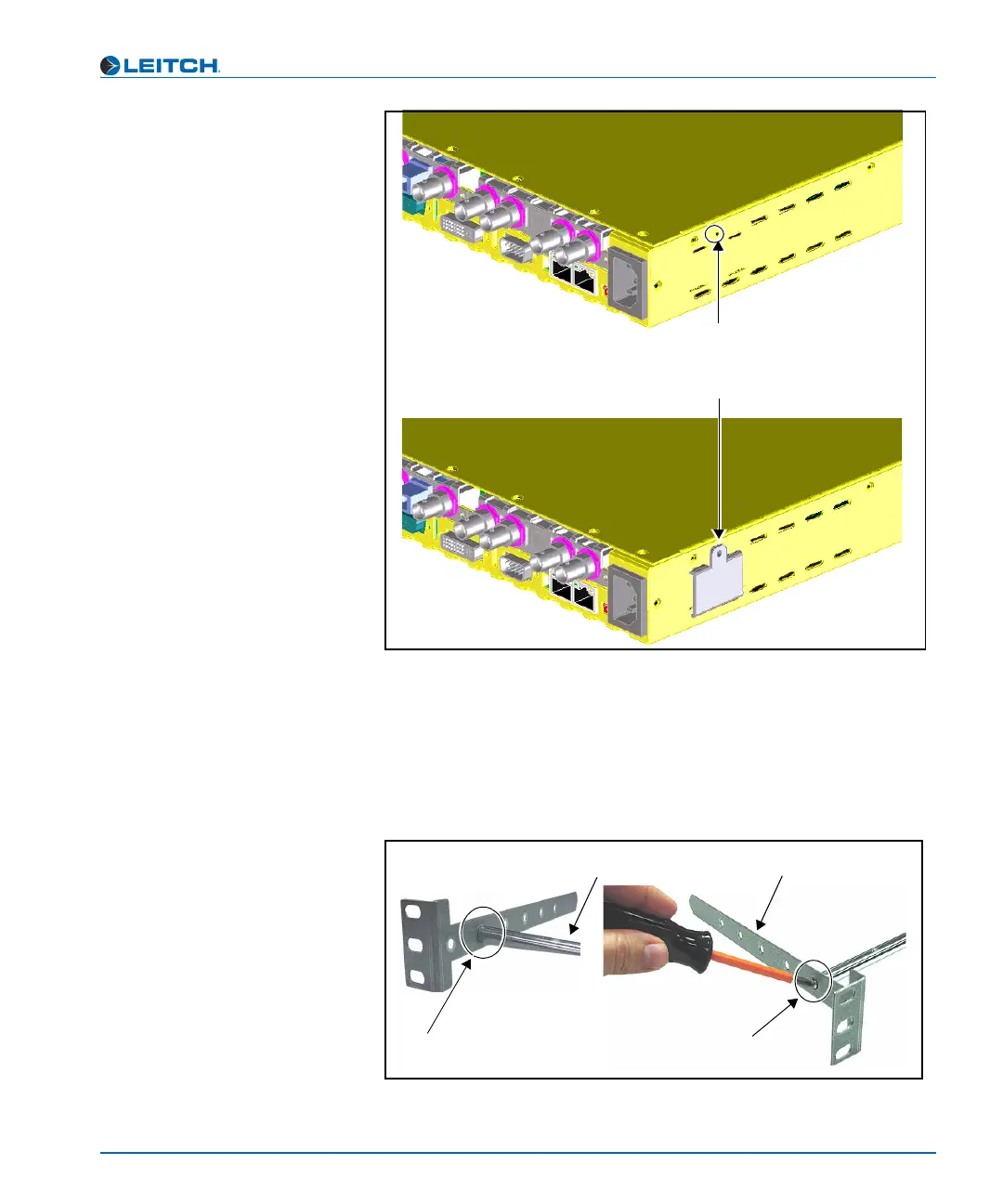

Figure 4-2. Location of Short Bracket Support Screw
3. Attach the cable relief bar between the long rack support brackets
using the provided screws.
You can secure the cable relief bar through any of the screw holes
on the rack support bracket. (See Figure 4-3.)
Figure 4-3. Installed Cable Relief Bar
Installing short rack support bracket
Remove this screw from the frame,
place short bracket over hole, and then
secure bracket to frame with screw
Secure the cable relief bar to the long rack support
bracket through any of the bracket’s screw holes
Inside view
(between support
brackets)
Outside view
Long rack
support bracket
Cable relief bar
