Design and functions
Power Analyzer NORMA 4000, NORMA 5000 9
EO1111G REV G

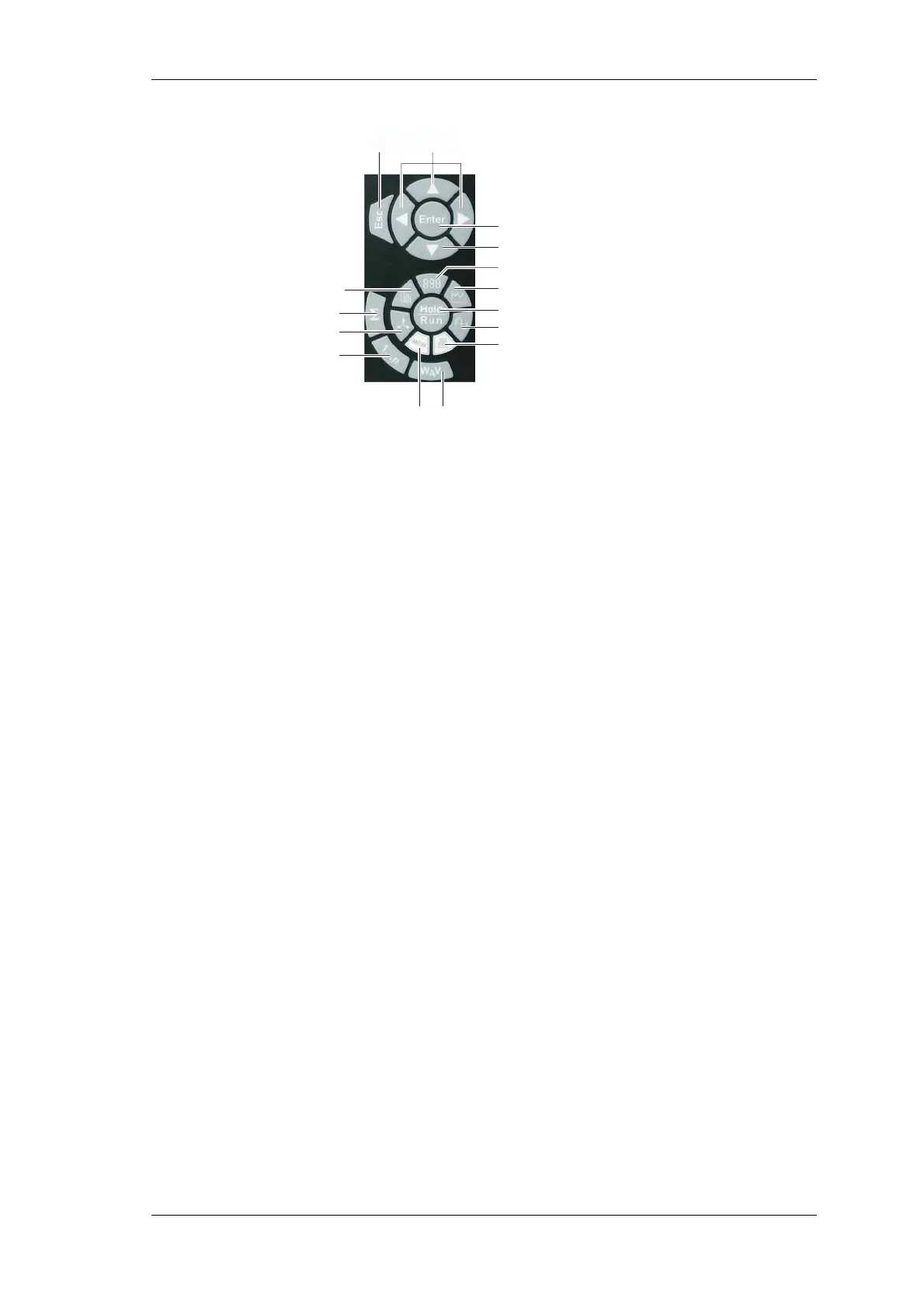

26 27
25
24
23
22
14
27
15
16
17
18
19
21 20
14 Enter: confirm; call up menu
15 Numerical display
16 Recorder
17 Hold/Run: start/stop measurement
18 Oscilloscope diagrams
19 Print
20 Show power, current, voltage
21 Save
22 Select channel
23 Vector display
24 Show totals of all channels
25 Frequency analysis
26 Esc: cancel, up one menu level
27 Cursor keys: up/down; left/right
Use the navigation keys (6, page 8) and (27) to navigate through
the display and the menus.
The active menu item, display or entry field in which your cursor is
located is backlit.
Press Esc (26) to cancel an entry without saving or to go to the
next higher menu level.
Press Enter (14) to call up a menu or to confirm an entry made in a
menu.
Press the measuring keys (7, page 8) and (15) to (25) to select the
display mode and the saving/output functions for measured values.
The assignment of the function keys (9, page 8) varies, depending
on the current menu. The current key assignment is shown on the
assignment bar (10, page 8) located above the function keys.
Navigation and
measuring keys
Navigation
through display
