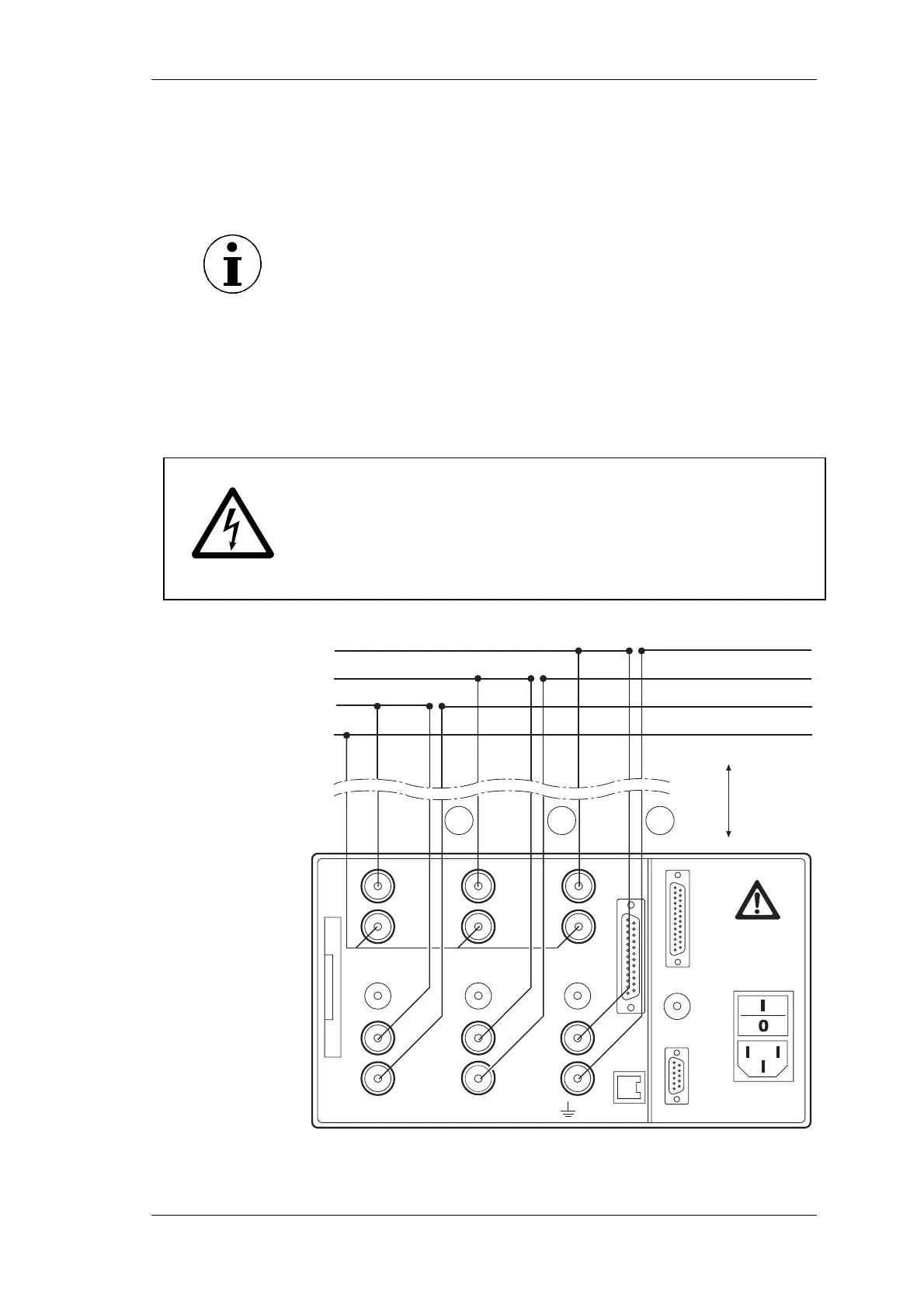

5.5 3-phase measurement in 4-wire system
5.5.1 Direct connection
Note
3-phase measurements in 3-wire systems are only possible via a
star point adapter (creates neutral point) plugged into the voltage
inputs.
 Ensure that there is no overload at the current input of the
power analyzer.
 If there is a potential risk of overload at the current input,
incorporate a shunt or transducer into the circuit.
 If necessary, install appropriate fuses.
Fehler! AutoText-Eintrag nicht definiert.
Danger! Risk of electrocution!
Risk of injury when touching connections, internal circuits and
measuring devices that are not earthed.
 Always adhere to the instructions regarding the sequence of
connection (see page 12).
L2
max. 10 m
L1
L3
I
1
I
2
N
I
3
1
HI
CURRENT
LO
10 A max
PROBE
EXT.SHUNT
10 V max
HI
VOLTAGE
LO
1000 V max
2
HI
CURRENT
LO
10 A max
PROBE
EXT.SHUNT
10 V max
HI
VOLTAGE
LO
1000 V max
3
ALL INPUTS MAX 1000V CATII TO
