LEM NORMA 5000 - PI1 Technical Data

PI1 Process Interface (optional)
Power Analyzer NORMA 4000, NORMA 5000 61
EO1111G REV G
9.4 Measuring with PI1
Torque, rotational speed and mechanical power are measured in
real-time and averaged. They are combined with the measured
electrical values so that slip and mechanical efficiency can be
calculated.
 The device must be equipped with a PI1 process interface
 Menu item PI must be shown in the menu bar
If the analyzer is equipped with a process interface, menu item PI
is shown automatically in the menu.

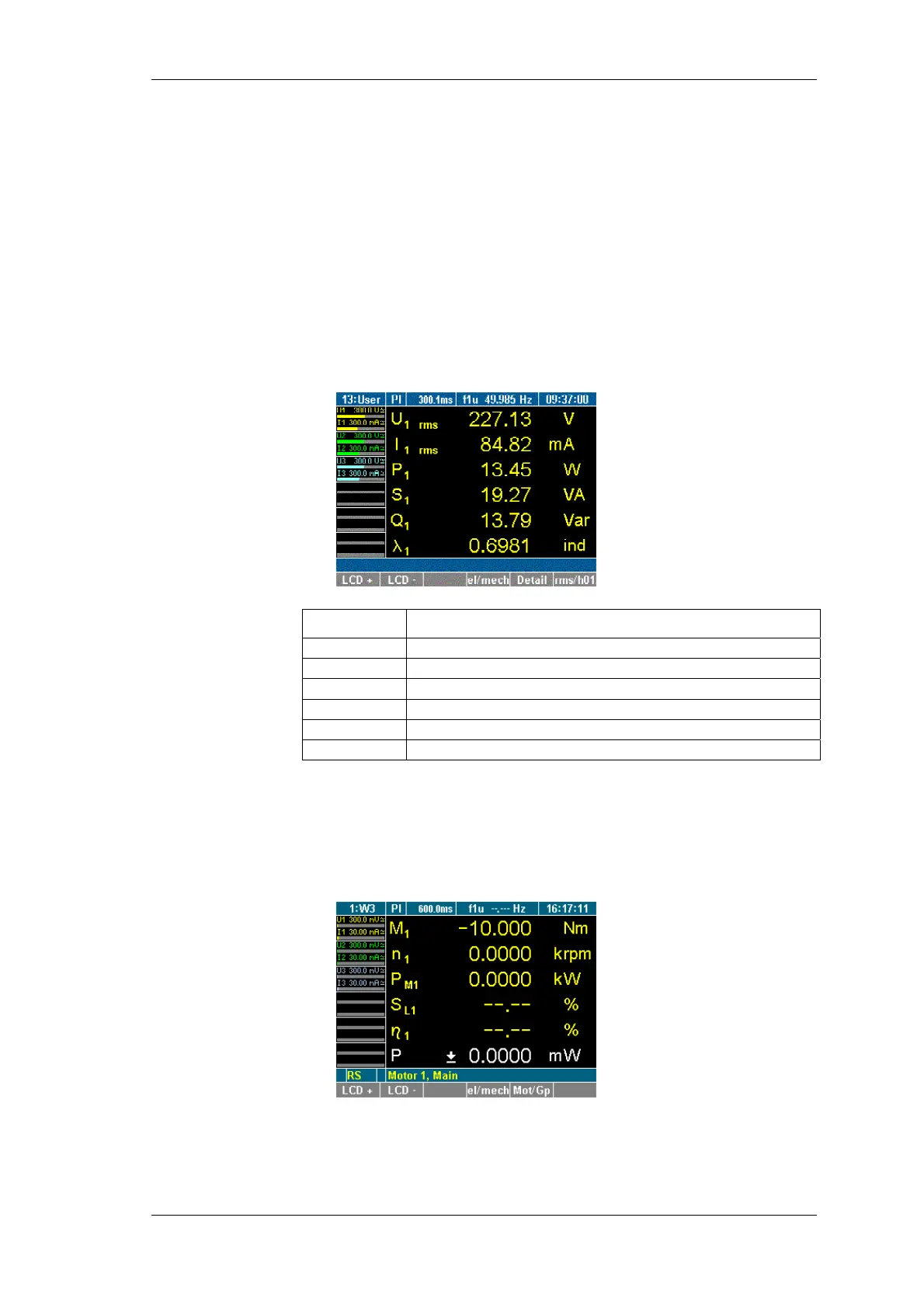

 Press the measuring key for numerical display.
The measured values of channel 1 are shown.
Display Description
U
1 rms
rms voltage value
I
1 rms
rms current value
P
1
Real power
S
1
Apparent power
Q
1
Idle power
λ
1
Power factor
 Press measuring keys 1...n to view the values of the respective
channels.
 Press function key el/mech.
The measured values of motor 1 are shown.
 Press measuring keys 1...n to view the values of the respective
inputs.
V
iew measured
electric values
V
iew mechanical
values
