PI1 Process Interface (optional)
62 Power Analyzer NORMA 4000, NORMA 5000
EO1111G REV G
Display Description
M
1
Torque of motor 1
n
1
Speed of motor 1
P
M1
Mechanical power of motor 1
S
L1
Slip of motor 1
η
1
Efficiency of motor 1
P
Electrical reference power, depending on
configuration

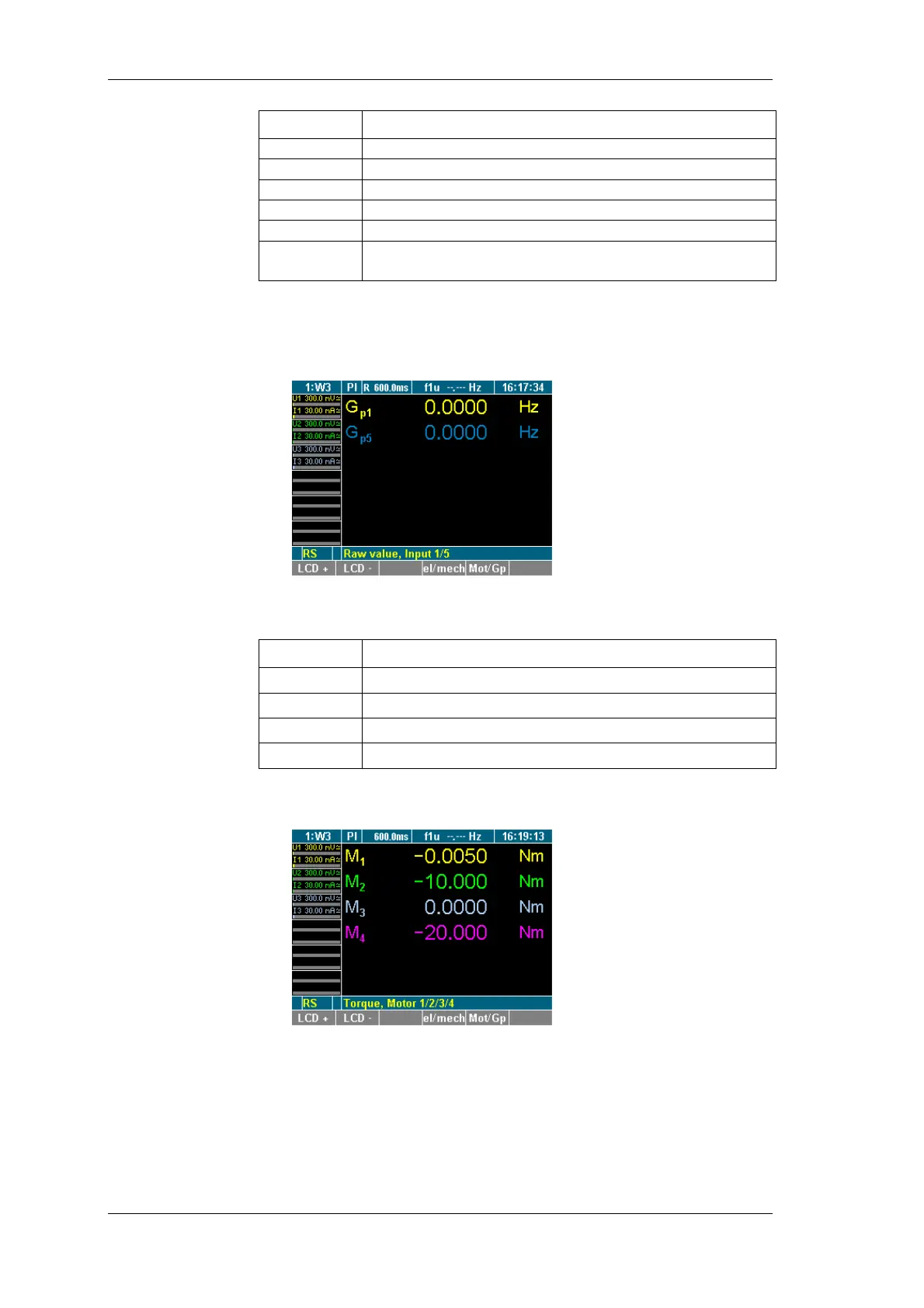

Raw values are unscaled values measured in a channel.
 Press function key Mot/Gp.
The measured value of motor 1 is shown.
 Press measuring keys 1...n to view the values of the respective
inputs.
Display Description
Gp1
Torque of motor 1
Gp2 ...
Torque of motor 2
Gp5
Speed of motor 1
Gp6 ...
Speed of motor 2
 Press measuring key WAV.
The torques of motors 1 to 4 are shown.
 Press key WAV again.
The rotational speeds of motors 1 to 4 are shown.
V
iew raw values
V
iew all torques
V
iew all speeds
