LEM NORMA 5000 - 1-Phase Measurement; Direct Connection

Connection to Circuits
Power Analyzer NORMA 4000, NORMA 5000 13
EO1111G REV G

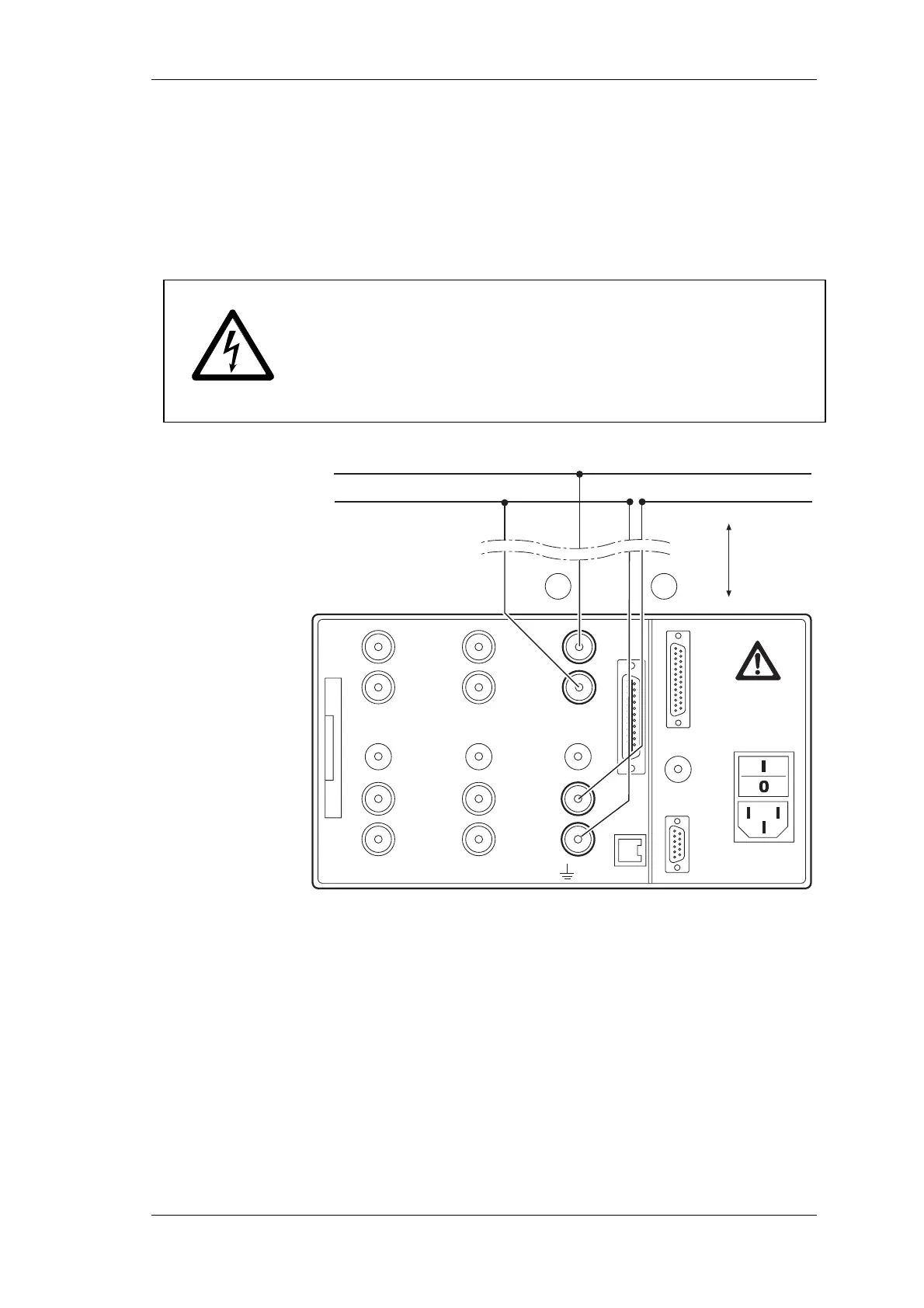

5.3 1-phase measurement
5.3.1 Direct connection
 Ensure that there is no overload at the current input of the
power analyzer.
 If necessary, install appropriate fuses.
Fehler! AutoText-Eintrag nicht definiert.
Danger! Risk of electrocution!
Risk of injury when touching connections, internal circuits and
measuring devices that are not earthed.
 Always adhere to the instructions regarding the sequence of
connection (see page 12).
1
HI
CURRENT
LO
10 A max
PROBE
EXT.SHUNT
10 V max
HI
VOLTAGE
LO
1000 V max
2
HI
CURRENT
LO
10 A max
PROBE
EXT.SHUNT
10 V max
HI
VOLTAGE
LO
1000 V max
3
ALL INPUTS MAX 1000V CATII TO
N
L1
max. 10 m
U
I
