Figure100.Releasethebezel
Ifyouareinstructedtoreturntheservercomponentoroptionaldevice,followallpackaginginstructions,
anduseanypackagingmaterialsforshippingthataresuppliedtoyou.
Installingthebezel
Usethisinformationtoinstallthebezel.
Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage35.
Ifyouarereplacingaservercomponentintheserver,youneedtoturnofftheserverandperipheraldevices,
anddisconnectthepowercordsandallexternalcables.
Toinstallthebezel,completethefollowingsteps.
Step1.Unlocktheleft-sidecover,usingthekeythatcomeswiththeserver.
Note:Youmustunlocktheleft-sidecovertoopenorremovethebezel.Whenyoulocktheleft-side
cover,itlocksboththecoverandthebezel.

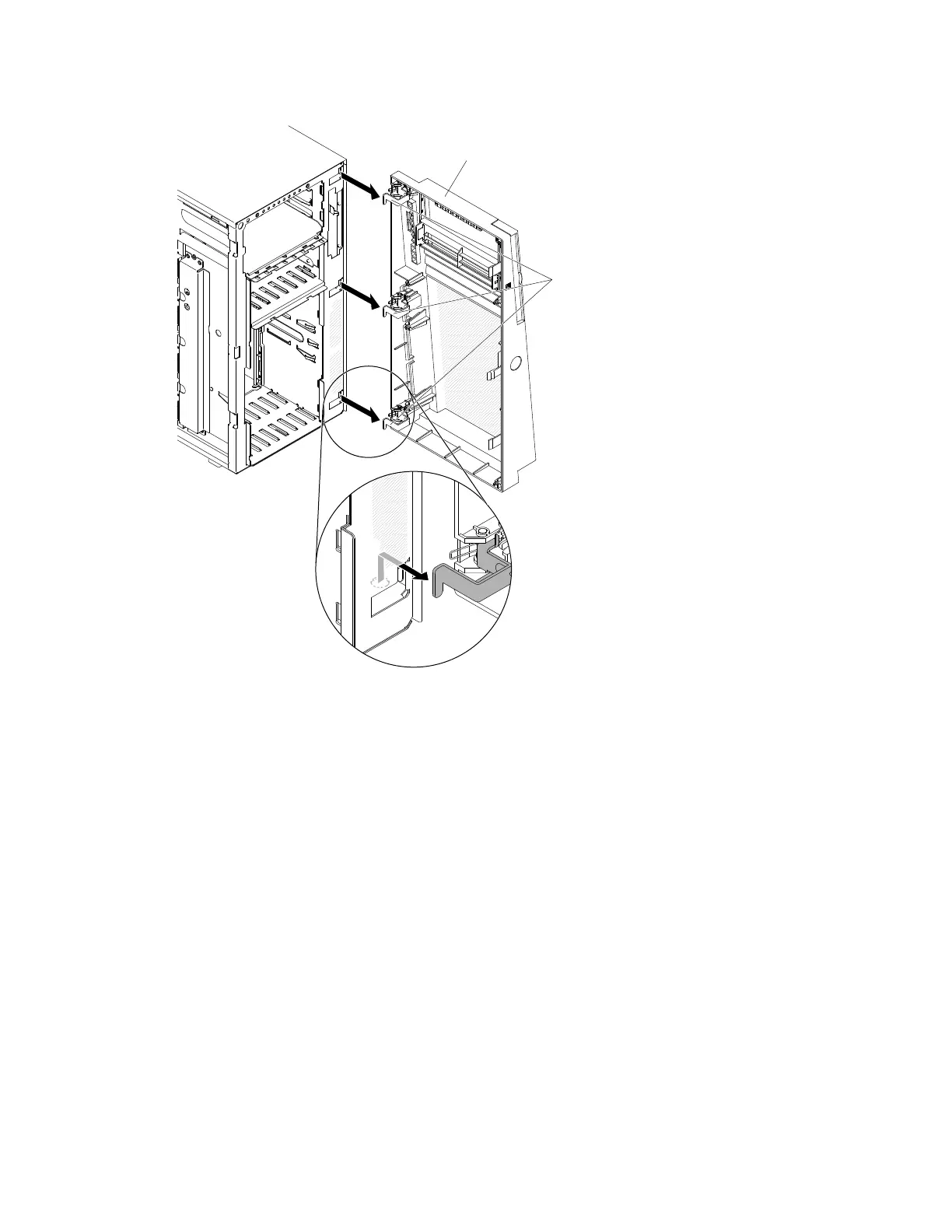

Step2.Alignthehingeassemblieswiththehingeholesonthechassis.
Step3.Pushthehingesintotheholesdownwardonthechassisuntiltheysnapintoplace.
Chapter6.Removingandreplacingcomponents187
