•Ifyouarereplacinganopticaldrive,disconnectthesignalcableandthepowercablefromtherearof
theopticaldrive.Pressthereleasebutton1inthedirectionasshownandpushtheopticaldrive
fromtherearuntilitisprojectedfromthefrontofthechassis.Then,holdtheopticaldrivefromthe
frontandcompletelyslideitoutofthechassis.

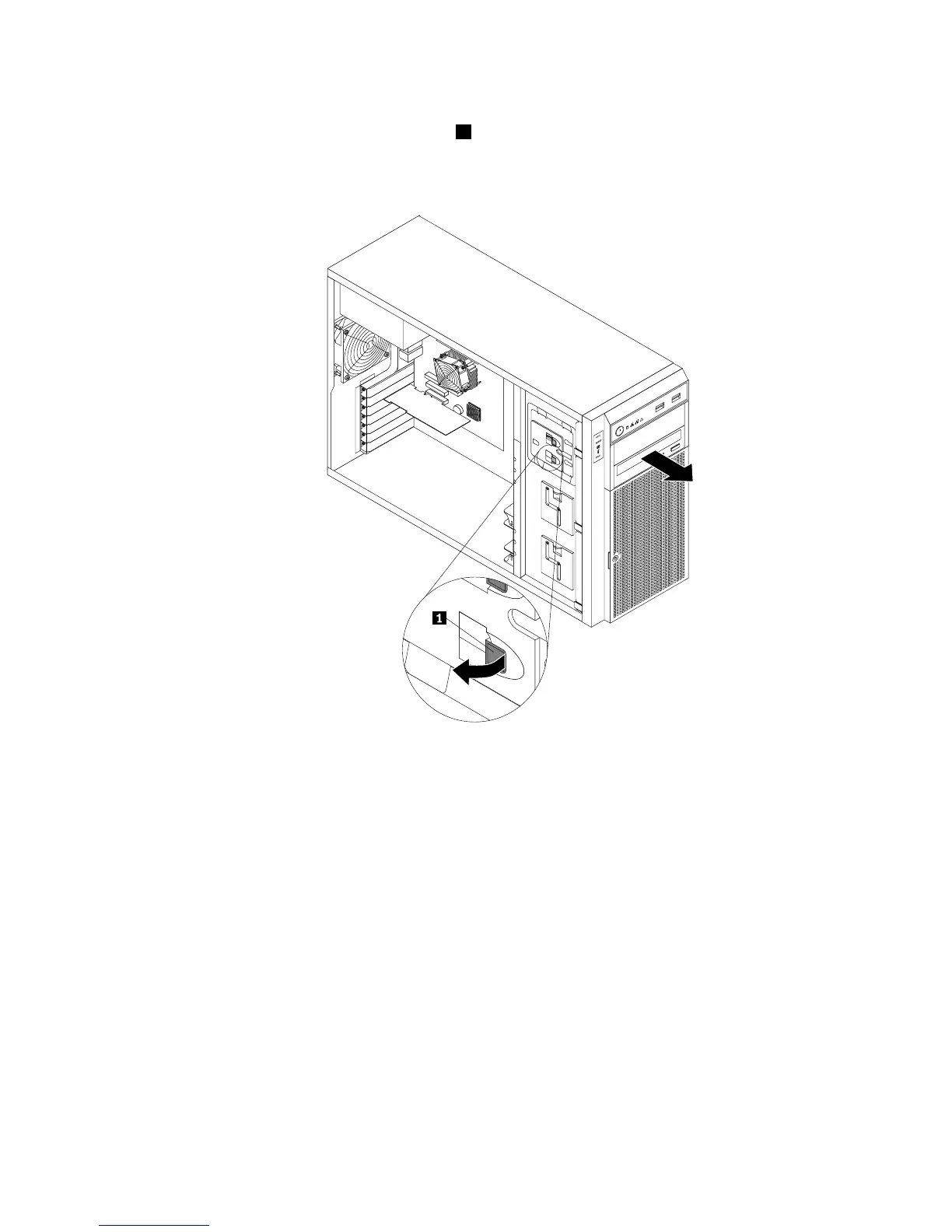

Figure55.Removingtheopticaldrive
5.Touchthestatic-protectivepackagethatcontainsthenewopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewopticaldriveandthesignalcableoutofthepackage.
Chapter6.Installing,removing,orreplacinghardware117
