Mechanical installation
Regenerative power supply modules EMB9341 and EMB9342
Mounting of EMB9341−C / EMB9342−C with "cold plate" technique
4
97
EDBMB9340 DE/EN/FR 12.0
Dimensions
b1
d
b
e
c
c1
a
g
> 100 mm> 100 mm
9340vrm016

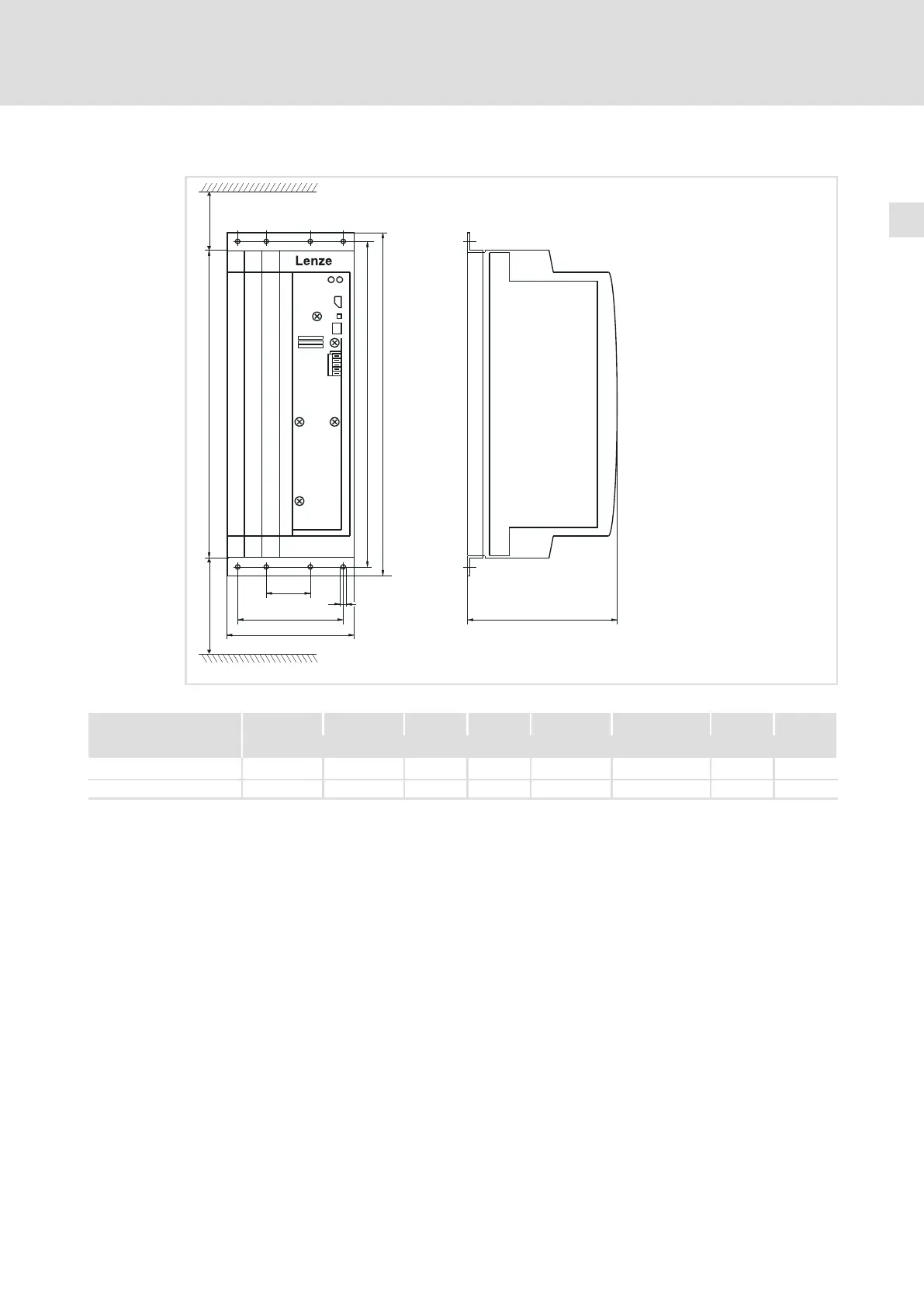

Fig. 4−5 Dimensions of EMB9341−C and EMB9342−C
a b b1 c c1 d e g
[mm]
EMB9341−C 135 381 350 105 38 367 168 6.5
EMB9342−C 135 381 350 105 38 367 168 6.5
