The modular system
7
Mechanical installation
7.2
l
7.2-3
EDSPM-TXXX-3.0-04/2004
Stop!
Only plug the modules on the backplane bus or remove them if the
supply voltage is switched off!
1
4
3
2
epm-t056

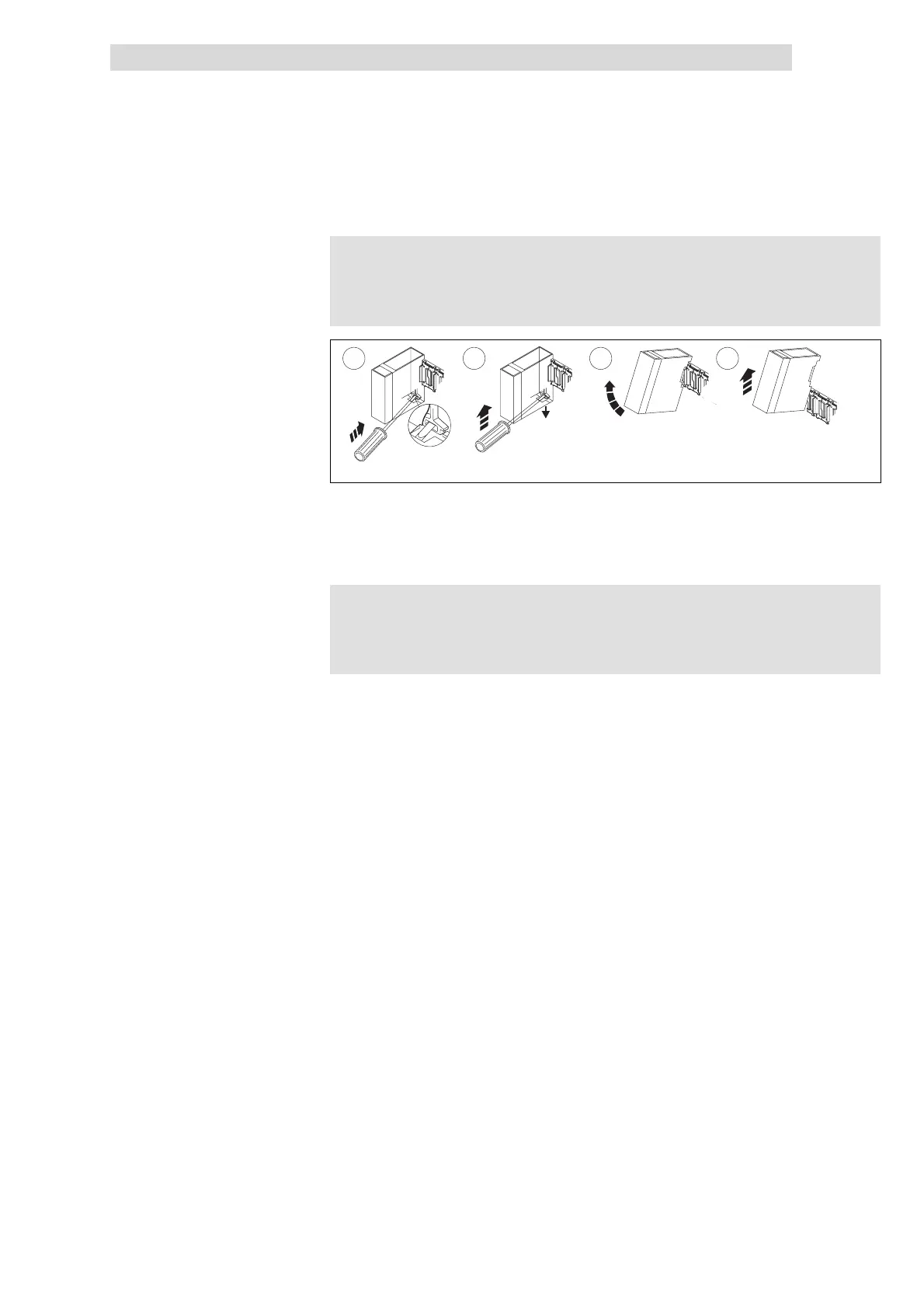

Fig. 7.2-3 Remove the module from the backplane bus
c Insert the screw driver into the withdrawal slot
d Press the screw driver upward to disengage the module
e Pull the module towards the front by its bottom edge.
f Remove the module from the backplane bus by pulling it upwards
Note!
Unplugging a module leaves the backplane bus interrupted at that
particular location.
Disassembly
