4×analog input
5
The modular system
5.10
l
5.10-2
EDSPM-TXXX-3.0-04/2004
AI 4x16BIT
F0
F1
F2
F3
1
2
3
4
5
6
7
8
9
L
10
EPM – T310 1A 10
0
1
epm-t029

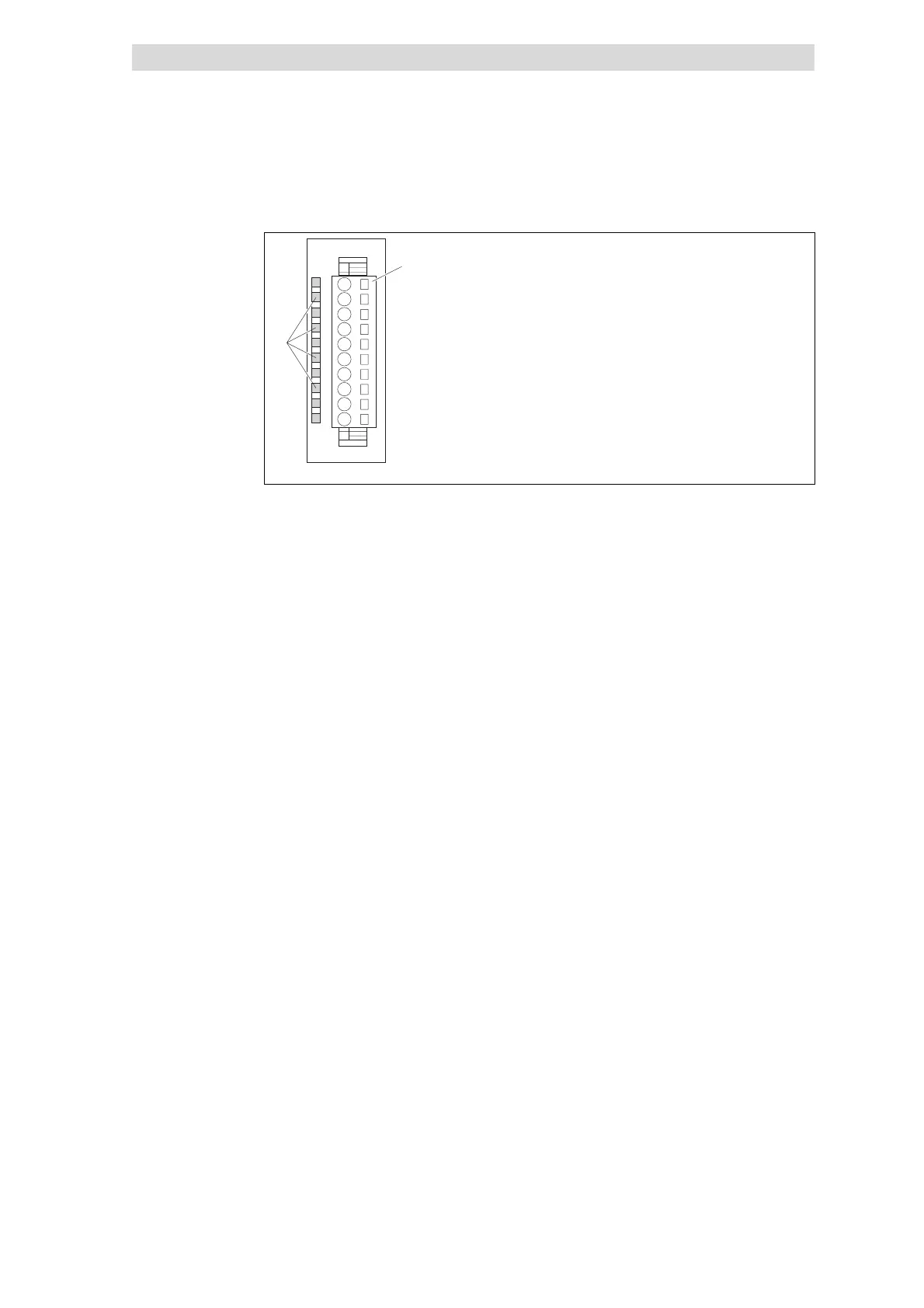

Fig. 5.10-2 Front view 4×analog input

Status display
LED (red) is lit in case of a wire breakage in the measuring range of 4 ... 20 mA
LED (red) is blinking at an input current of >40 mA
F0 Analog input E.0
F1 Analog input E.1
F2 Analog input E.2
F3 Analog input E.3

Terminal strip
Assignment:
Two-wire connection Four-wire connection
1 Not assigned -V / analog input E.0
2 + / analog input E.0 -I / analog input E.0
3 - / analog input E.0 Not assigned
4 + / analog input E.1 +V / analog input E.0
5 - / analog input E.1 -I / analog input E.0
6 + / analog input E.2 -I / analog input E.2
7 - / analog input E.2 Not assigned
8 + / analog input E.3 +V / analog input E.2
9 - / analog input E.3 -I / analog input E.2
10 Not assigned -V / analog input E.2
Status display and terminal
assignment
