3-8 Service Manual
7013-XXX
To stop the test early, turn off the printer.

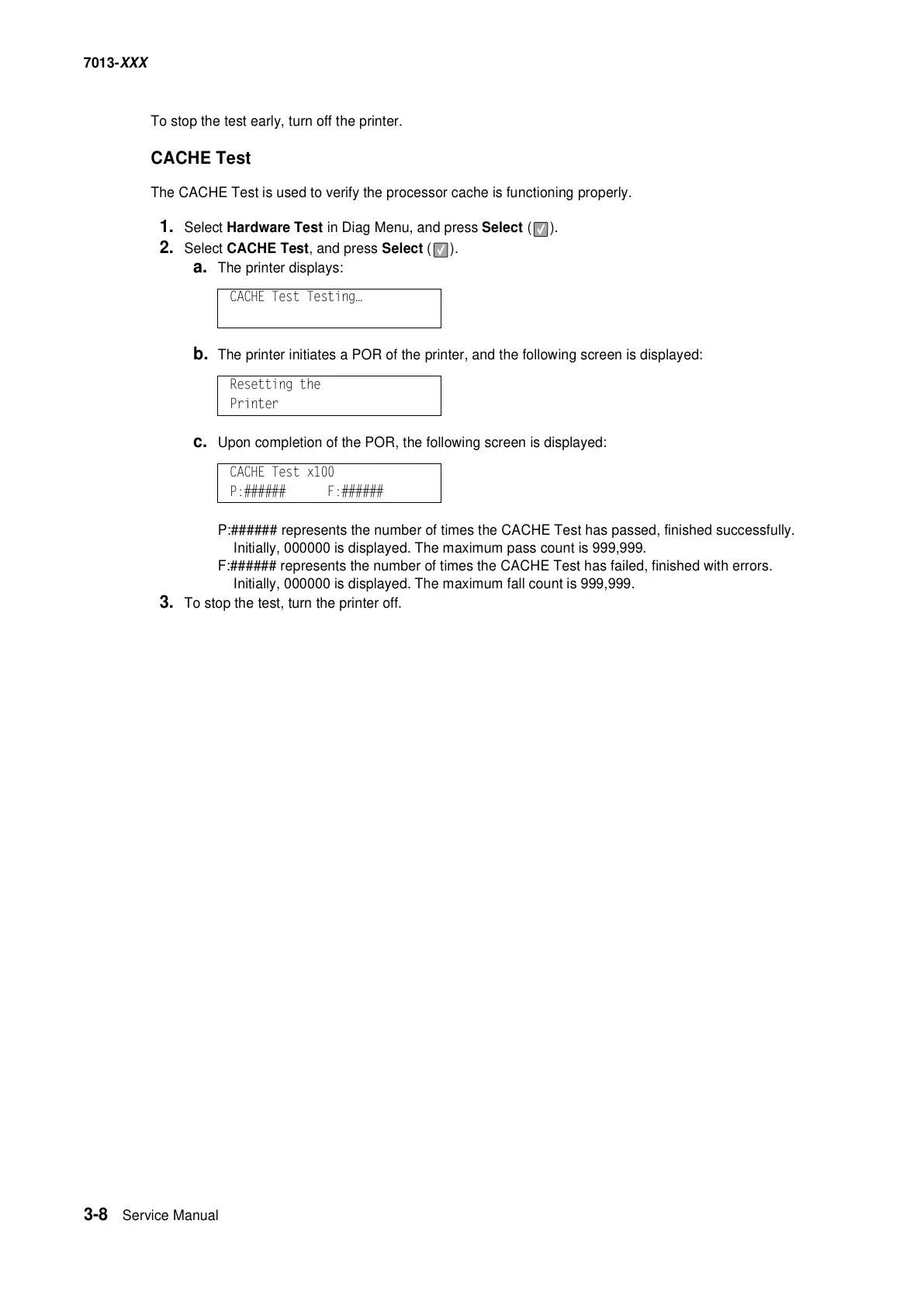

CACHE Test
The CACHE Test is used to verify the processor cache is functioning properly.
1. Select Hardware Test in Diag Menu, and press Select ( ).
2. Select CACHE Test, and press Select ( ).
a. The printer displays:
b. The printer initiates a POR of the printer, and the following screen is displayed:
c. Upon completion of the POR, the following screen is displayed:
P:###### represents the number of times the CACHE Test has passed, finished successfully.
Initially, 000000 is displayed. The maximum pass count is 999,999.
F:###### represents the number of times the CACHE Test has failed, finished with errors.
Initially, 000000 is displayed. The maximum fall count is 999,999.
3. To stop the test, turn the printer off.
CACHE Test Testing…
Resetting the
Printer
CACHE Test x100
P:###### F:######
