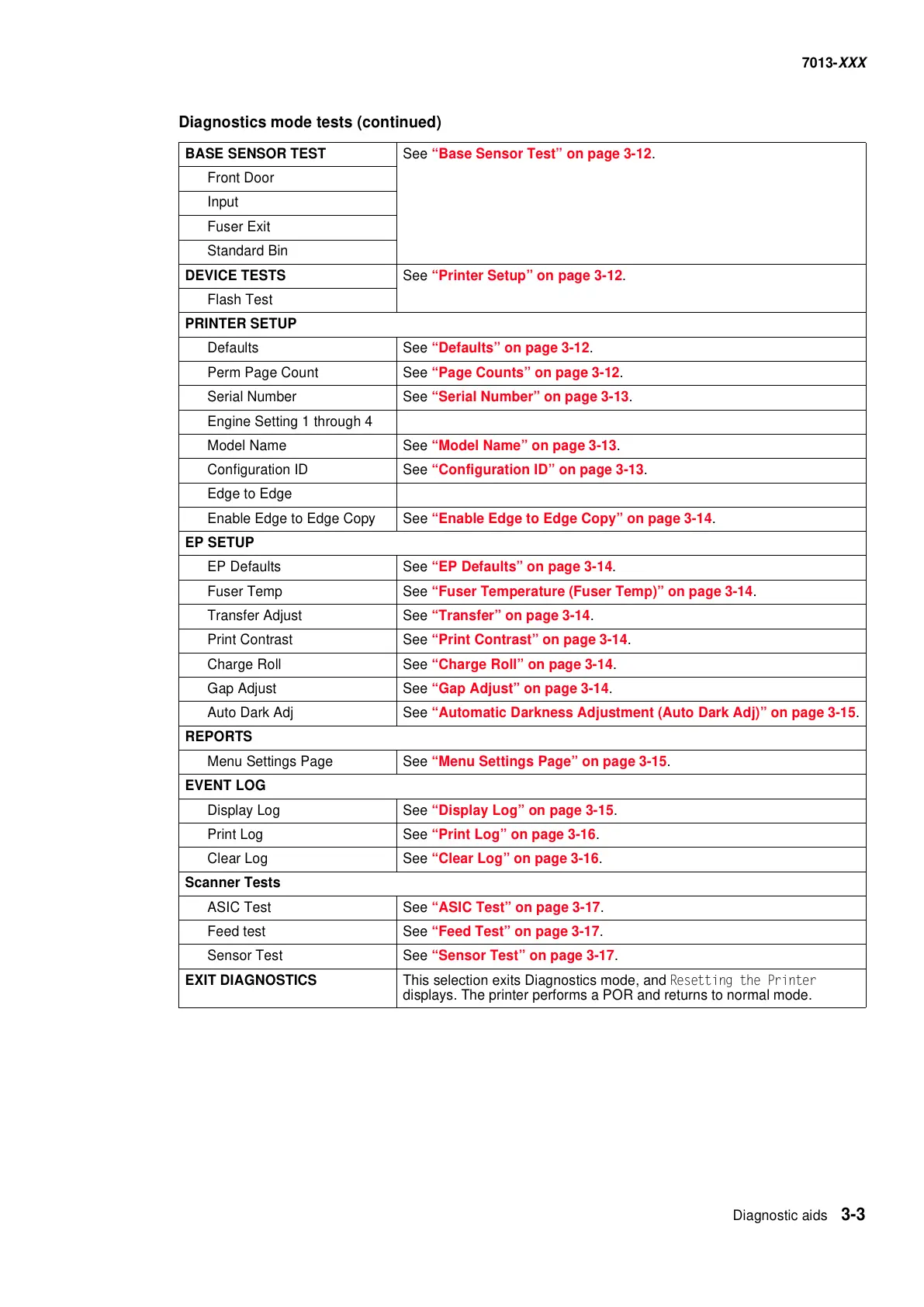

Diagnostic aids 3-3
7013-XXX
BASE SENSOR TEST See “Base Sensor Test” on page 3-12.
Front Door
Input
Fuser Exit
Standard Bin
DEVICE TESTS See “Printer Setup” on page 3-12.
Flash Test
PRINTER SETUP
Defaults See “Defaults” on page 3-12.
Perm Page Count See “Page Counts” on page 3-12.
Serial Number See “Serial Number” on page 3-13.
Engine Setting 1 through 4
Model Name See “Model Name” on page 3-13.
Configuration ID See “Configuration ID” on page 3-13.
Edge to Edge
Enable Edge to Edge Copy See “Enable Edge to Edge Copy” on page 3-14.
EP SETUP
EP Defaults See “EP Defaults” on page 3-14.
Fuser Temp See “Fuser Temperature (Fuser Temp)” on page 3-14.
Transfer Adjust See “Transfer” on page 3-14.
Print Contrast See “Print Contrast” on page 3-14.
Charge Roll See “Charge Roll” on page 3-14.
Gap Adjust See “Gap Adjust” on page 3-14.
Auto Dark Adj See “Automatic Darkness Adjustment (Auto Dark Adj)” on page 3-15.
REPORTS
Menu Settings Page See “Menu Settings Page” on page 3-15.
EVENT LOG
Display Log See “Display Log” on page 3-15.
Print Log See “Print Log” on page 3-16.
Clear Log See “Clear Log” on page 3-16.
Scanner Tests
ASIC Test See “ASIC Test” on page 3-17.
Feed test See “Feed Test” on page 3-17.
Sensor Test See “Sensor Test” on page 3-17.
EXIT DIAGNOSTICS This selection exits Diagnostics mode, and Resetting the Printer
displays. The printer performs a POR and returns to normal mode.
Diagnostics mode tests (continued)
To Next Page
