Lexmark 363dn - Wireless Card Removal

4-78 Service Manual
7013-XXX

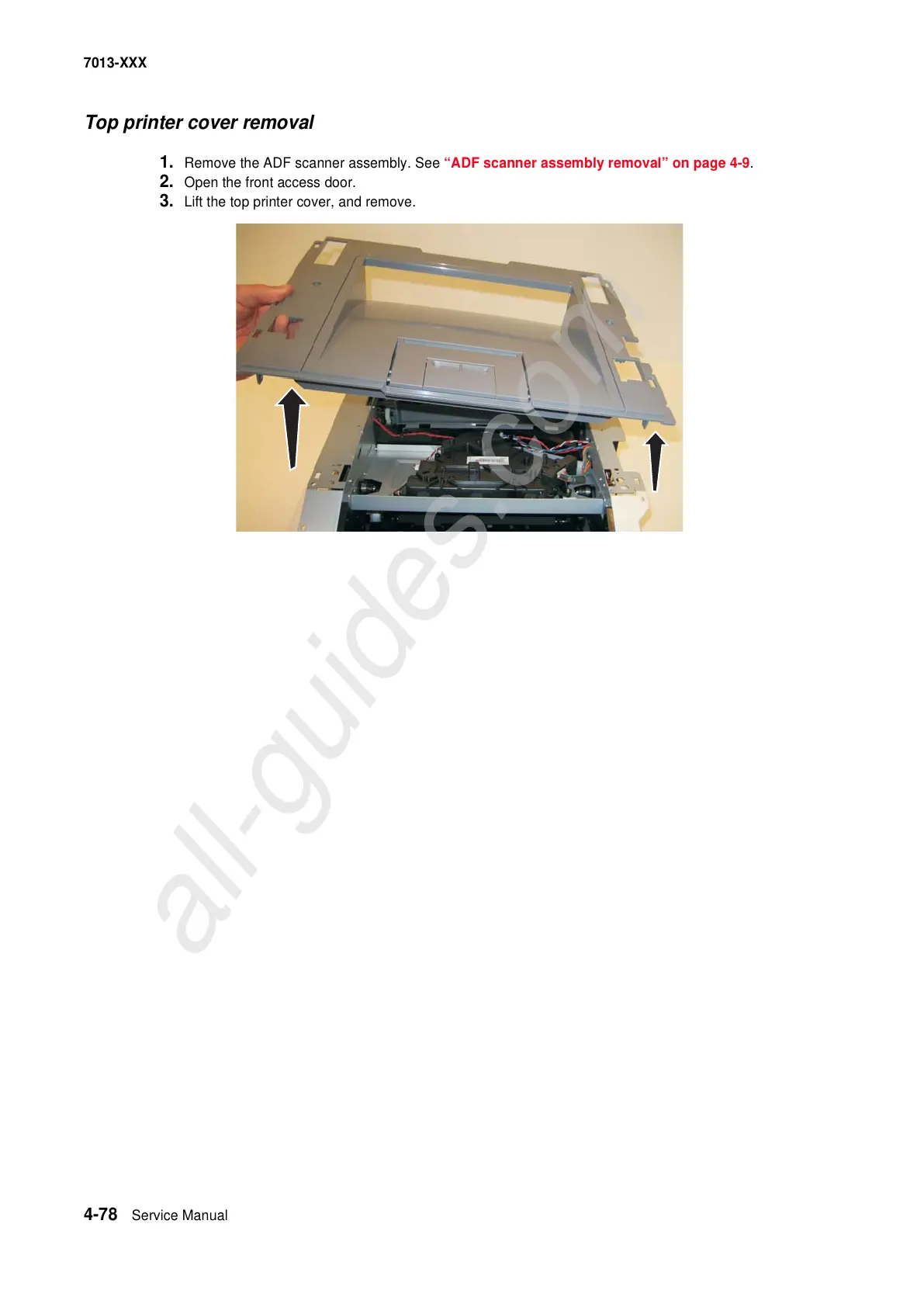

Top printer cover removal
1. Remove the ADF scanner assembly. See “ADF scanner assembly removal” on page 4-9.
2. Open the front access door.
3. Lift the top printer cover, and remove.
