4-58 Service Manual
7013-XXX

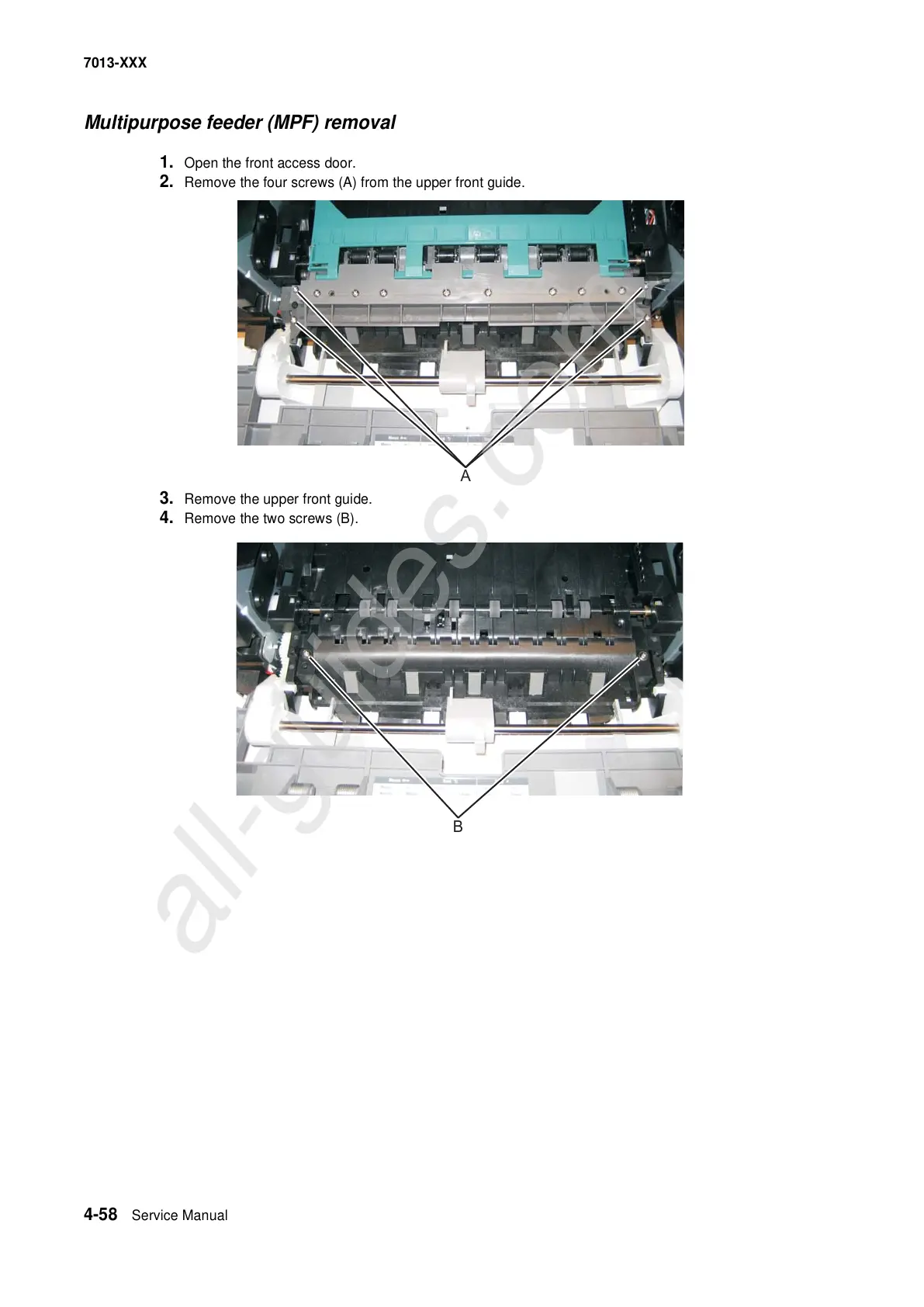

Multipurpose feeder (MPF) removal
1. Open the front access door.
2. Remove the four screws (A) from the upper front guide.
3. Remove the upper front guide.
4. Remove the two screws (B).
A
B
