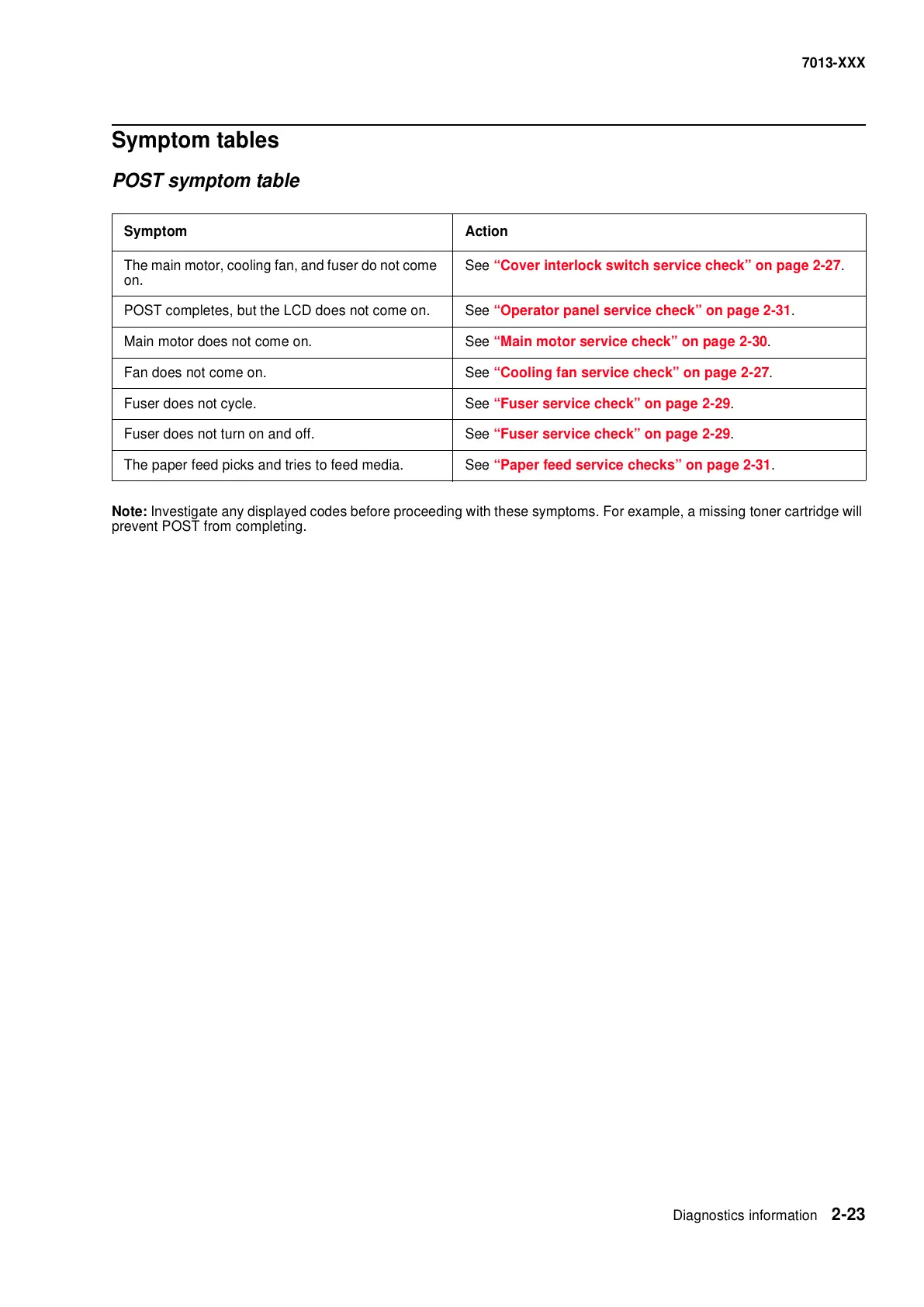

Diagnostics information 2-23
7013-XXX
Symptom tables
POST symptom table
Note: Investigate any displayed codes before proceeding with these symptoms. For example, a missing toner cartridge will
prevent POST from completing.
Symptom Action
The main motor, cooling fan, and fuser do not come
on.
See “Cover interlock switch service check” on page 2-27.
POST completes, but the LCD does not come on. See “Operator panel service check” on page 2-31.
Main motor does not come on. See “Main motor service check” on page 2-30.
Fan does not come on. See “Cooling fan service check” on page 2-27.
Fuser does not cycle. See “Fuser service check” on page 2-29.
Fuser does not turn on and off. See “Fuser service check” on page 2-29.
The paper feed picks and tries to feed media. See “Paper feed service checks” on page 2-31.
