Parts catalog 7-1
7013-XXX

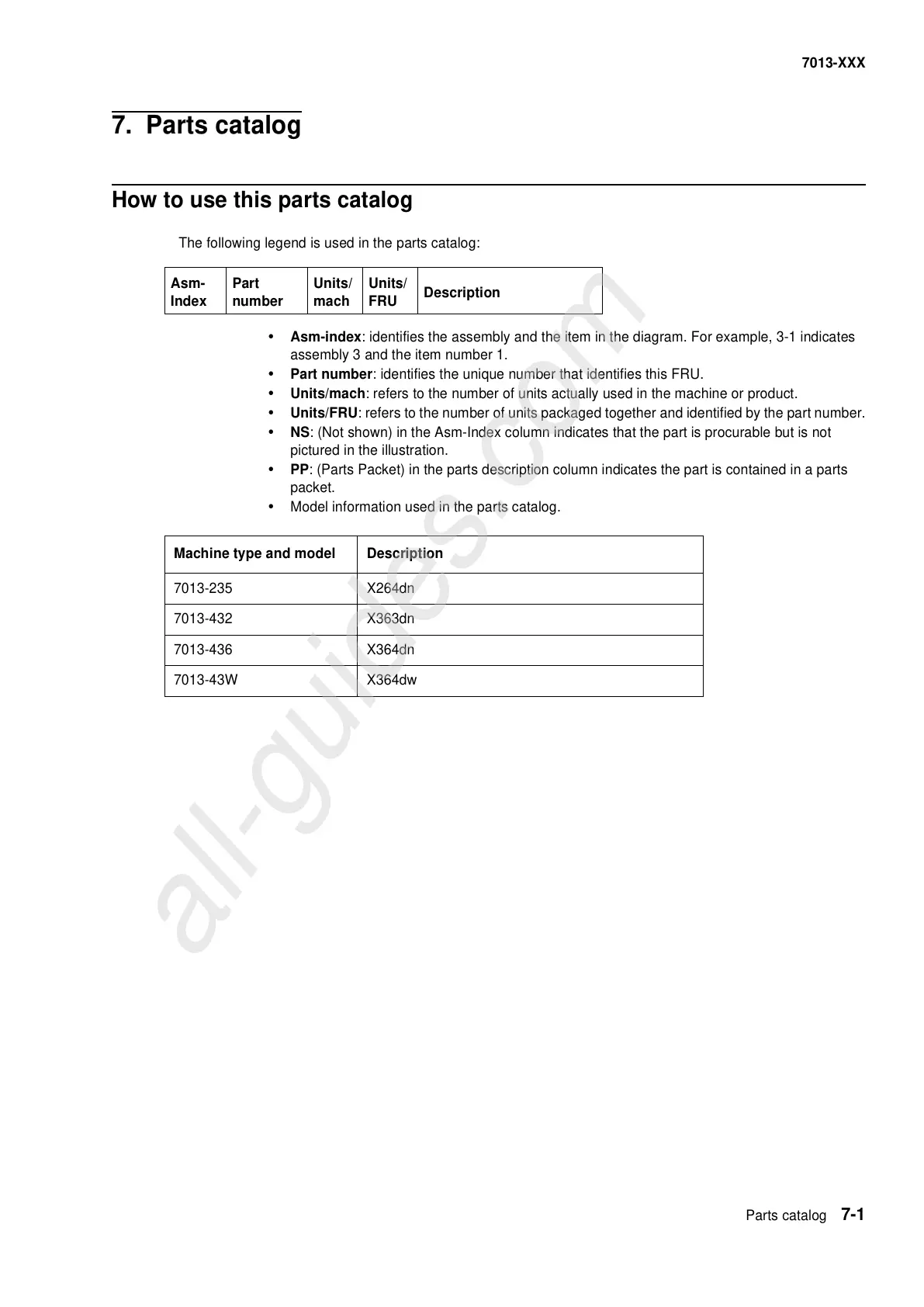

7. Parts catalog
How to use this parts catalog
The following legend is used in the parts catalog:
• Asm-index: identifies the assembly and the item in the diagram. For example, 3-1 indicates
assembly 3 and the item number 1.
• Part number: identifies the unique number that identifies this FRU.
• Units/mach: refers to the number of units actually used in the machine or product.
• Units/FRU: refers to the number of units packaged together and identified by the part number.
• NS: (Not shown) in the Asm-Index column indicates that the part is procurable but is not
pictured in the illustration.
• PP: (Parts Packet) in the parts description column indicates the part is contained in a parts
packet.
• Model information used in the parts catalog.
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
Machine type and model Description
7013-235 X264dn
7013-432 X363dn
7013-436 X364dn
7013-43W X364dw
