Repair information 4-79
7013-XXX

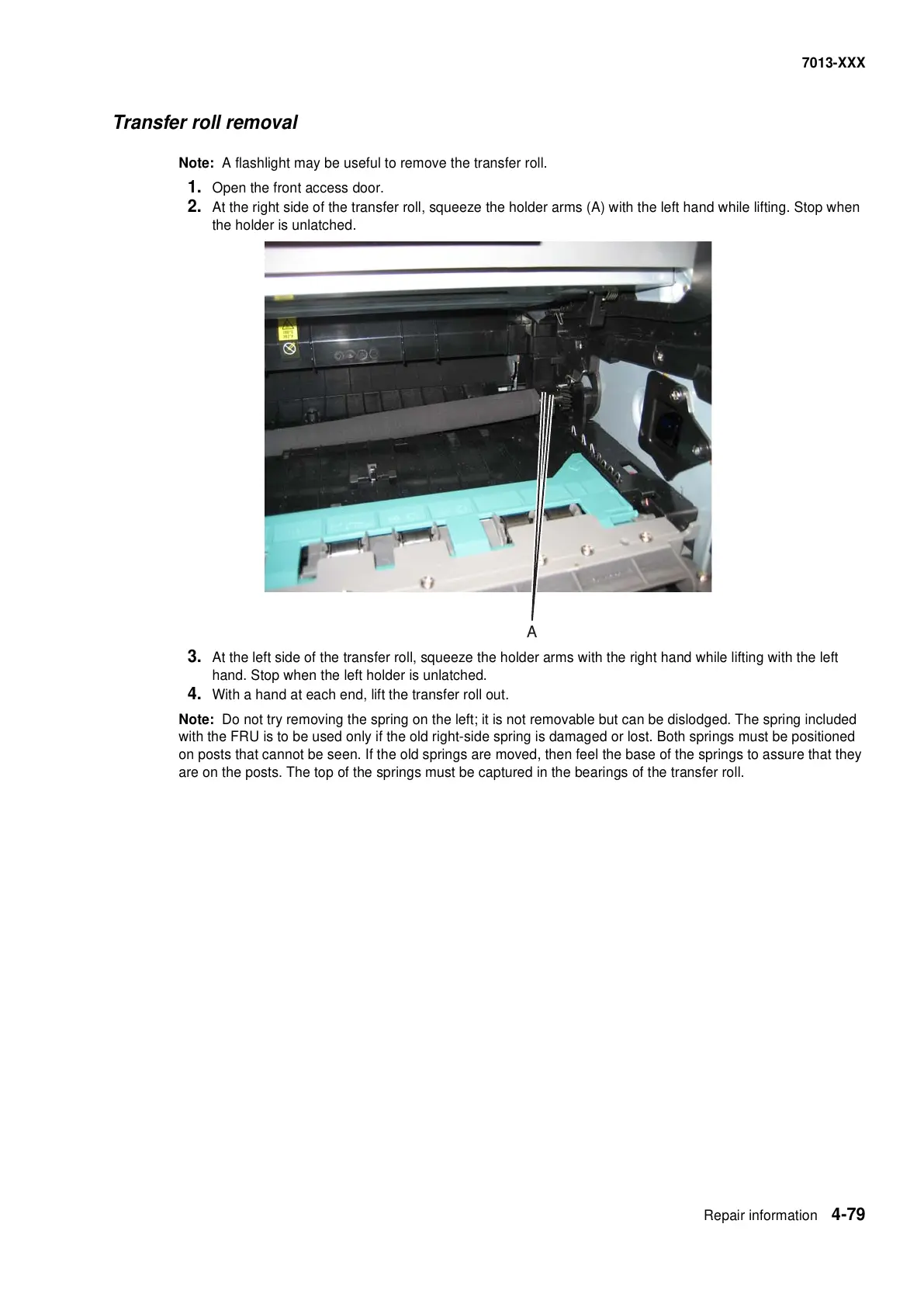

Transfer roll removal
Note: A flashlight may be useful to remove the transfer roll.
1. Open the front access door.
2. At the right side of the transfer roll, squeeze the holder arms (A) with the left hand while lifting. Stop when
the holder is unlatched.
3. At the left side of the transfer roll, squeeze the holder arms with the right hand while lifting with the left
hand. Stop when the left holder is unlatched.
4. With a hand at each end, lift the transfer roll out.
Note: Do not try removing the spring on the left; it is not removable but can be dislodged. The spring included
with the FRU is to be used only if the old right-side spring is damaged or lost. Both springs must be positioned
on posts that cannot be seen. If the old springs are moved, then feel the base of the springs to assure that they
are on the posts. The top of the springs must be captured in the bearings of the transfer roll.
