Repair information 4-77
7013-XXX

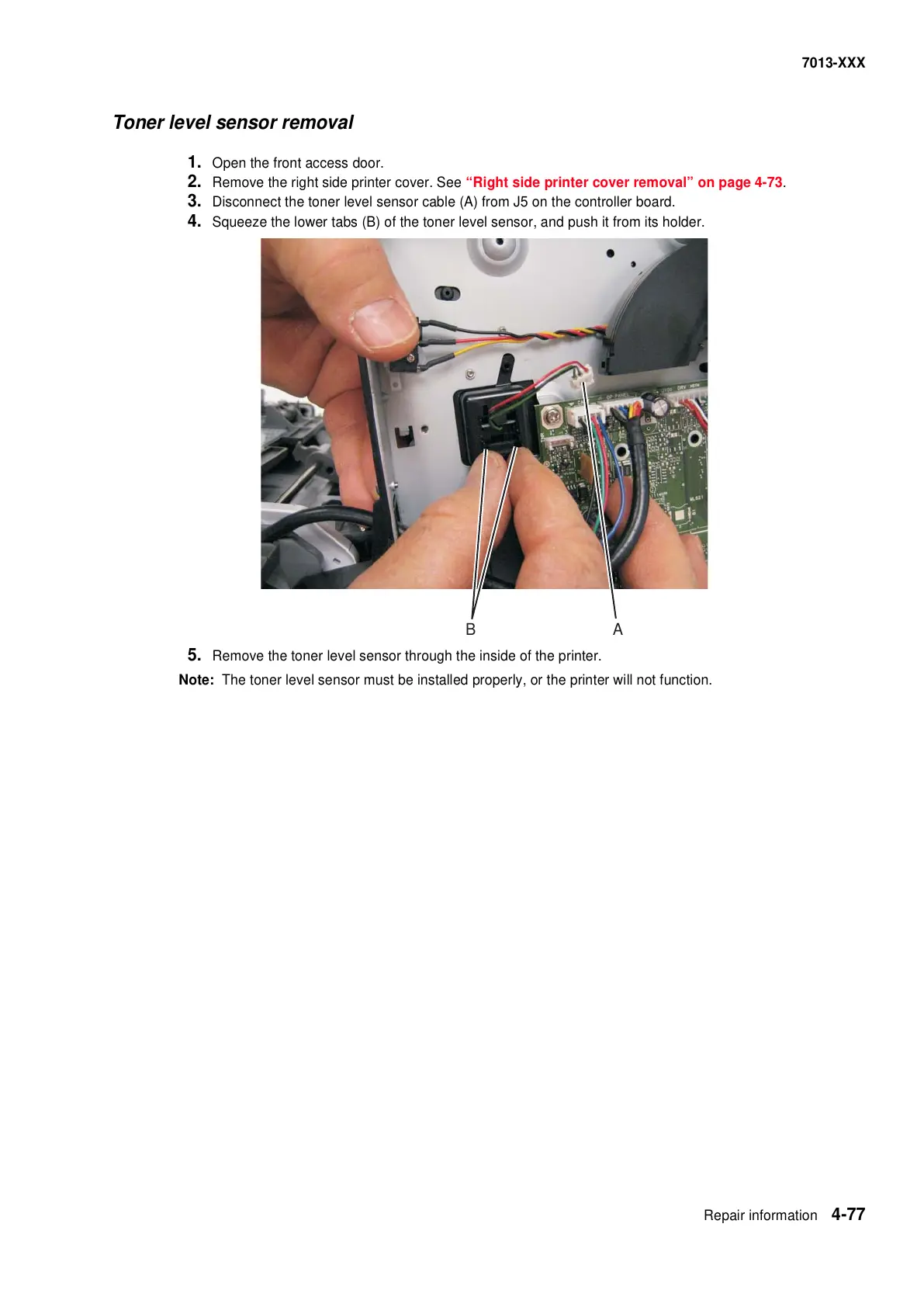

Toner level sensor removal
1. Open the front access door.
2. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
3. Disconnect the toner level sensor cable (A) from J5 on the controller board.
4. Squeeze the lower tabs (B) of the toner level sensor, and push it from its holder.
5. Remove the toner level sensor through the inside of the printer.
Note: The toner level sensor must be installed properly, or the printer will not function.
