4-24 Service Manual
7013-XXX

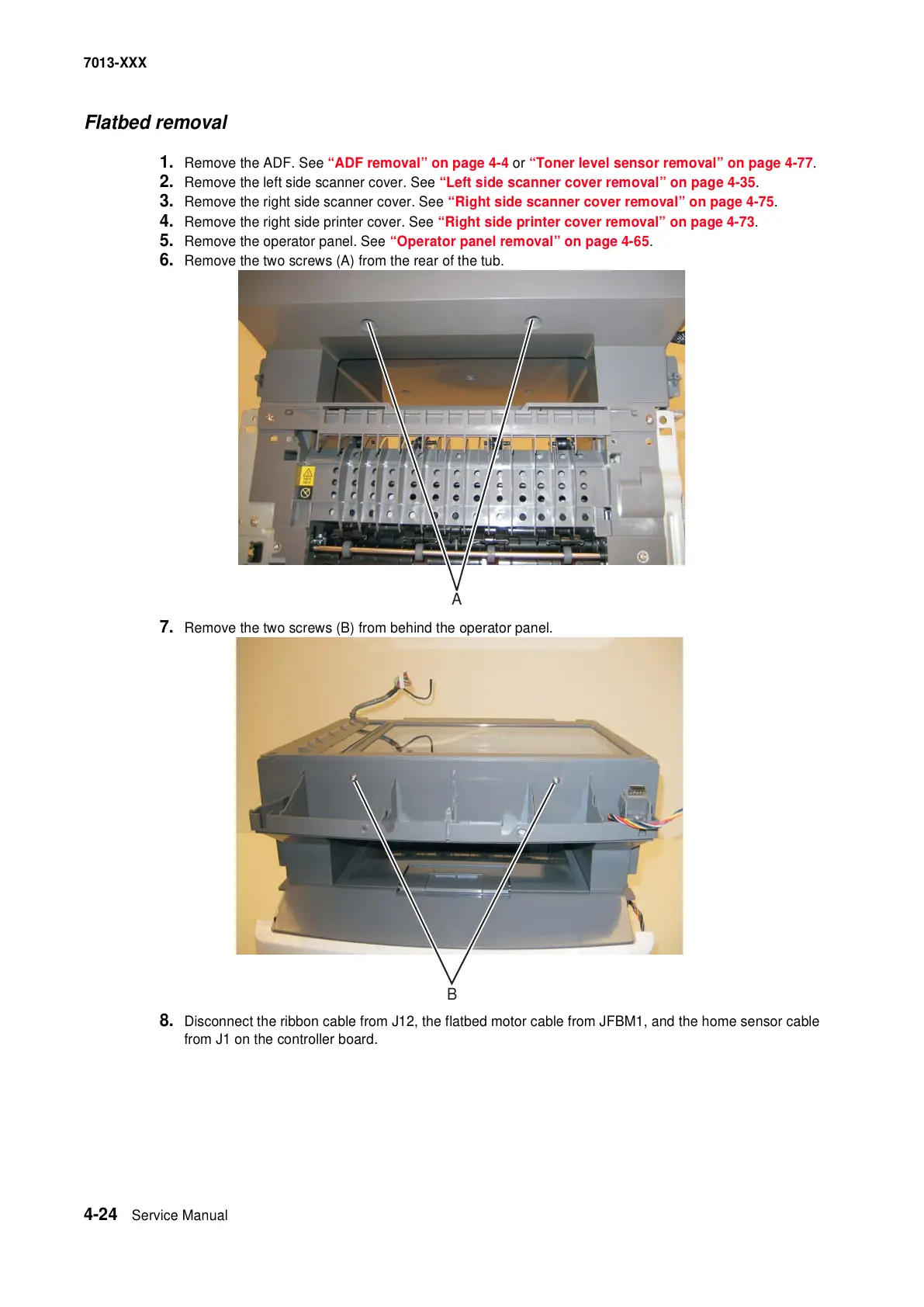

Flatbed removal
1. Remove the ADF. See “ADF removal” on page 4-4 or “Toner level sensor removal” on page 4-77.
2. Remove the left side scanner cover. See “Left side scanner cover removal” on page 4-35.
3. Remove the right side scanner cover. See “Right side scanner cover removal” on page 4-75.
4. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
5. Remove the operator panel. See “Operator panel removal” on page 4-65.
6. Remove the two screws (A) from the rear of the tub.
7. Remove the two screws (B) from behind the operator panel.
8. Disconnect the ribbon cable from J12, the flatbed motor cable from JFBM1, and the home sensor cable
from J1 on the controller board.
