4-68 Service Manual
7013-XXX

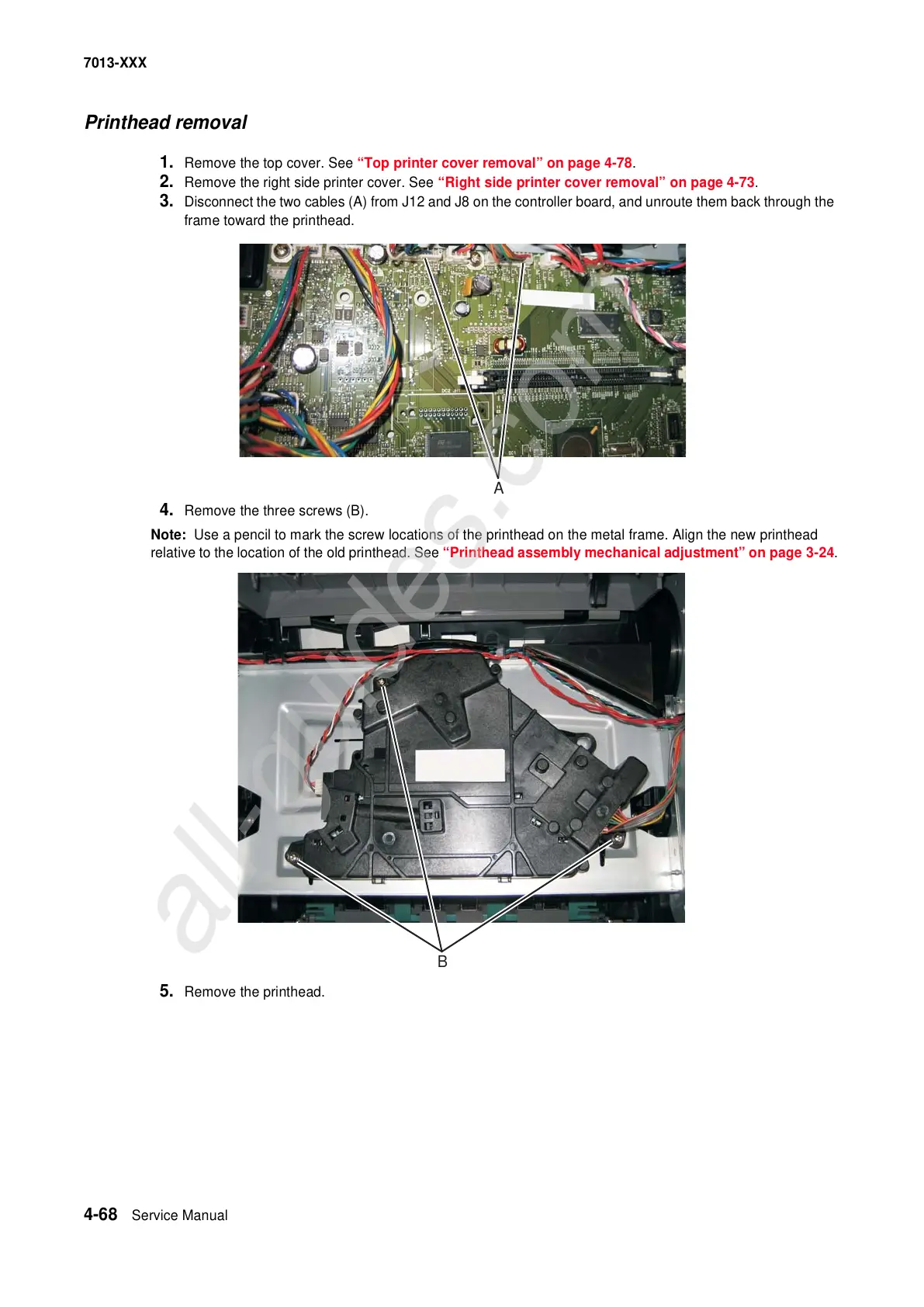

Printhead removal
1. Remove the top cover. See “Top printer cover removal” on page 4-78.
2. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
3. Disconnect the two cables (A) from J12 and J8 on the controller board, and unroute them back through the
frame toward the printhead.
4. Remove the three screws (B).
Note: Use a pencil to mark the screw locations of the printhead on the metal frame. Align the new printhead
relative to the location of the old printhead. See
“Printhead assembly mechanical adjustment” on page 3-24.
5. Remove the printhead.
