7-8 Service Manual
7013-XXX

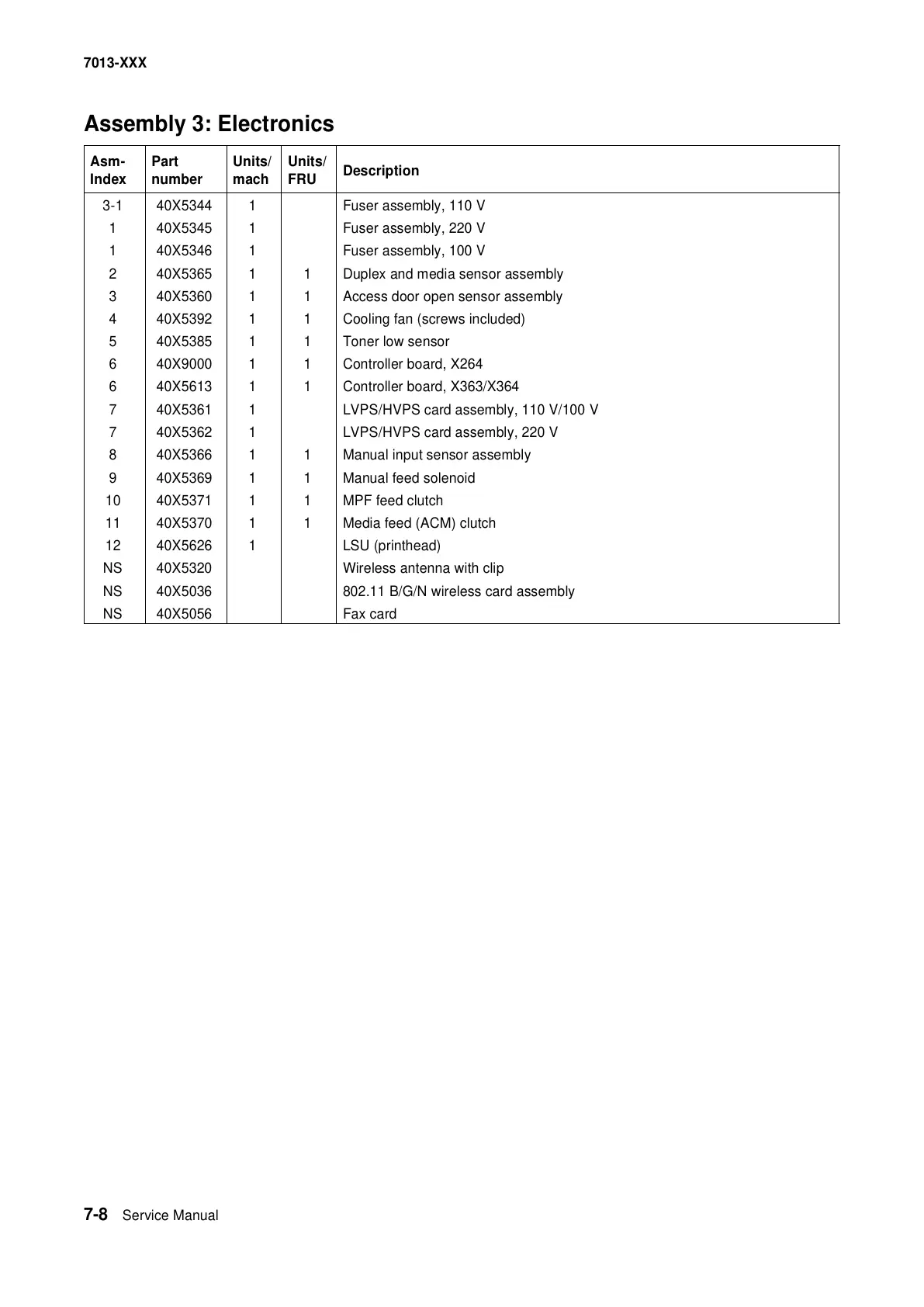

Assembly 3: Electronics
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
3-1 40X5344 1 Fuser assembly, 110 V
1 40X5345 1 Fuser assembly, 220 V
1 40X5346 1 Fuser assembly, 100 V
2 40X5365 1 1 Duplex and media sensor assembly
3 40X5360 1 1 Access door open sensor assembly
4 40X5392 1 1 Cooling fan (screws included)
5 40X5385 1 1 Toner low sensor
6 40X9000 1 1 Controller board, X264
6 40X5613 1 1 Controller board, X363/X364
7 40X5361 1 LVPS/HVPS card assembly, 110 V/100 V
7 40X5362 1 LVPS/HVPS card assembly, 220 V
8 40X5366 1 1 Manual input sensor assembly
9 40X5369 1 1 Manual feed solenoid
10 40X5371 1 1 MPF feed clutch
11 40X5370 1 1 Media feed (ACM) clutch
12 40X5626 1 LSU (printhead)
NS 40X5320 Wireless antenna with clip
NS 40X5036 802.11 B/G/N wireless card assembly
NS 40X5056 Fax card
