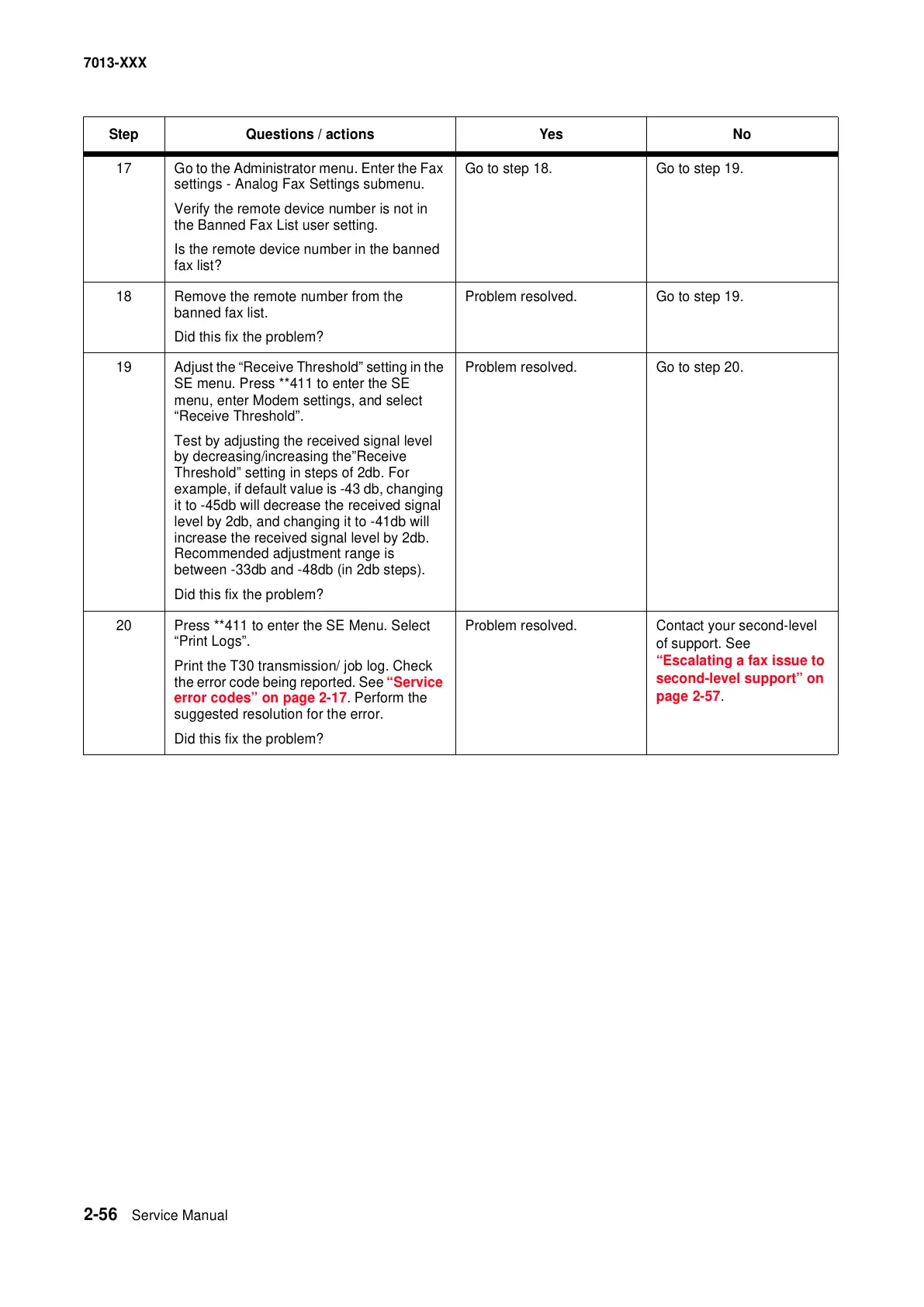

2-56 Service Manual
7013-XXX
17 Go to the Administrator menu. Enter the Fax
settings - Analog Fax Settings submenu.
Verify the remote device number is not in
the Banned Fax List user setting.
Is the remote device number in the banned
fax list?
Go to step 18. Go to step 19.
18 Remove the remote number from the
banned fax list.
Did this fix the problem?
Problem resolved. Go to step 19.
19 Adjust the “Receive Threshold” setting in the
SE menu. Press **411 to enter the SE
menu, enter Modem settings, and select
“Receive Threshold”.
Test by adjusting the received signal level
by decreasing/increasing the”Receive
Threshold” setting in steps of 2db. For
example, if default value is -43 db, changing
it to -45db will decrease the received signal
level by 2db, and changing it to -41db will
increase the received signal level by 2db.
Recommended adjustment range is
between -33db and -48db (in 2db steps).
Did this fix the problem?
Problem resolved. Go to step 20.
20 Press **411 to enter the SE Menu. Select
“Print Logs”.
Print the T30 transmission/ job log. Check
the error code being reported. See
“Service
error codes” on page 2-17. Perform the
suggested resolution for the error.
Did this fix the problem?
Problem resolved. Contact your second-level
of support. See
“Escalating a fax issue to
second-level support” on
page 2-57.
Step Questions / actions Yes No
