4-20 Service Manual
4062-XXX
Laser cover removal (T650, T652, T654)
1. Remove the output cover assembly. Go to “Output cover assembly removal (T650, T652, T654)” on
page 4-28.
2. Remove the fuser wiper cover assembly. Go to “Fuser wiper cover assembly removal (T650, T652,
T654)” on page 4-17.
3. Remove the side cover, left. Go to “Side cover, left removal (T650)” on page 4-21 or “Side cover, left
removal (T652 and T654)” on page 4-22.
4. Remove the side cover, right. Go to “Side cover, right removal (T650)” on page 4-57 or “Side cover,
right removal (T652, T654)” on page 4-58.

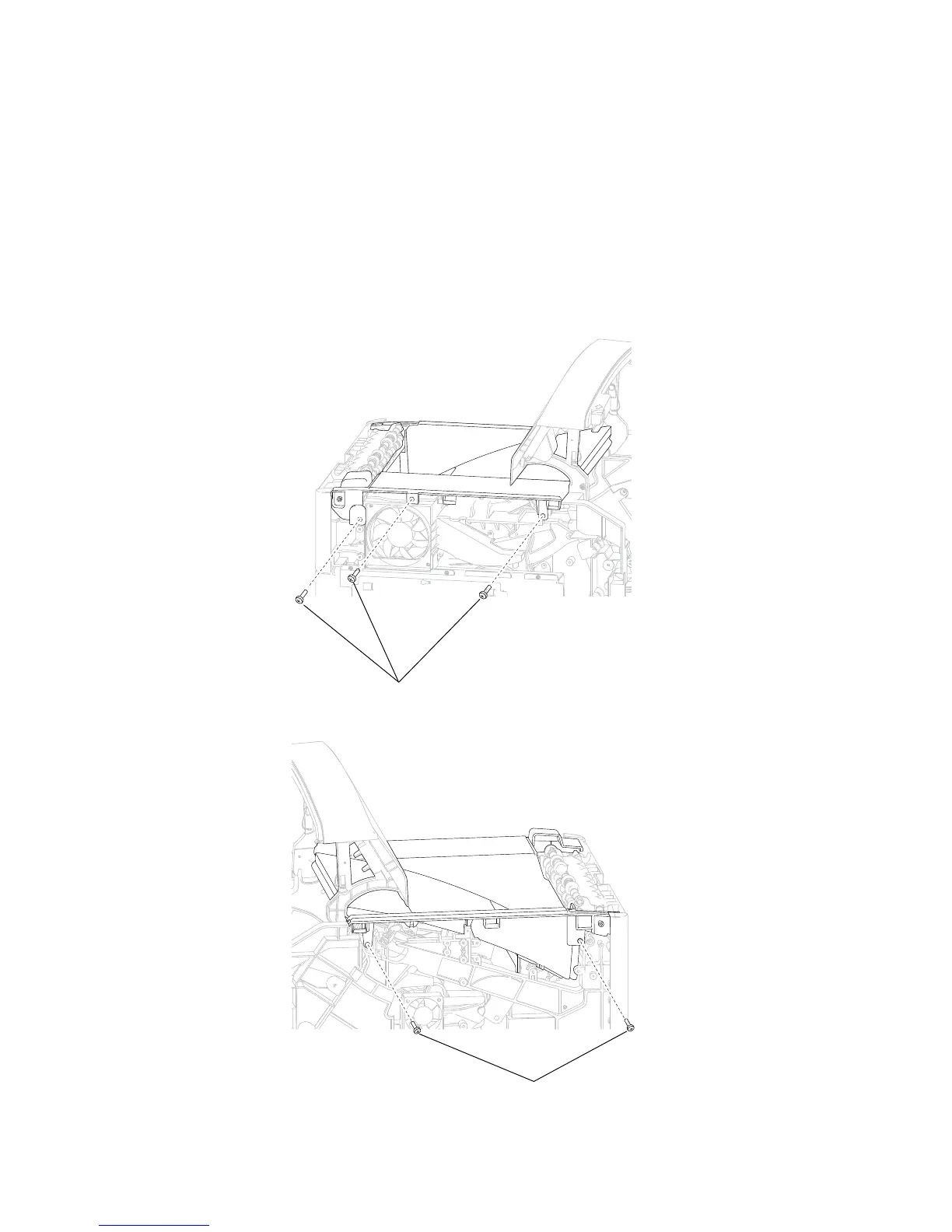

5. Remove the five screws (A) securing the laser cover to the machine.
