4-152 Service Manual

4062-XXX

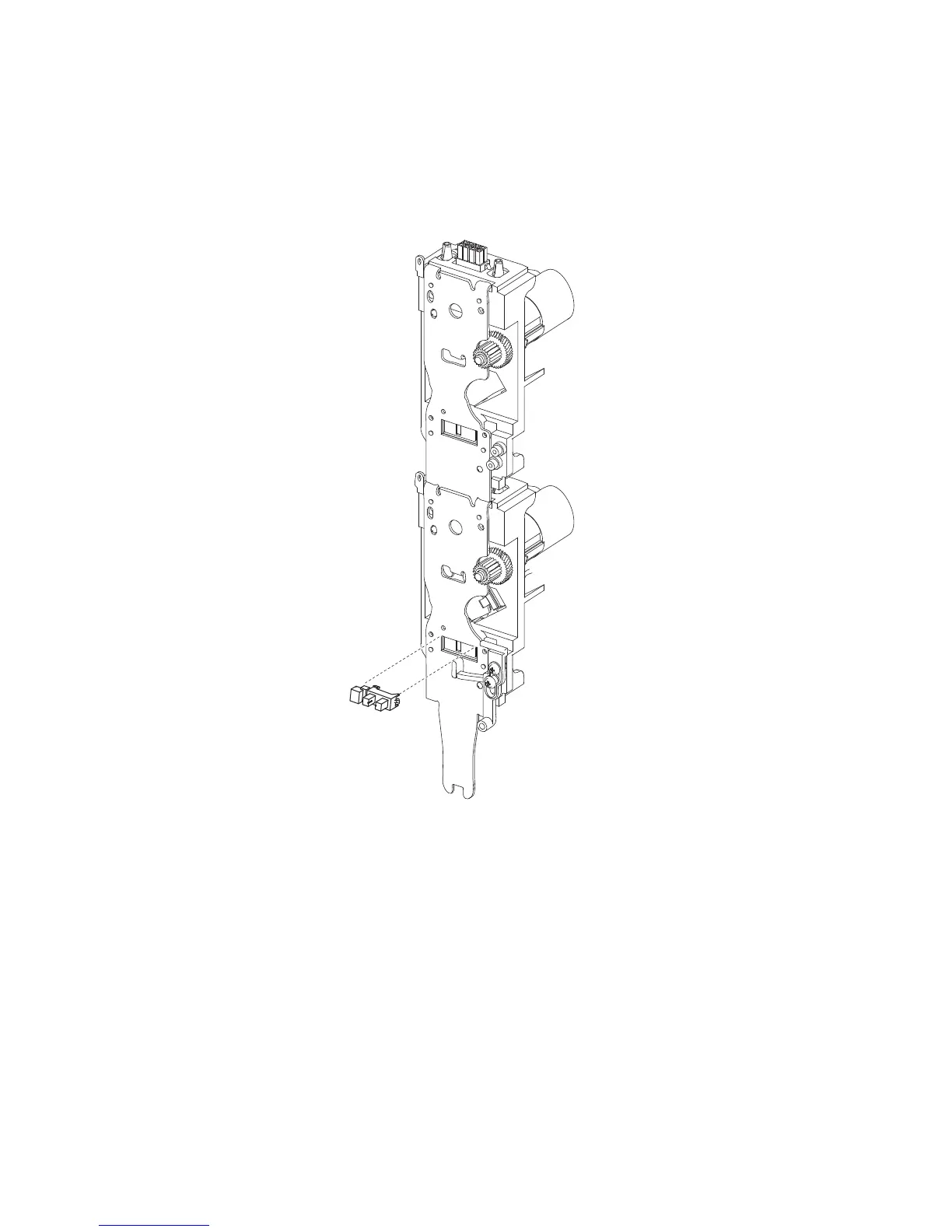

High capacity stacker sensor (deflector gate HP) removal

1. Remove the high capacity stacker left mounting bracket. Go to “High capacity stacker left mounting

bracket removal” on page 4-151.

2. Remove the harness from the sensor.

3. Unclip the sensor tabs and remove.
