4-132 Service Manual

4062-XXX

SFP stapler assembly sensor (paddle HP) removal

1. Remove the left cover. Go to “SFP stapler assembly left cover removal” on page 4-119.

2. Disconnect the harness to the sensor (paddle home position).

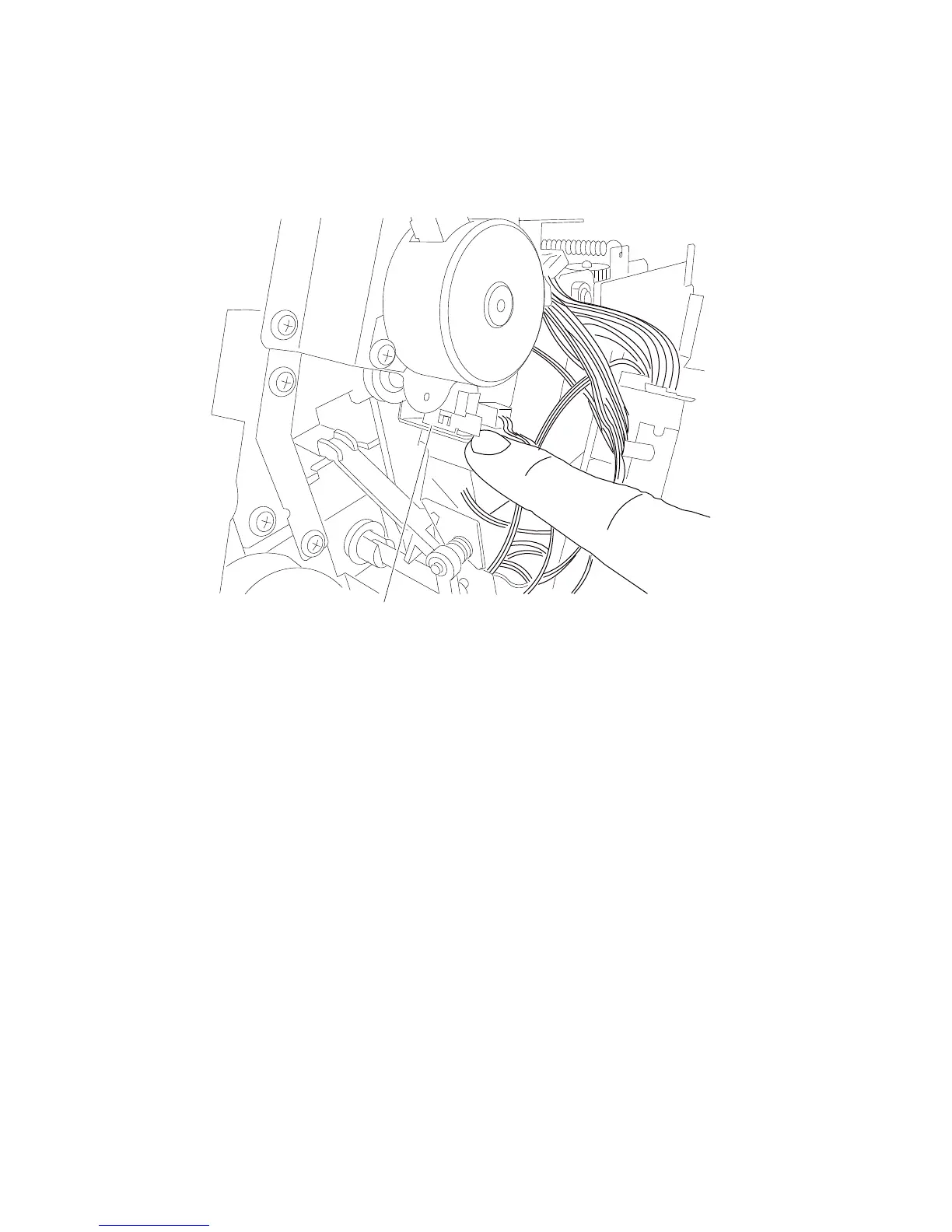

3. Using your fingers, pinch tab (A) securing the sensor (paddle home position) and remove.
