Lexmark T650n - Side Cover, Right Removal (T650)

Repair information 4-57
4062-XXX

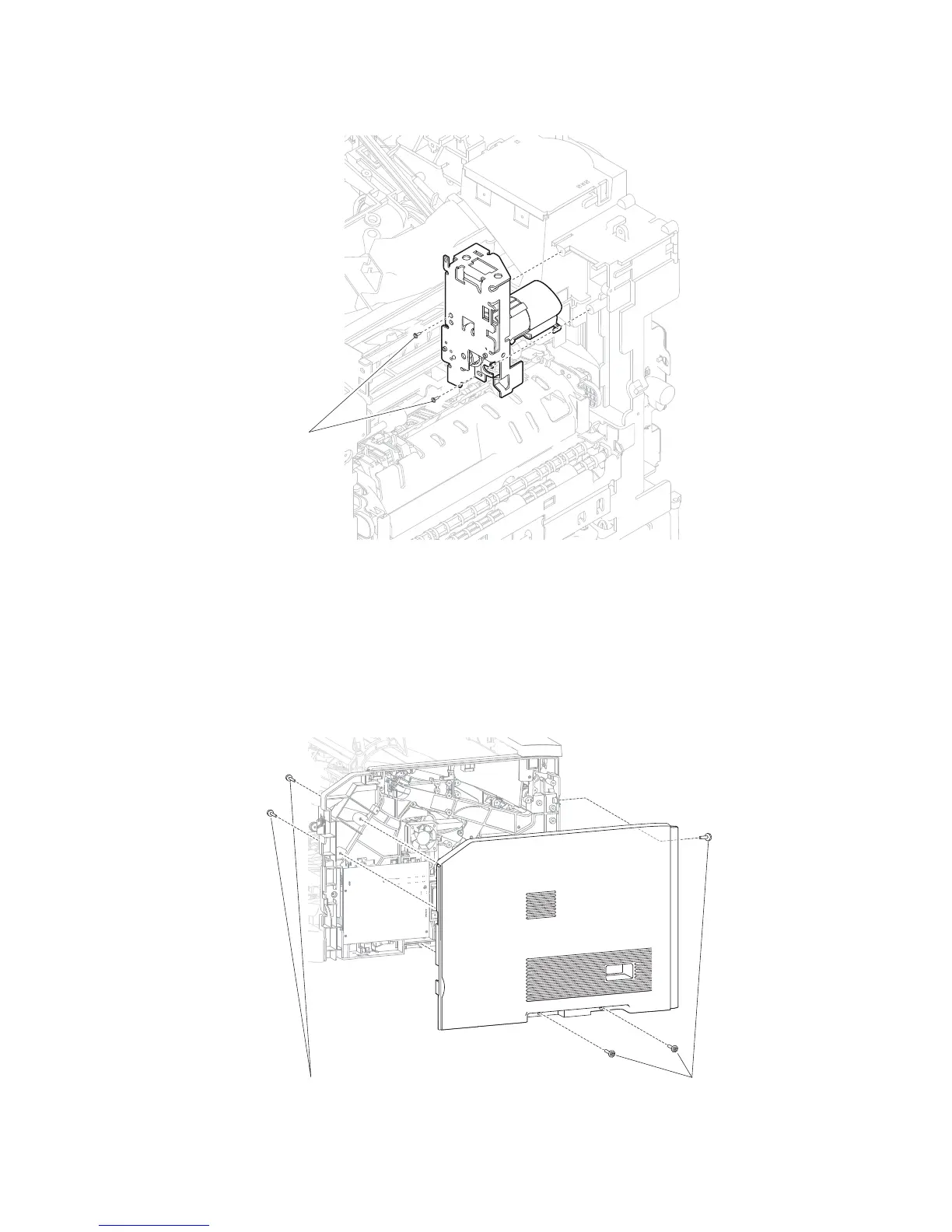

8. Remove the two screws (E) securing the redrive motor assembly to the machine.
9. Remove the redrive motor assembly.
Side cover, right removal (T650)
1. Open the operator panel door assembly.
2. Open the MPF tray door assembly.
3. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower removal (T650)” on
page 4-54.
4. Remove the five screws (A) securing the side cover, right to the machine.
5. Remove the side cover, right.
E
A A
