Lexmark T650n - Sheet Option Drive Shaft with Spring Removal

4-116 Service Manual
4062-XXX
550-sheet option drive shaft with spring removal
1. Remove the 550-sheet frame assembly. Go to “550-sheet frame assembly removal” on page 4-109.

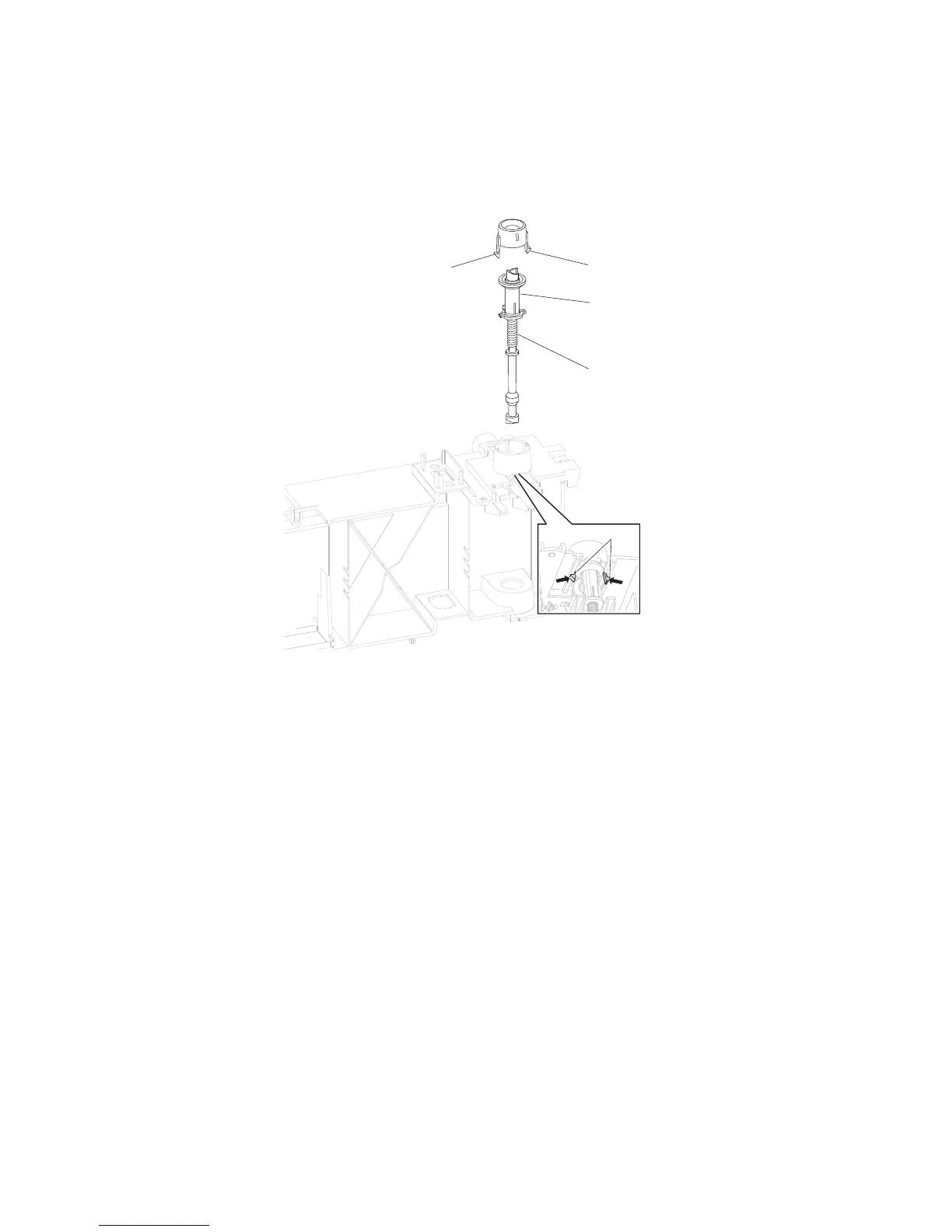

2. Pinch the two hooks (A) on the cap, and detach it from the 550-sheet frame.
3. Pull the drive roll gear (B), the shaft with spring (C), and the bevel out through the opening.
4. Remove the 550-sheet option drive shaft with spring.
A
A
B
C
A
