Repair information 4-69
4062-XXX
System card assembly removal (T650, T652, T654)
1. Remove the side cover, left. Go to “Side cover, left removal (T650)” on page 4-21 or “Side cover, left
removal (T652 and T654)” on page 4-22.

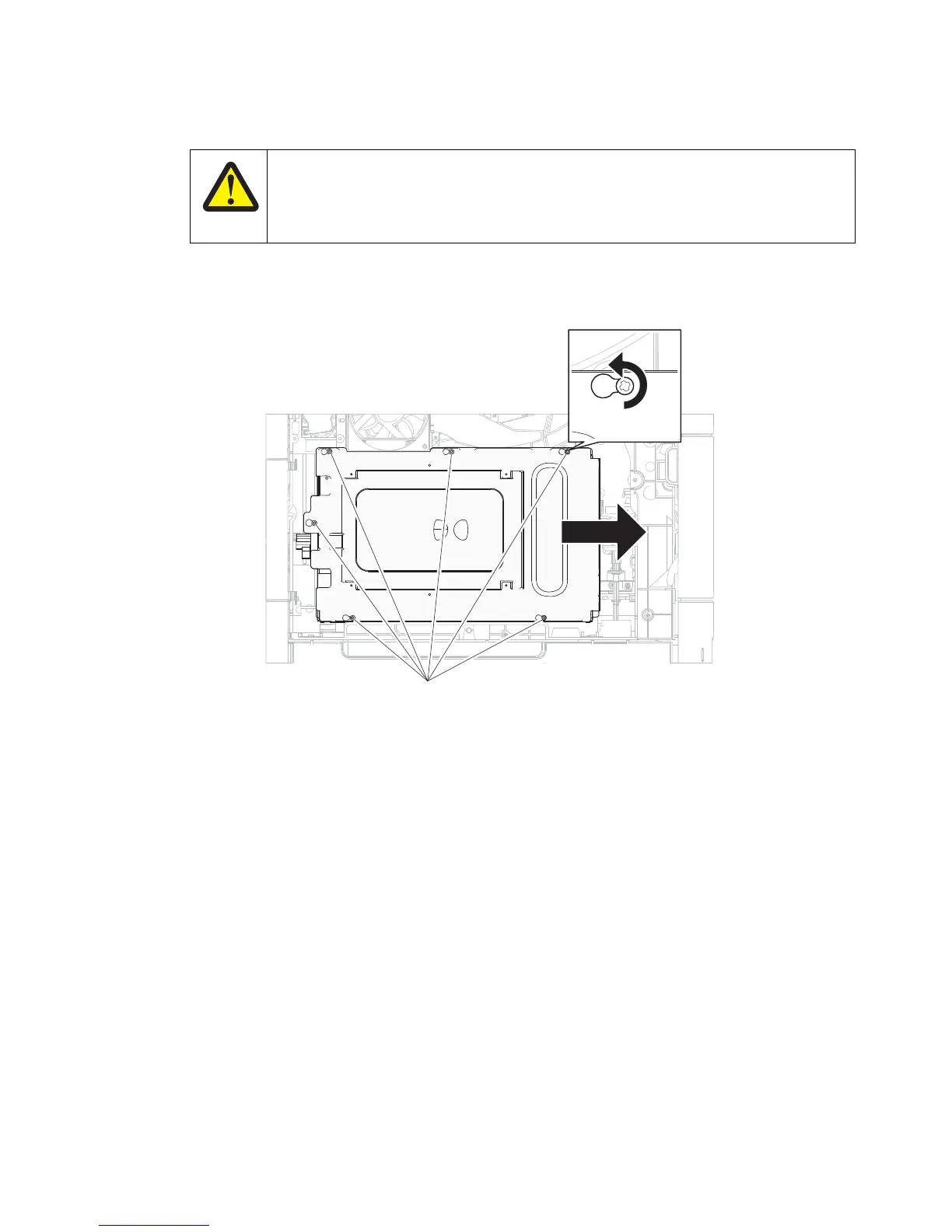

2. Remove the six screws (A) securing the metal shield to the machine.
3. Slide the metal shield in the direction of the arrow.
CAUTION
This product contains a lithium battery. THERE IS A RISK OF EXPLOSION IF THE BATTERY
IS REPLACED BY AN INCORRECT TYPE. Discard used batteries according to the battery
manufacturer’s instructions and local regulations.
