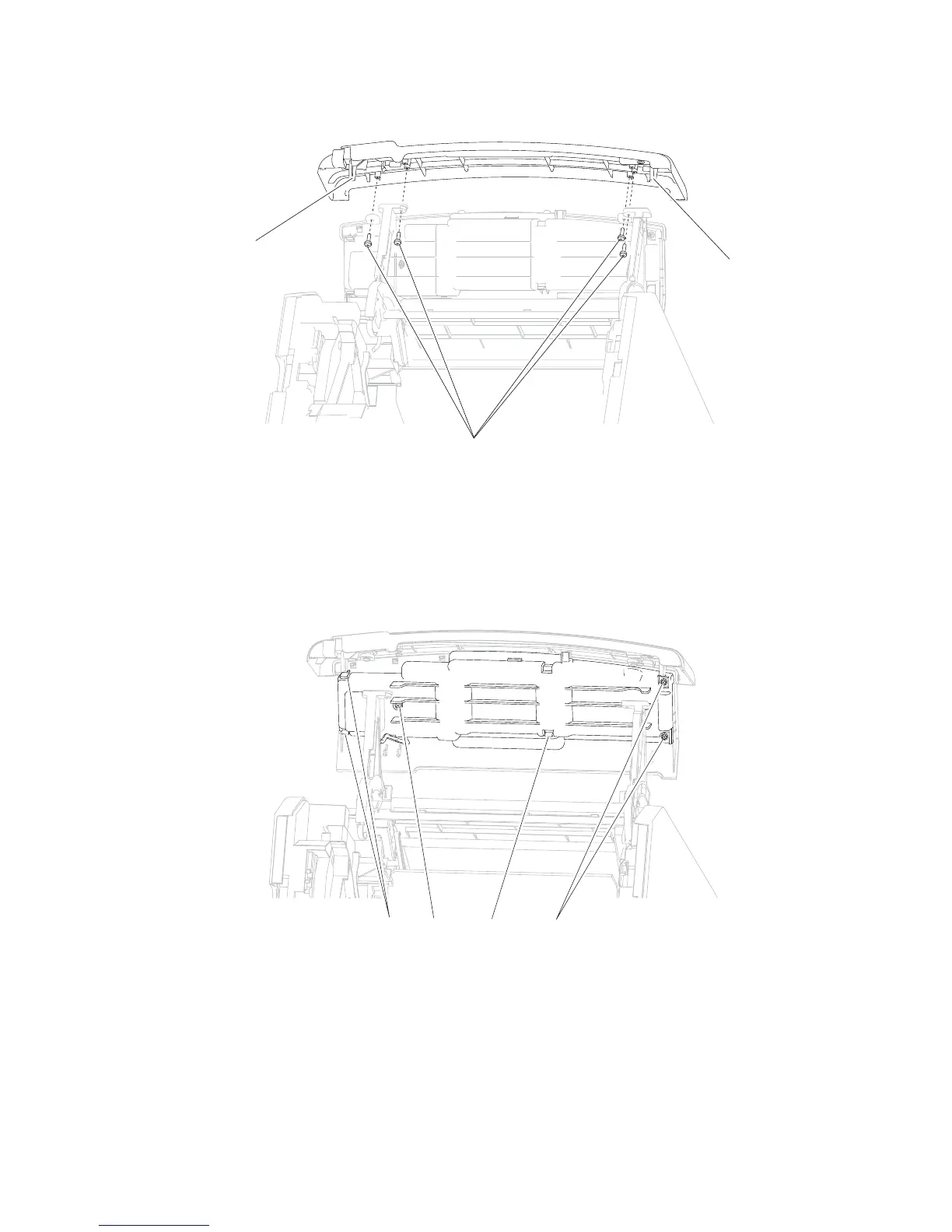

3. Release the two hooks (B).
4. Remove the operator panel latch assembly.
Operator panel door assembly removal (T650, T652, T654)
1. Remove the operator panel latch assembly. Go to “Operator panel latch assembly removal (T650, T652,
T654)” on page 4-36.
2. Remove the three screws (A) securing the cover to the assembly.
3. Release the three hooks (B) securing the cover to the assembly.
B
B
A
AABB
