Repair information 4-149
4062-XXX

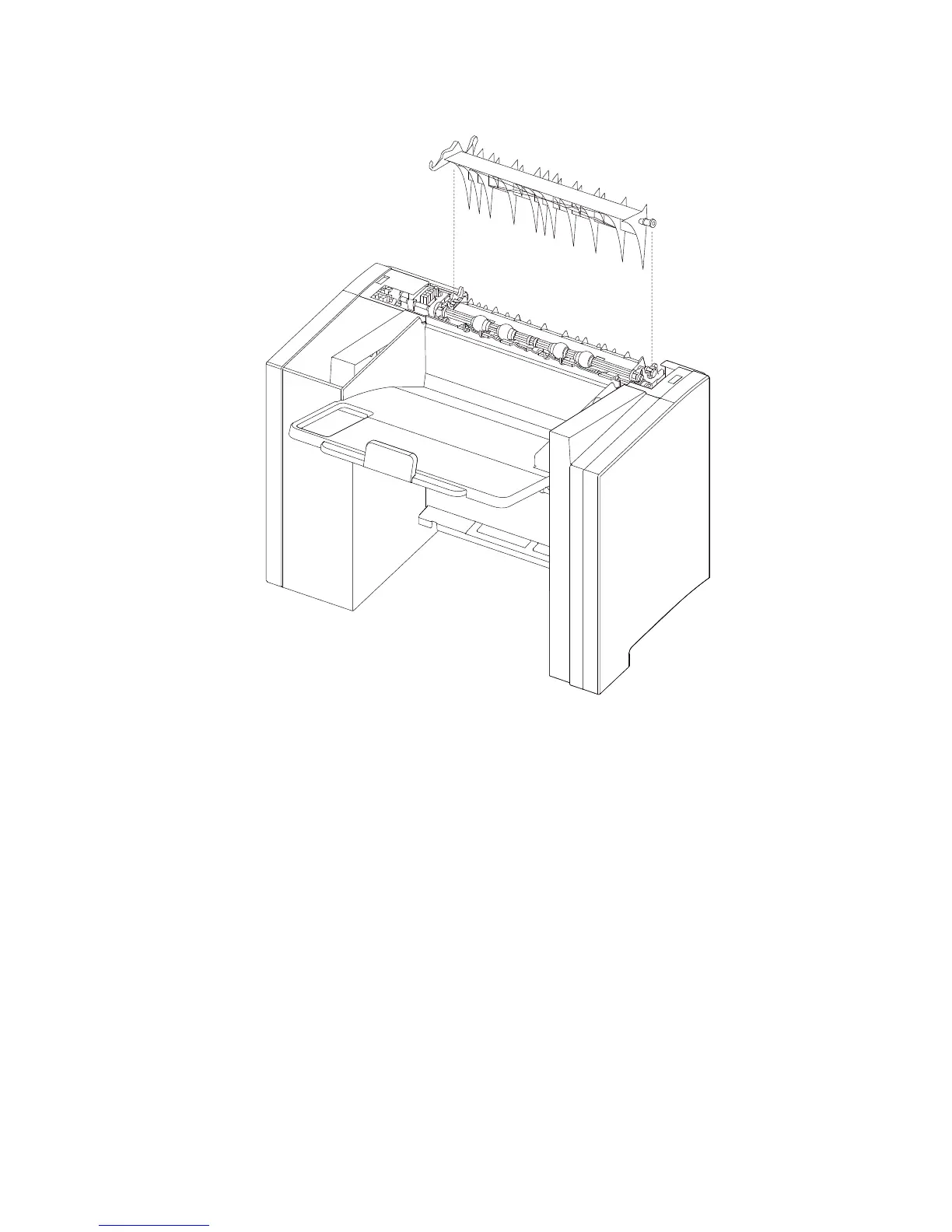

3. Unsnap each side of the deflector gate and remove.
High capacity stacker sensor (pass through) removal
1. Remove the rear door assembly. Go to “High capacity stacker rear door assembly removal” on
page 4-138.
2. Using needle-nose pliers or your finger, pull out and downward on the sensor (pass through) until the
sensor unsnaps.
3. Remove the high capacity controller card cover panel. Go to “High capacity stacker controller card
cover panel removal” on page 4-142.
