Lexmark T650n - Redrive Motor Assembly Removal (T652, T654)

Repair information 4-55
4062-XXX
Redrive motor assembly removal (T652, T654)
1. Remove the laser cover. Go to “Laser cover removal (T650, T652, T654)” on page 4-20.

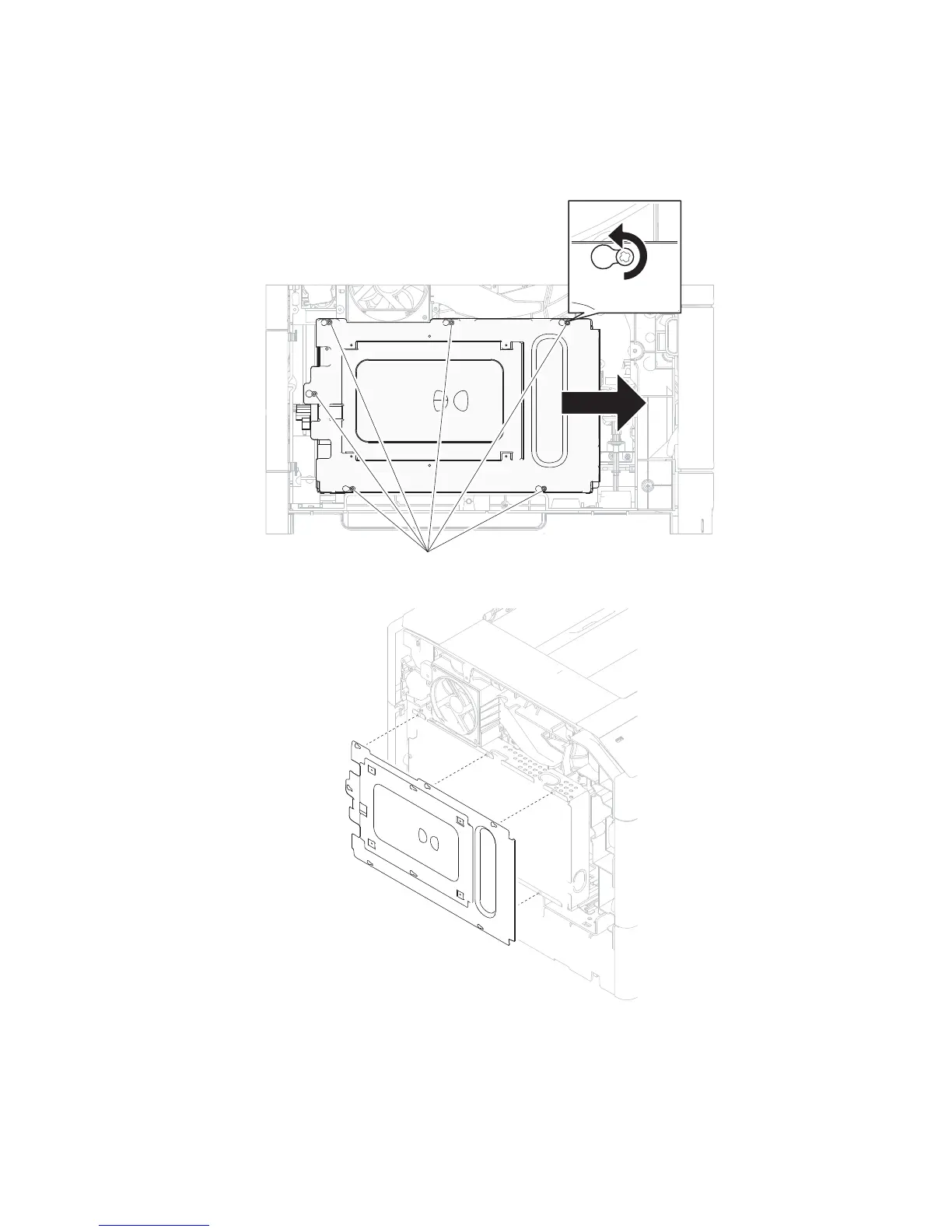

2. Remove the six screws (A) securing the metal cover to the machine.
3. Remove the metal cover.
A
