Standalone MX DVI-Plus family
User’s Manual
Section 4. Operation Page 19 / 89
AUTOTAKE mode

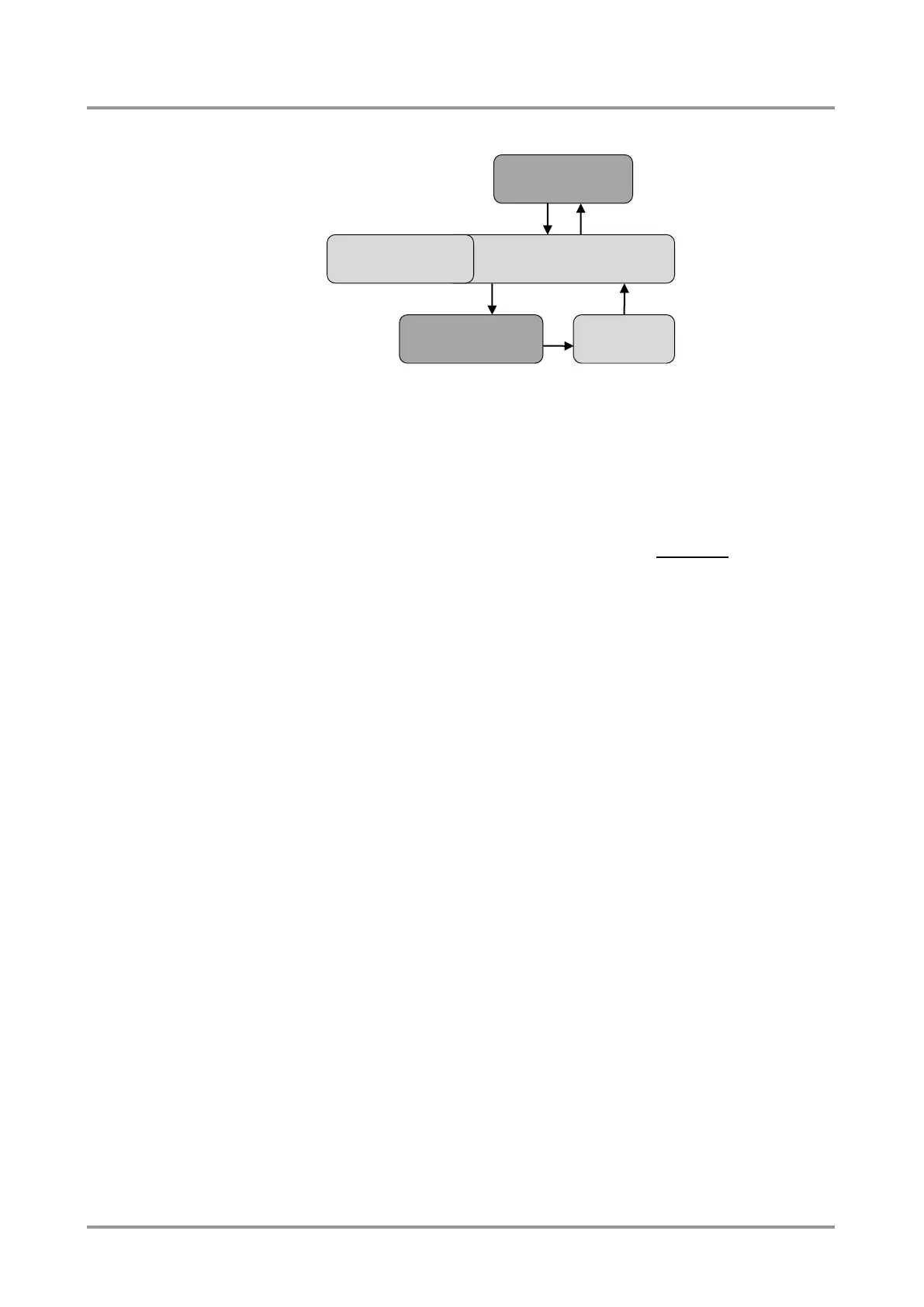

Figure 4-2. Switching flowchart in AUTOTAKE mode
4.2.7. Preset operations
Lightware matrices have 32 user programmable presets. Each preset stores a
configuration regarding all input connections and mute state for all outputs. All presets are
stored in a non-volatile memory; the router keeps presets even in case of power down.
Memory numbers are assigned to source buttons. The higher numbered presets are
accessible only through software control.
Info: Preset save action always stores the current configuration for all outputs including mute
state, but ignoring lock state.
Info: Loading a preset modifies all output states that are not currently locked.
Saving a Preset in TAKE mode
Step 1. Create the desired connections which have to be saved.
Step 2. Press and release the SAVE PRESET button.
Step 3. Press and release a source button according to the desired memory address
(source 1 to 16 or 12 or 9).
Step 4. Press and release TAKE button; the configuration is stored in the selected memory.
Loading a Preset in TAKE mode
Step 1. Press and release LOAD PRESET button.
Step 2. Press and release a source button according to the desired memory address
(source 1 to 16 or 12 or 9).
Step 3. Press and release TAKE button. Now the selected preset is loaded.
Saving a Preset in AUTOTAKE mode
Step 1. Create the desired connections which have to be saved.
Step 2. Press and release SAVE PRESET button.
Step 3. Press and release a source button according to the desired memory address
(source 1 to 16 or 12 or 9). The configuration is stored in the selected memory.
Loading a Preset in AUTOTAKE mode
Step 1. Press and release LOAD PRESET button.
Step 2. Press and release a source button according to the desired memory address
(source 1 to 16 or 12 or 9). Now the selected preset is loaded.
destination button
pressed
viewing last destination’s
connection
select or deselect
source
