Standalone MX DVI-Plus family
User’s Manual
Section 5. Software control Using Lightware Device Controller (LDC) Page 31 / 89

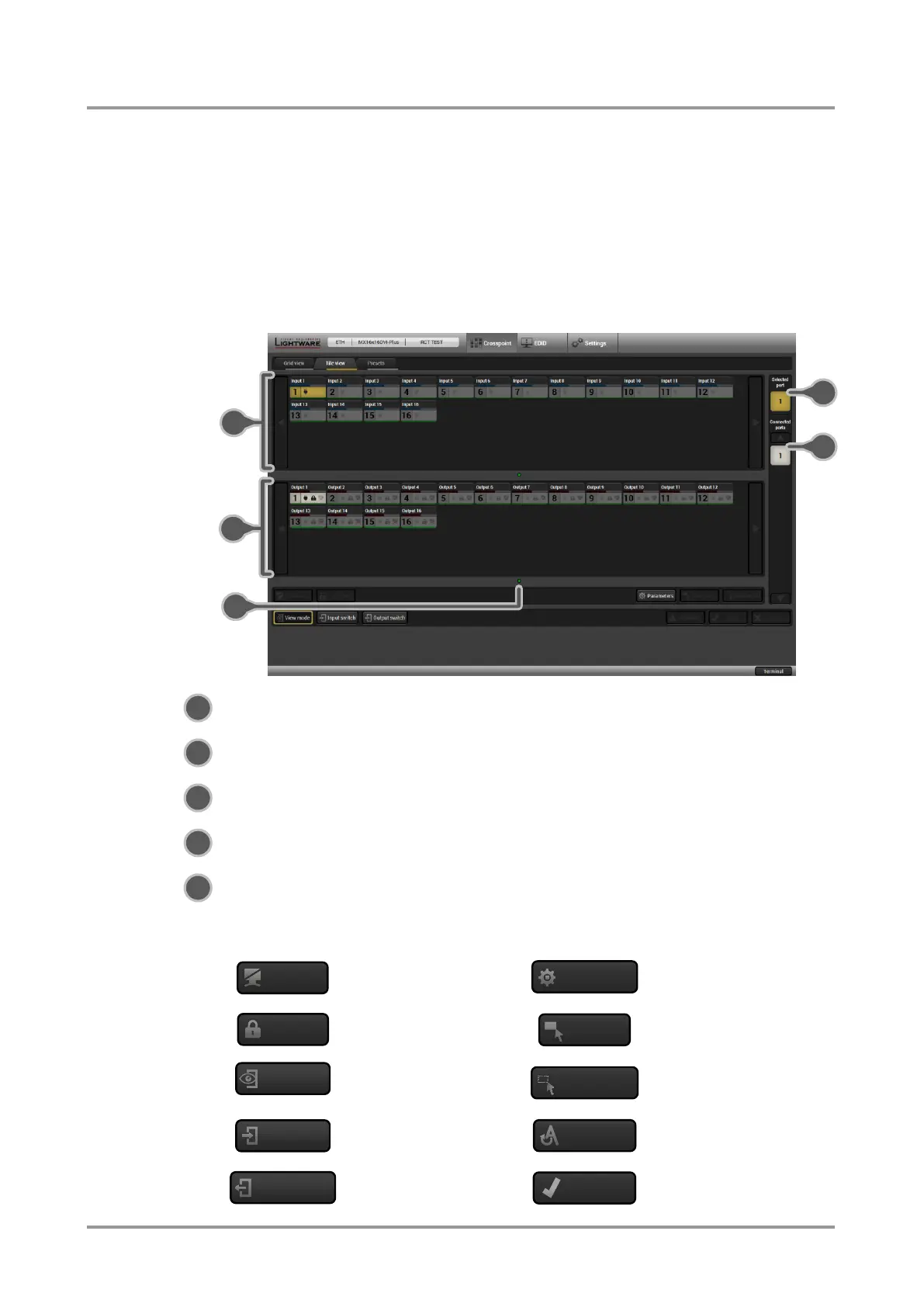

5.6. Crosspoint menu, Tile view
In Tile view the input and output ports are displayed by tiles, which additionally shows the
most important port and signal information. Thus, user can check the status of many ports
at the same time without clicking on a port or opening port settings window.
Three display modes are defined in Tile view for matrices:
View mode,
Input switch mode and
Output switch mode.
Input ports Each tile represents an input port.
Output ports Each tile represents an output port.
Page indicator Current page is displayed with green dot; if other pages exist,
they are displayed with black dots.
Selected port Last selected port is displayed with yellow background on the
port bar. Press the button to open port settings window.
Connected port(s) Those ports are listed (with white background) on the port bar,
which are connected to the Selected port.
Control buttons
Mute or unmute
selected output port(s)
Open port settings
window
Lock or unlock
selected output port(s)
Select all ports (only in
output switch mode)
Activate View mode
Deselect all ports (only
in output switch mode)
Activate Input switch
mode
Toggle Autotake mode
ON/OFF
Activate Output switch
mode
Execute crosspoint
changes in Take mode
Lock
Mute
View mode
Input switch
Output switch
Parameters
Select All
Deselect All
Autotake
Take
1
3
4
5
2
2
3
4
5
1
