5.8. EDID menu
Advanced EDID Management can be accessed by selecting the EDID menu. There are
two panels: left one contains Source EDIDs, right one contains Destination places where
the EDIDs can be emulated or copied.
,

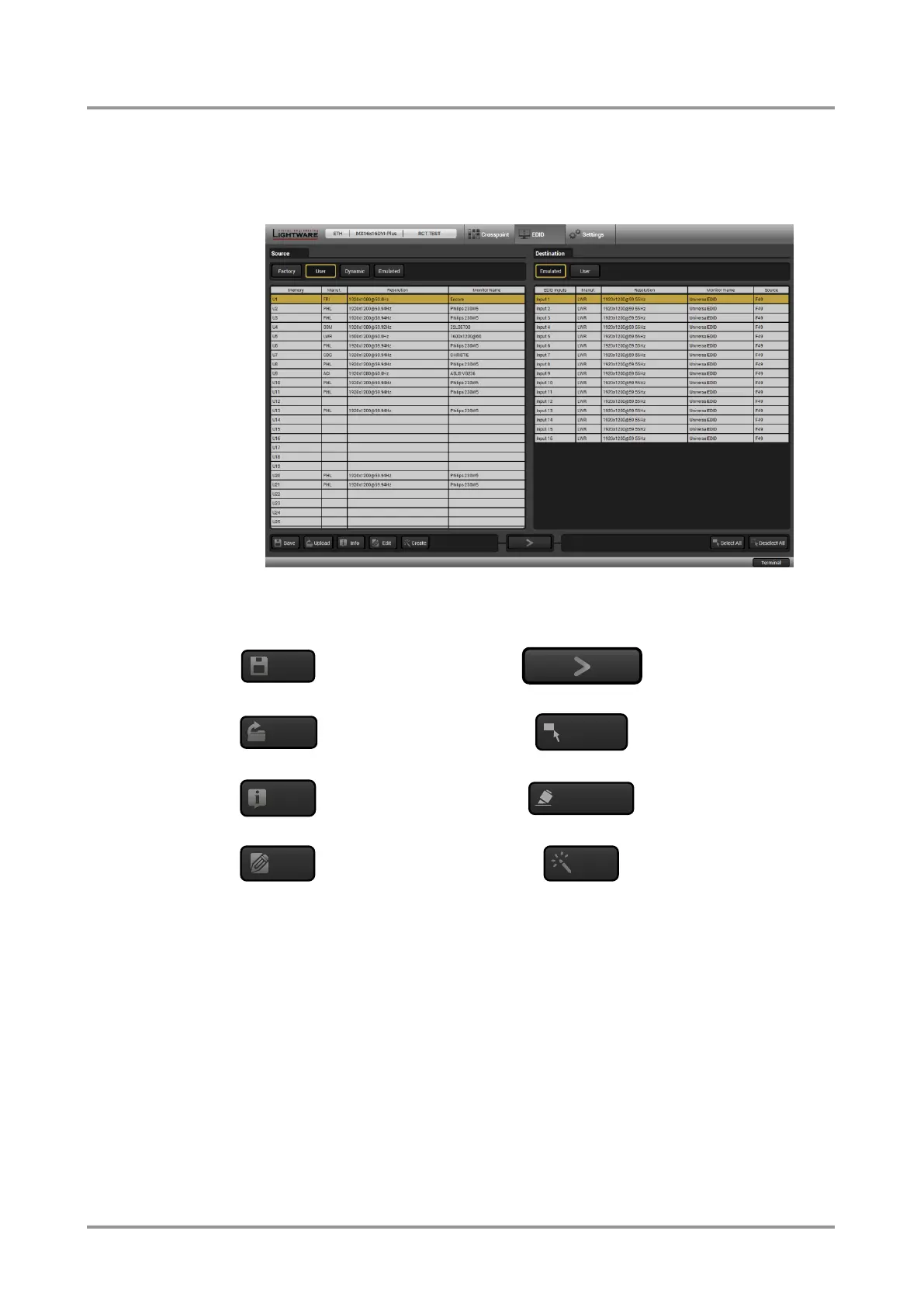

Figure 5-3. EDID menu
Control buttons
Exporting an EDID
(save to a file)
Executing EDID
emulation
(Transfer button)
Importing an EDID
(load from a file)
Selecting all memory
places in the right panel
Display EDID
Summary window
Selecting none of the
memory places in the
right panel
Opening Advanced
EDID Editor with the
selected EDID
Opening Easy EDID
Creator
5.8.1. Sources and Destinations
The EDID memory consists of four parts:
Factory EDID list shows the pre-programmed EDIDs.
User memory shows the memory locations which can be used by the user to save custom
EDIDs.
Dynamic EDID List shows the display devices connected to the device's outputs. The unit
stores the last display devices’ EDID on either output, so there is an EDID shown even if
there is no display device attached to the output of the transmitter at the moment.
Emulated EDID list shows the currently emulated EDID for the inputs. The source column
displays the memory location that the current EDID was routed from.
