11. FREE STATIONING
The Station Point Coordinates are calculated from the different known points.
To gain the Coordinates, at least two H. angles and one distance or three H. angles
are required.
If not so, the error message of “Not enough data to Calculate! 2 angles and 1 distance, 3
angles are required” appears.
First, input the height of the instrument (IH).
11.1 Station setup [By Rectangular Coordinates]
Press [F4] [FUNCTION] of the LinertecExpress to view the “LINERTEC FUNCTION”
screen.Select［STATION］and press [ENT] or［SELECT］ to view the STATION screen.
Select 1.RECTANGULAR COORD. and press
[ENT] to view the IH screen.
116

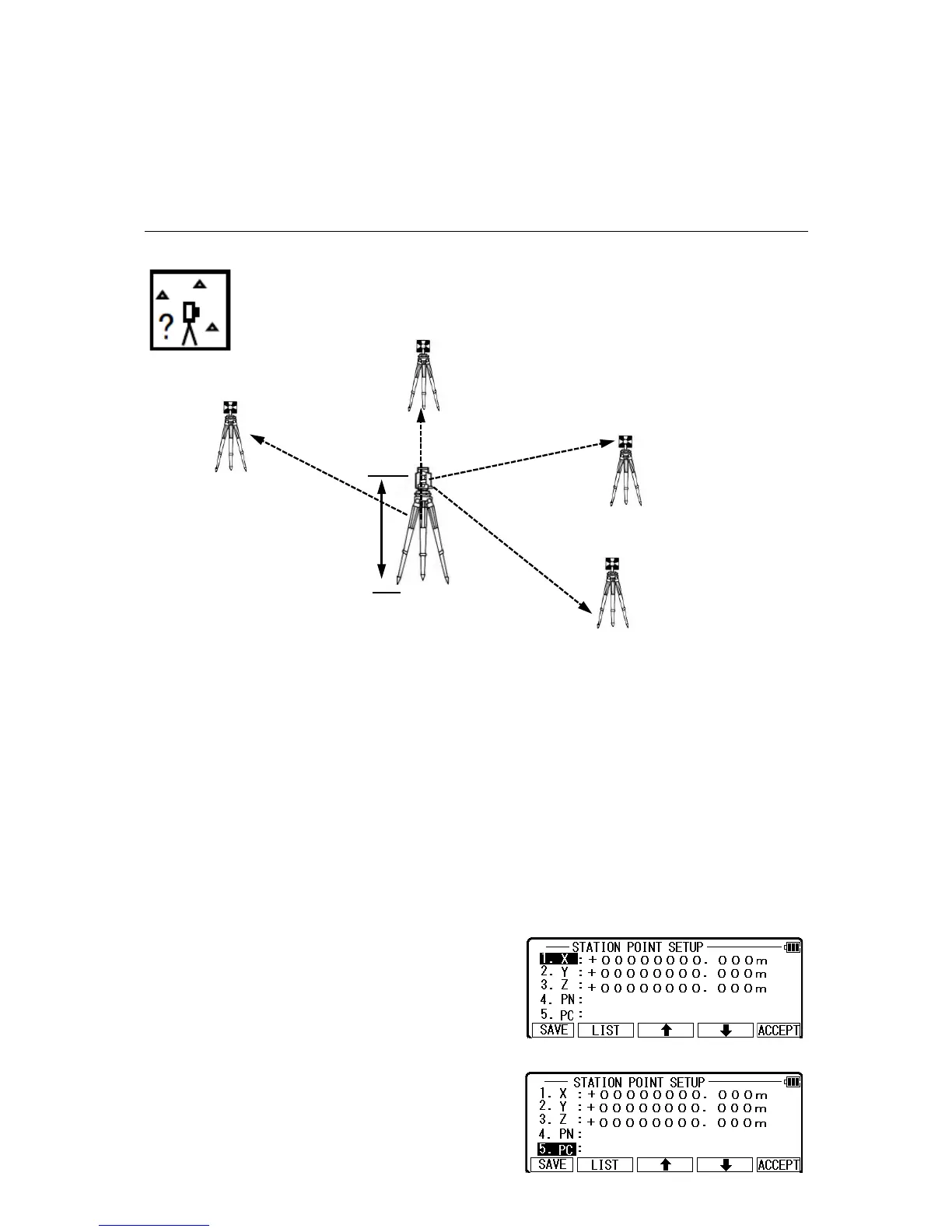

Point 1
Coordinate
Station Point Coordinate
Point 2 Coordinate
Point 3
Coordinate
Point 4 Coordinate
IH
