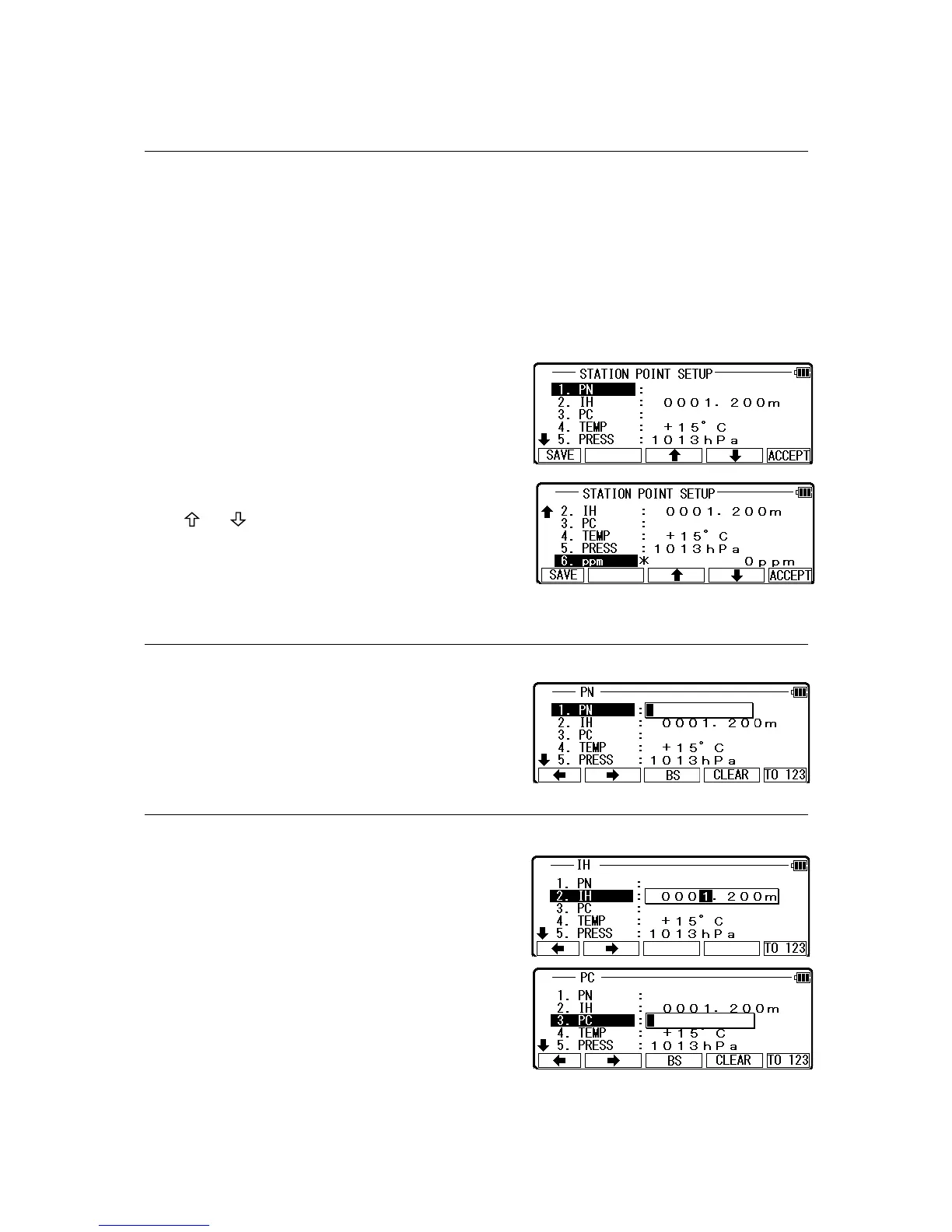

11.2 Station setup [By Polar Coordinates]
The same Point Name of the plural polar points can be saved.
Press [F4] [FUNCTION] of the LinertecExpress screen to view the “LINERTEC
FUNCTION” screen.
Select［STATION］and press [ENT] or［SELECT］ to view the STATION screen.
Select 2. POLAR COORD. and press [ENT] to view
the STATION POINT SETUP screen.
The [ ] / [ ] mark is used to scroll up / down.
11.2.1 Point Name input
Select 1.PN to display PN input screen.
Input PN value. Press [ENT].
11.2.2 IH, TEMP, PRESS, ppm and PC input
Input IH value.
Press [ENT].
Input the PC.
Press [ENT] to view and input the PC, Point Code,
screen.
If Point Code exists, you can easily select it from the
list or edit one of them after pressing [ENT].
For using Point Code List, please refer to “10.3.1 Point Code”.
122
