Linertec LTS-200 Series User Manual

for Station setup after pressing [F5] [ACCEPT]. Horizontal angle of the result coordinates
will be affected to the Station Point for measuring.
11.3.2 Stationing by two known points
(One point must be measured at least to gain the
Station Coordinates.)
Press 3. FREE STATION of the LinertecExpress
screen, and press [ENT] to view the IH input screen.
Input the IH value.
Aim at the Point 1.
Press [ENT] to open the PN, X, Y, Z, PH and PC
input window and input each value.
Then, press [F5] [ACCEPT] to view the MEASURE
screen.
Press[F1]［MEASURE］to measure.
126

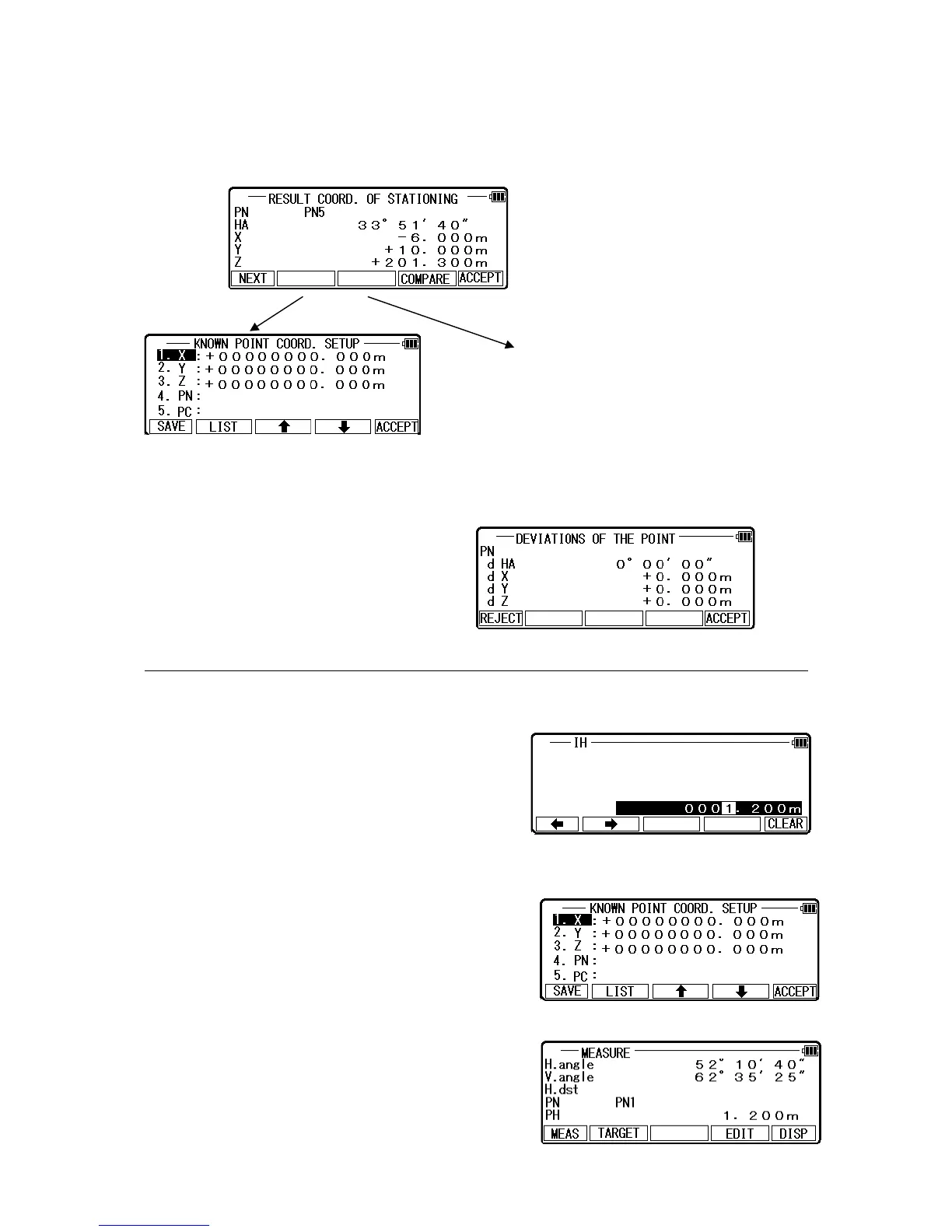

DEVIATIONS OF THE POINT: Four
points or more are needed to view this.
Press [ENT] to view the DEVIATIONS
OF THE POINT screen. The deviations of
X, Y and Z coordinate of each point are
displayed. For each point, you can decide
if you want to accept or reject the point.
PN: Current Point Number
dX: Deviation on the X value
dY: Deviation on the Y value
dZ: Deviation on the Z value
点位 差误
