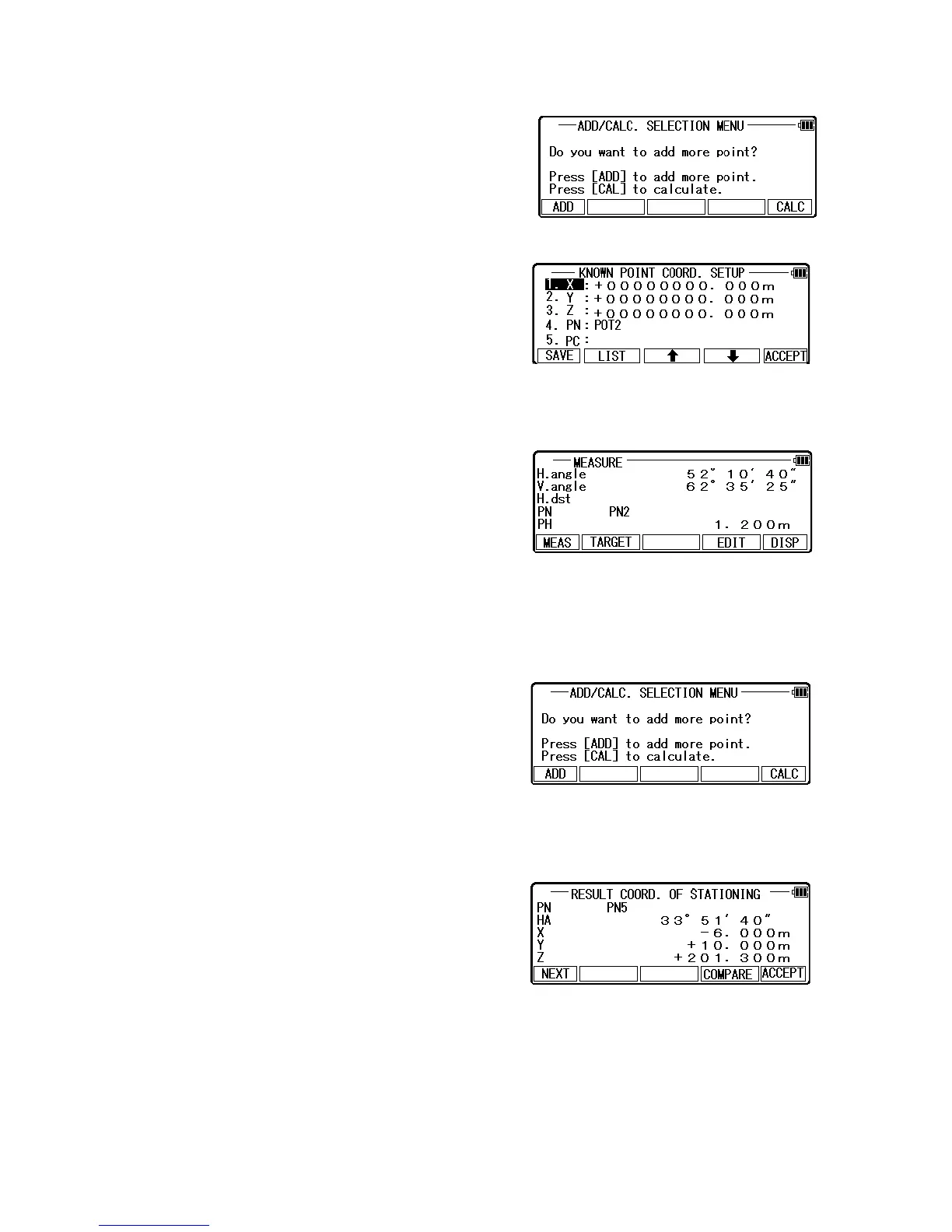

Press [ENT] to view the ADD/CALC. SELECTION
MENU screen.
Press [F1] [ADD] to view the KNOWN POINT
COORD. SETUP screen.
In the same manner, aim at the Point 2.
Press [ENT] to open the PN, X, Y, Z, PH and PC
input window and input each value.
Then, press [ENT] or [F5] [ACCEPT] to view the
MEASURE screen.
Press the [F1] [MEAS] to measure the distance.
Press [ENT] to view the ADD/CALC. SELECTION
MENU screen.
Press [ENT] to view the RESULT COORD. OF
STATIONING.
Press [F5] [CALC]to view the RESULT COORD.
OF STATIONING.
The Station Coordinates are displayed. Result
coordinates of free stationing can be saved
for Station setup after pressing [F5] [ACCEPT]. Horizontal angle of the result coordinates
will
be affected to the Station Point for measuring.
