Linertec LTS-200 Series - Station Orientation

Whichever you select PROCESS TYPE or STRUCTURE TYPE,
Pressing [SAVE] or [ACCEPT] proceeds to next screen

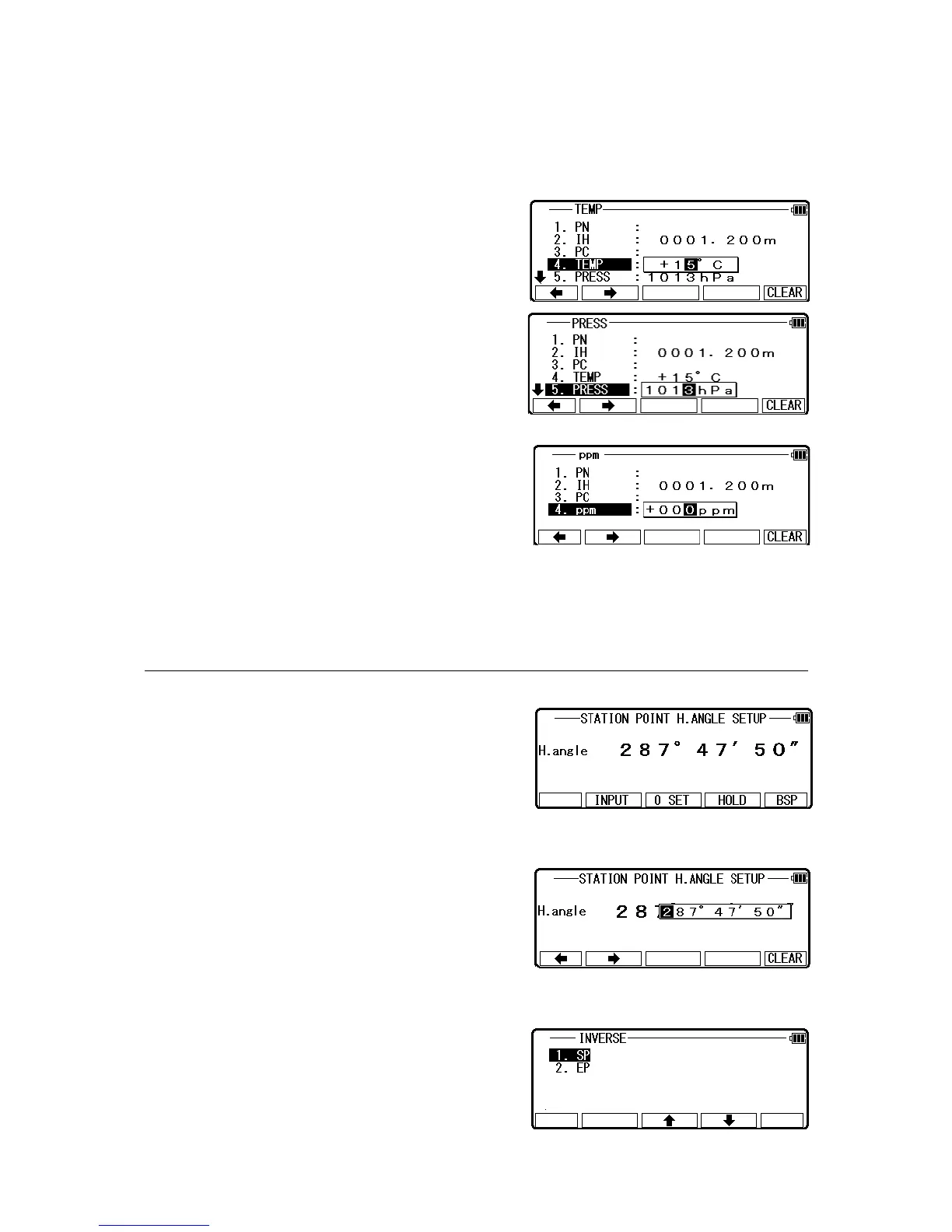

Input the TEMP value.
Press [ENT].
Input the PRESS value.
Press [ENT].
Input ppm value.
Press [ENT].
TEMP, PRESS and ppm input depend on the “Initial setting 1”
(ATM INPUT, ppm INPUT, NIL).
11.2.3 Station Orientation
Press the [F5] [ACCEPT] to view the STATION
POINT H. ANGLE SETUP screen.
Input your desired H.angle.
• ［ F2］[INPUT] Key
Input your desired H.angle.
Please note, that the rotation of the “H.angle”
depends on the rotation setting of
“Coordinate axis definition”.
• ［F3］［0 SET］Key
Press this Key twice to 0 set the H. Angle.
• ［F4］［HOLD］Key
Press this Key twice to hold the current H. Angle.
• [INVERS] key
123
