DISPLAY AND KEYBOARD
• Basic display and keyboard of LTS-200 series are described below, and the function keys
of LinertecExpress are described in “2. ACCESSING LINERTECEXPRESS”.
Operation Key
Key Description
[POWER] ON/OFF of power supply
[ESC] Returns to previous screen or cancels an operation.
[ILLU] Turns the illumination of the LCD display and telescope reticle on
and off.
[ENT] Accepts the selected (highlighted) choice or the displayed screen
value.
[LASER] Displays the laser plummet and the LD point screen when you push
the Laser key.
[Alphanumeric] At the numerical value screen, the numerical value and the sign “.”
displayed are input. The English characters printed right under
numeric of each key are input.
[HELP] Pressing [lLLU]+[ESC] key causes a help menu to appear in
BASE MEASURE or causes a help message to appear.
7

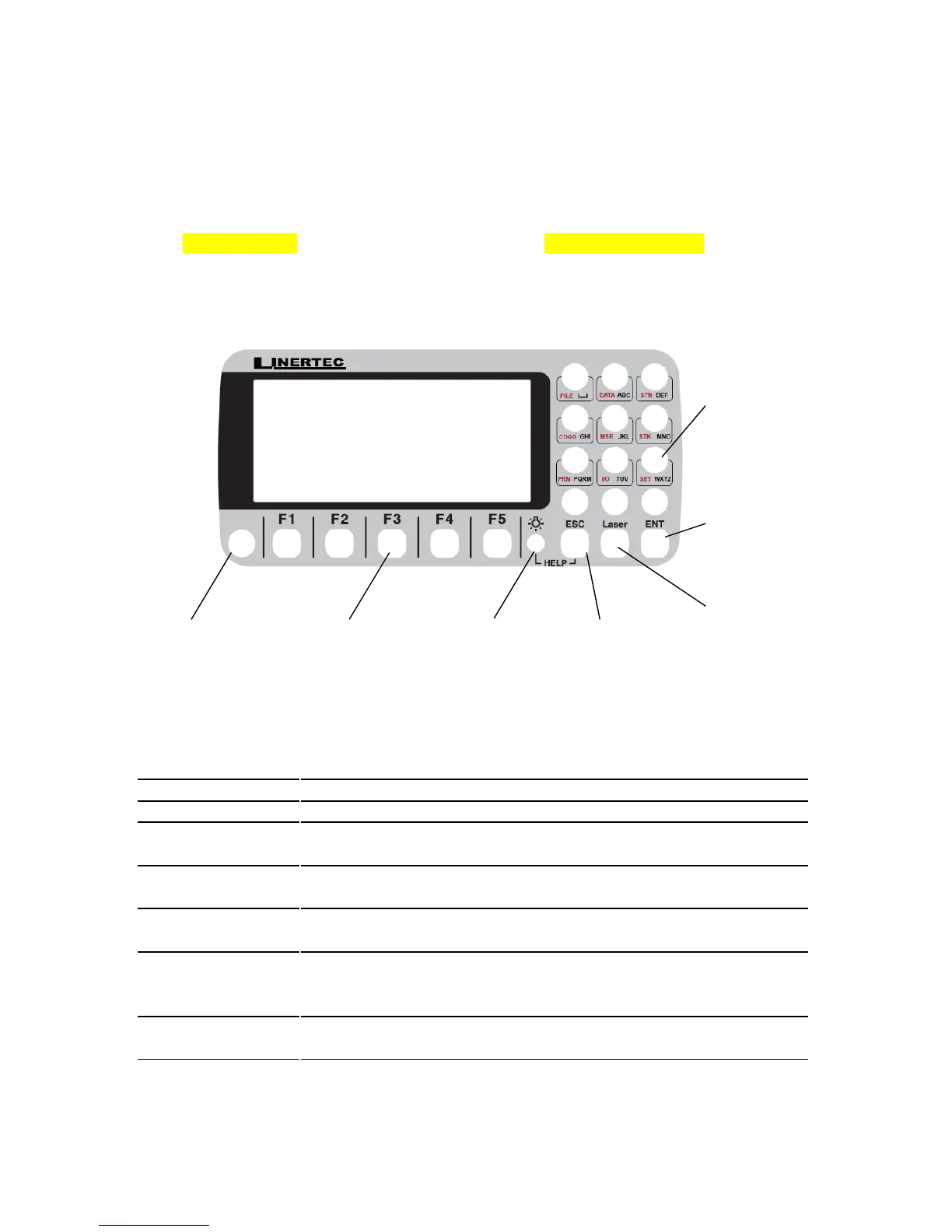

Power Supply Key Function Key Illumination Key ESC Key
Laser Key
Enter Key
Alphanumeric
and +/- key
