Linertec LTS-200 Series User Manual

If you want to calculate direction angle, Press [F5][INVERS] to jump to INVERSE function.
Input SP as Station Point, EP as Back Sight Point
Result angle is set here automatically by pressing
[ENT] at RESULT OF INVERSE screen.
Press [ENT] after aiming back sight point.
Aim at the reference point, then press [ENT] to enter
multiple orientation. For more details, refer to
“11.1.4 Multiple Orientation”. After the multiple
orientation is completed, the screen moves to
MEASURE screen.
11.3 FREE STATIONING
11.3.1 Stationing by more than 3 known points
4 known points stationing (For example)

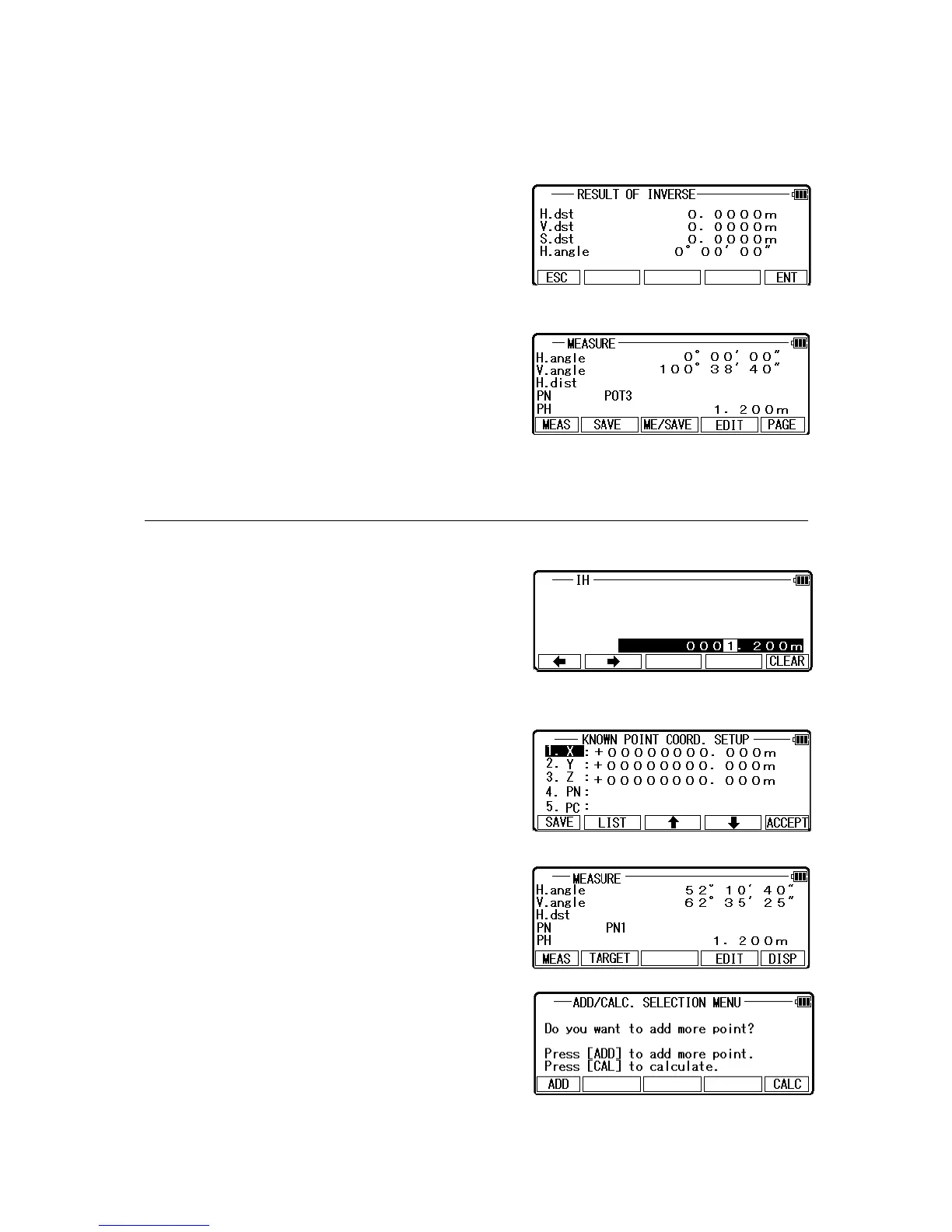

Press 3. FREE STATION of the LinertecExpress
screen, and press [ENT] to view the IH input screen.
Input the IH value.
Aim at Point 1.
Press [ENT] to view the KNOWN POINT
COORD.SETUP screen.
Press [ENT] to open the PN, X, Y, Z and PH input
window and input each.
Then, press [F5] [ACCEPT] to view the MEASURE
screen.
Press [ENT] to view the ADD/CALC. SELECTION
MENU screen.
(Measuring is not needed. Just press [ENT].)
