[Coordinate data] X, Y, and Z coordinate data
A 6-digit integer part and a 3-digit fraction part represent coordinate data.
[BCC]
To detect a data transmission error, BCC is calculated per block and attached to
the end of data.
[L/F code] use CR/LF
BCC is calculated by the following calculation method
BCC = ΣA – ( B × 40H ) 20H
ΣA = Each character of a block that contains the sum of the ASCII code
B = ΣA÷40H (truncate decimal places)

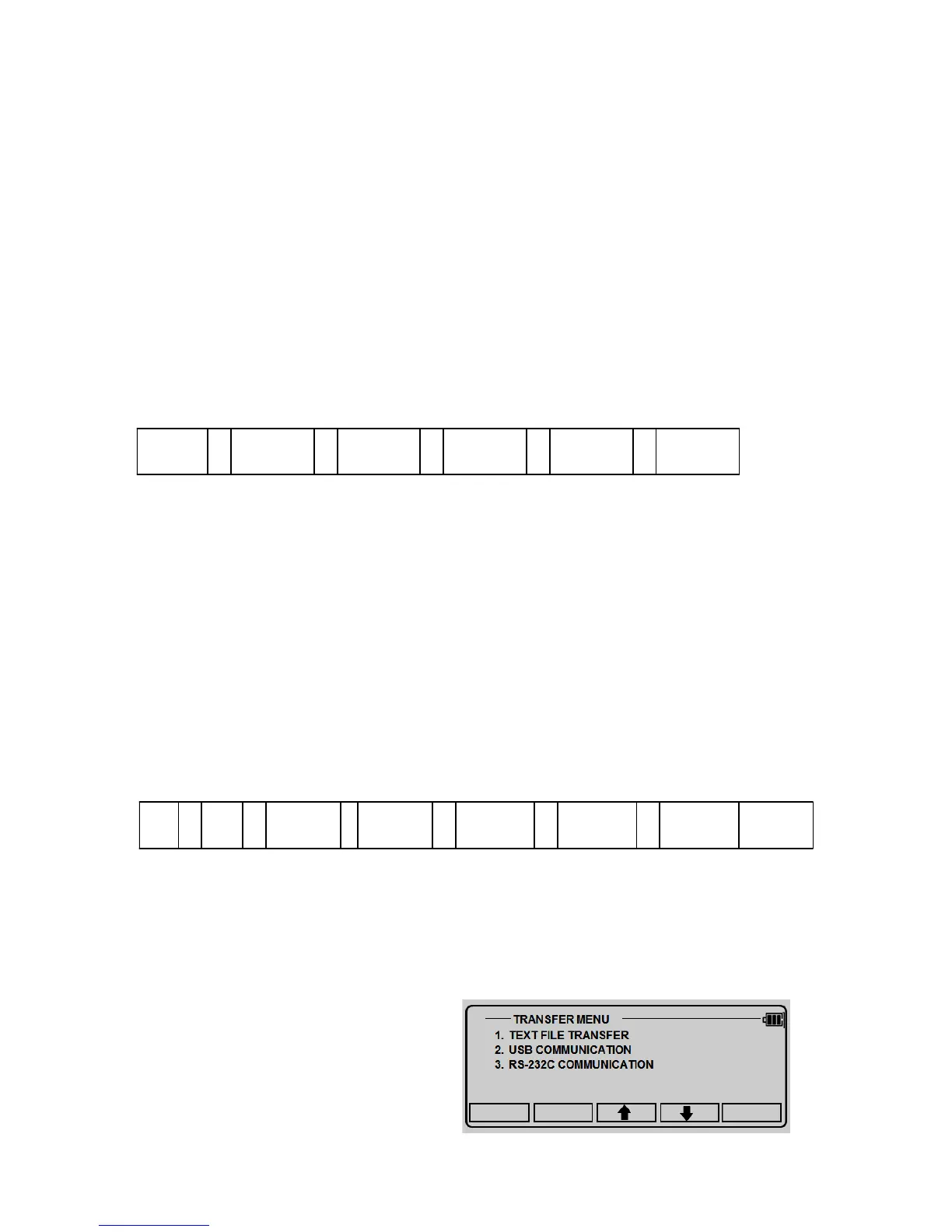

2. CSV
[P. Name]
The P. Name is handled as text data, if it is input.
[Coordinate data]
X, Y, Z Coordinate data.
Represented by a 6-digit integer part and a 3-digit fraction part.
[P. Code]
The P. Code is handled as text data, if it is input.
[L/F code]
use CR/LF.
3. ExtCSV
[31] Fixed
NOTE: This format is used when sending PointCodeList. Received files are
automatically saved in the “PointCodeList” of Job File.
4. AUX
Format of AUX is used the same as
that
of DC1.
22
P.Name ,
X
Coord.
,
Y
Coord.
,
Z
Coord.
, P.Code
, L/F
code
31 , No. ,
P.
Name
P.
Code
,
X
Coord.
,
Y
Coord.
, Z
Coord.
L/F
code
